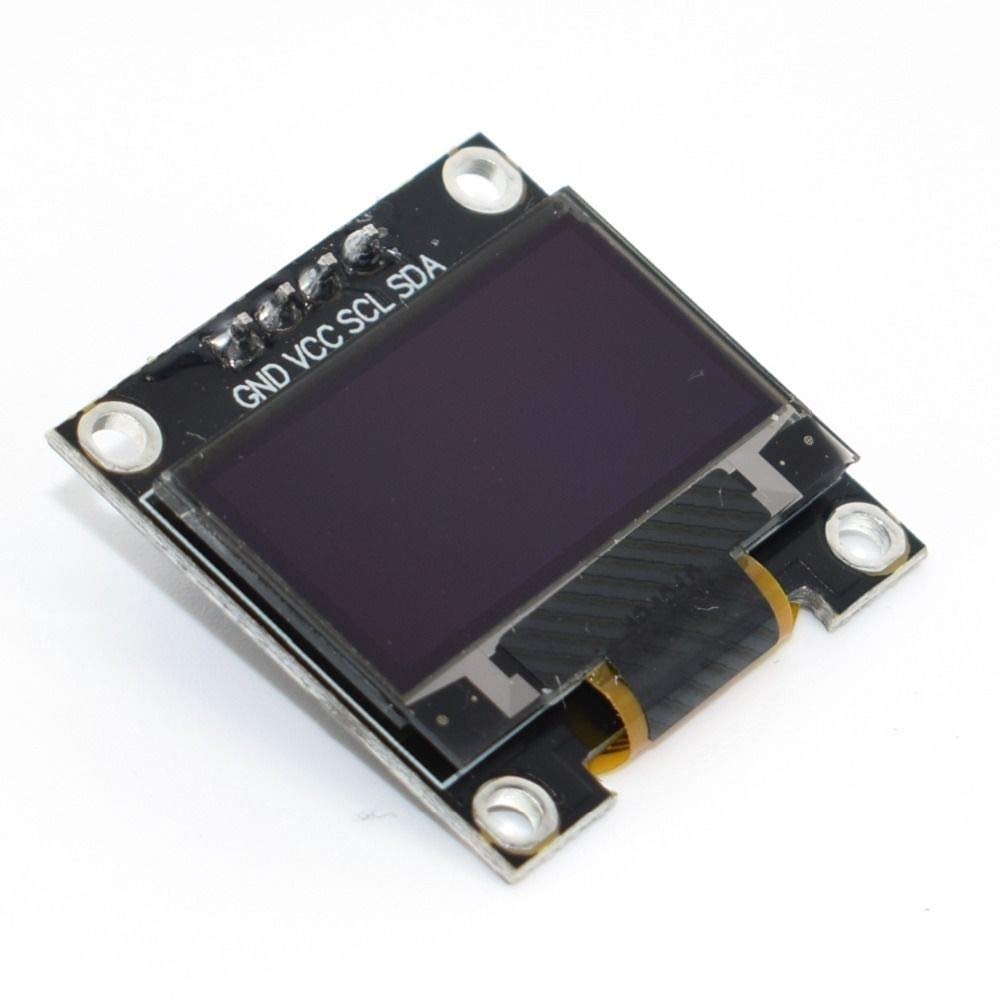

0.96 inch IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board GND VCC SCL SDA 0.96" for arduino

Description

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70
Character Colors: White
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306

Notes:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness

Package Included:

1PC*128x64 Yellow Blue LED display module for Arduino
