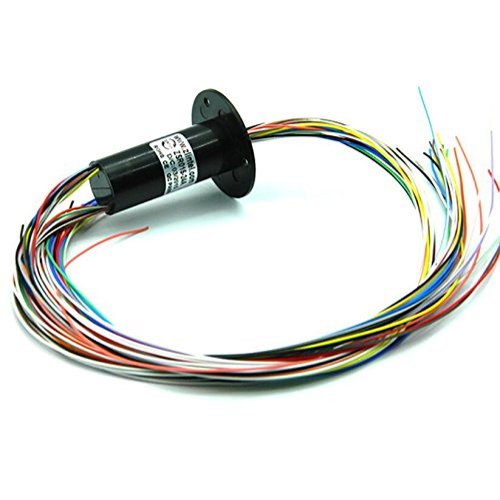

1 pcs lot 24-pin cap-type conductive slip ring Multi-channel can be connected in parallel conductive ring collector ring

Description

Number of channels 24 Rated current 2A / road larger current can be customized Rated voltage 240VAC / DC Speed 0-200rpm Outside diameter 15mm Contact material Precious metal Shell material engineering plastics Dynamic resistance minimum 1m Electrical noise <10m, 50mA, 5RPM Wire size AWG16 silver plated Teflon Compressive strength 500VDC @ 50Hz, 10s Wire length standard 250 mm Insulation strength 500m @ 500VDC, 10s Protection class IP54 Operating temperature -20 ~ +60 Operating humidity 10% -85% RH Earthquake level MIL-STD-810E
