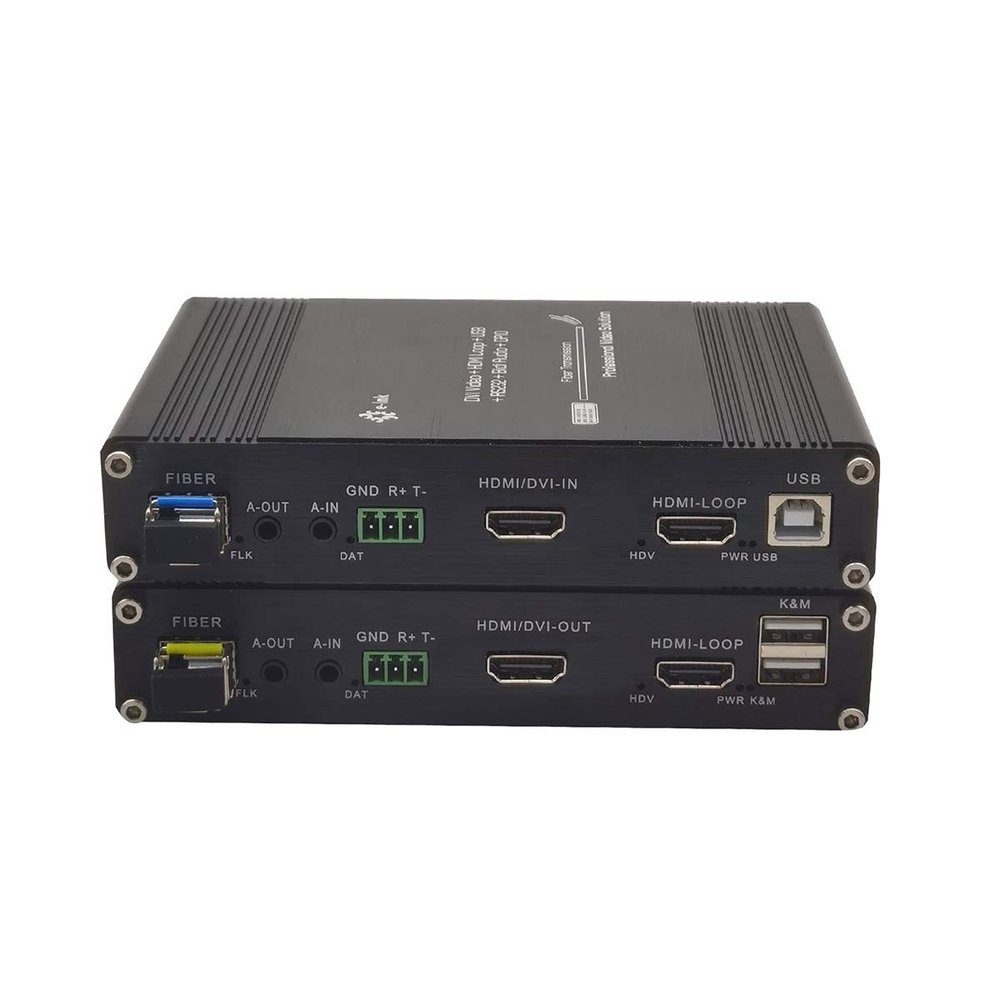

1080P HDMI KVM Fiber Extender Multifunction HDMI Video Optical Transceiver Full HD SM 20km HDMI to Fiber Converter Single-Mode Support USB Mouse Keyboard RS232 GPIO 3.5mm Bidirectional Stereo Audio

Description

• Support USB Mouse and Keyboard The HDMI KVM Fiber Converter with KVM Function, you can control the PC or other devices with USB Mouse and Keyboard from remote end. Not Support Other USB device.
• Support Bi-Di Stereo Audio The HDMI Optic Extender with Bidirectional 3.5mm socket on both Transmitter and Receiver. You can do Real-time intercom with others on the other side far away.
• Support Full HD 1080P Resolution The HDMI Fiber Extender support up to 1920*1200@60Hz ; Special support 1600*1200@60HZ. Compatible backwards with lower resolution.
• Support Backward RS232 The HDMI Converter support Serial RS232 Signal, you can control the rs232 serial device from remote side.
• Transmit over Fiber HDMI Fiber Optical Converter transmit over signle core signle mode fiber. Uncompressed transmission Up to 12.5 Miles with no Latency. You can see the video or talk to others fluently.

Descriptions: TheLNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals over one fiber optic cable, it supports high resolution up to1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender used for wide range of applications requiring long distance transmission. Features: Support video resolution up to 19201200@60Hz; Special support 16001200 @60HZ Support USB Mouse and Keyboard; Support external Bidirectional stereo audio transmission; Compliance with HDMI1.4B 3D and HDCP 1.2 standard; Support Serial RS232 signal unidirectional transmission, baud rate self-adaptive; Support general-purpose input/output (GPIO) signal; Transmission distance up to 12.5 Miles (20km); High compatibility, auto-match source and display device; Simple to use, plug and play; Specifications Maximum pixelclock: 165MHz Maximum datarate: 3Gbps Connector: Female HDMI type A HDMI Cable Range: <16.5ft (5 Meters) Audio Interface:3.5MM external stereo audio, Bidirectional Fiber type: Simplex LC, Single-mode Single Core Supported Resolution: 19201200@60Hz, 1080P@50/59.95/60Hz, 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz, Special support 16001200 @60HZ GPIO: Industrial terminal K/M (USB): To PC- USB Type-B; To keyboard and mouse- USB-A RS232 Baud rate: Backward Self-adaptive, Max:115200bps Operating Temperature: -5Degree C ~ +60Degree C Power input: 12VDC Dimensions: 6.61x 4.53x1.1 (inch) Package: HDMI KVM Fiber Converter Transmitter x1 HDMI KVM Fiber Converter Receiver x1 SFP module x2 Power adapter x2 HDMI KVM Fiber extender User Manual
