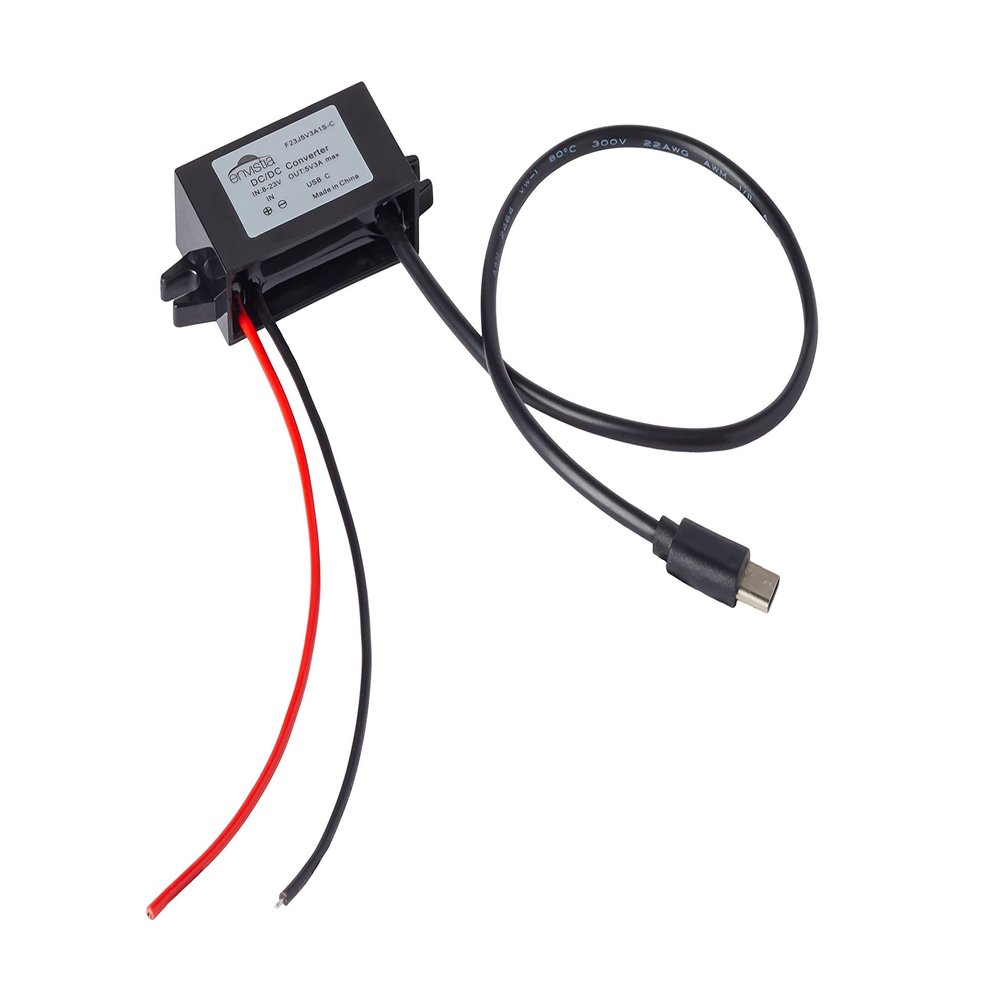

12V (8-23V) in to 5V Out DC-DC Converter Module 3A 15W with USB-C Output

Description

• Converts a 12V input voltage (will operate with any input voltage from 8V to 23V) to 5V DC output at up to 3A
• USB-C output cable - compatible with many cell phones and personal electronics.
• Up to 15W output power (5V at 3A)
• Fully sealed and waterproof (IP68 Rating)
• Overload / over-current / over / low voltage protection, stable performance
• Excellent for converting from a car's 12V battery to 5V for USB-powered devices

This miniature DC-DC step-down converter module converts an 8V to 23V (nominally 12V) DC input to 5V DC output at up to 3A current (15W maximum). It features a USB-C output connector, compatible with many cell phones and personal electronics. Specifications: Epoxy sealed waterproof housing (IP68) Lightweight, compact, convenient to use and transport Non-isolated With overload / over-current / over / low voltage protection, stable performance Auto recovery Input voltage: DC 12V nominal, will operate on any input voltage from 8V to 23V DC Maximum input current at 3A output: Approximately 1.25A at 12V input, 1A at 15V input Output voltage: 5V Maximum output current: 3A Maximum Output Power: 15W Efficiency: 85-90% typical, 95% max Voltage regulation: 1% Load regulation: 2% Ripple (Full load test): <150mV No-load current: <100mA Operating temperature: -25C - +60C Size (L x W x H): 46 * 27 * 14 mm / 1.81" x 1.04" x 0.55" (Length including mounting tabs is 64mm / 2.5") Weight: 36g / 1.3oz Case color: Black Waterproof rating: IP68 Input wire length: 13.5cm / 5.3" (approx) Output cable length: 33cm / 13" (approx) Output connector: USB-C
