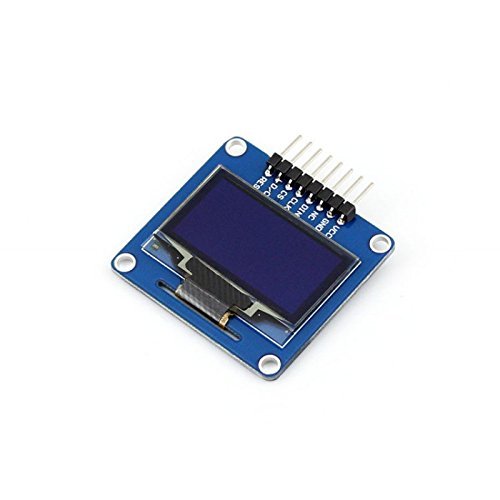

1.3inch OLED(A) Compatible with Raspberry Pi/Jetson Nano/Arduino/STM32 128*64 Resolution 3-wire/4-wire SPI I2C Interfaces Curved/Horizontal Pinheader

Description

• 1.3inch OLED, SPI/I2C interfaces, curved/horizontal pinheader
• Hardware platforms such as RPi/Jetson Nano/Arduino/STM32
• Operating Voltage: 3.3V/5V;Communication Interface: 3-wire SPI, 4-wire SPI, I2C
• Resolution: 128*64 (Pixel);Display Size: 14.7Hx 29.42V(mm);Pixel Size: 0.21 x 0.21 (mm);Dimension: 40.5 x 37.5 (mm)
• Operating TEMP. (): -30~70;TORAGE TEMP. (): -30~80;isible Angle: >160

Introduction
1.3inch OLED, SPI/I2C interfaces, curved/horizontal pinheader

Specification
Operating Voltage: 3.3V/5V
Communication Interface: 3-wire SPI, 4-wire SPI, I2C
Screen Types: OLED
Driver Chip: SH1106
Resolution: 128*64 (Pixel)
Display Size: 14.7Hx 29.42V(mm)
Pixel Size: 0.21 x 0.21 (mm)
Dimension: 40.5 x 37.5 (mm)
Display Color: Blue
Operating TEMP. (): -30~70
STORAGE TEMP. (): -30~80
Visible Angle: >160

Package Content
1.3inch OLED (A) x 1
