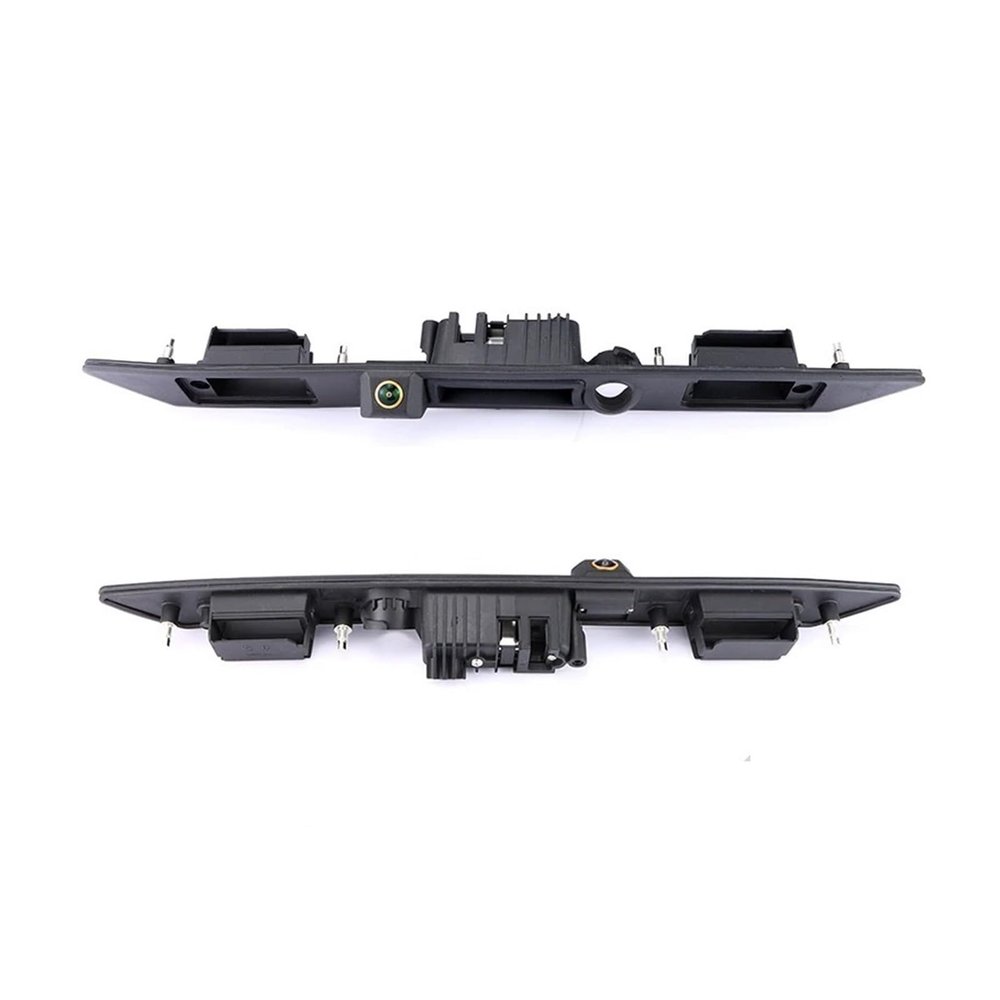

170 Degree CVBS AHD 1080P Vehicle Trunk Handle Switch Reverse Backup Camera,Compatible With Audi A3 A4 A6 B6 B7 S3 S6 A8 S8 RS4 RS6 A5 Q7(AHD1080P-175Deg)

Description

• 170 Degree CVBS AHD 1080P Vehicle Trunk Handle Switch Reverse Backup Camera,Compatible With Audi A3 A4 A6 B6 B7 S3 S6 A8 S8 RS4 RS6 A5 Q7
• With its high-definition camera, this system provides a clear and detailed rear view, enhancing safety and convenience during reversing maneuvers.
• The integrated CanBus technology ensures smooth and efficient communication with your vehicle's electronics, guaranteeing reliable performance and compatibility.
• Installation is made simple, as it directly replaces the OEM tailgate handle without requiring any modifications, maintaining the vehicle's original aesthetic and functionality.
• Additionally, equipped with infrared night vision capabilities, this camera ensures optimal visibility even in low-light conditions, providing peace of mind and safety in various driving environments.

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time
* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Chip: HD /OV2053HD
* Viewing Angle: 170~175 Degrees Visible Range .
* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)
* Signal Format: NTSC or PAL
* Image Resolution: 92W/200W pixels
* Video Output: AHD Video Signal or CVBS Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens: 14/16MM Fisheye 6 glass Lens .
* Waterproof: IP68 /IP69
* Working Power Supply: DC 12V~24V, 2A
* Working Temperature: -30 C ~ +70C
* Maximum Power: 3W
Tips:
1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
Compatible with Audi A3 A4 A6 B6 B7 S3 S6 A8 S8 RS4 RS6 A5 Q7 2010-2014
==========
View Angle : 170
Guiding Line : Yes
Lens Material : glass
Length of Video Cable : 6M
Shell Material : plastic
Material Type : Abs
Wire or Wireless : Wire
Alarm Ty
