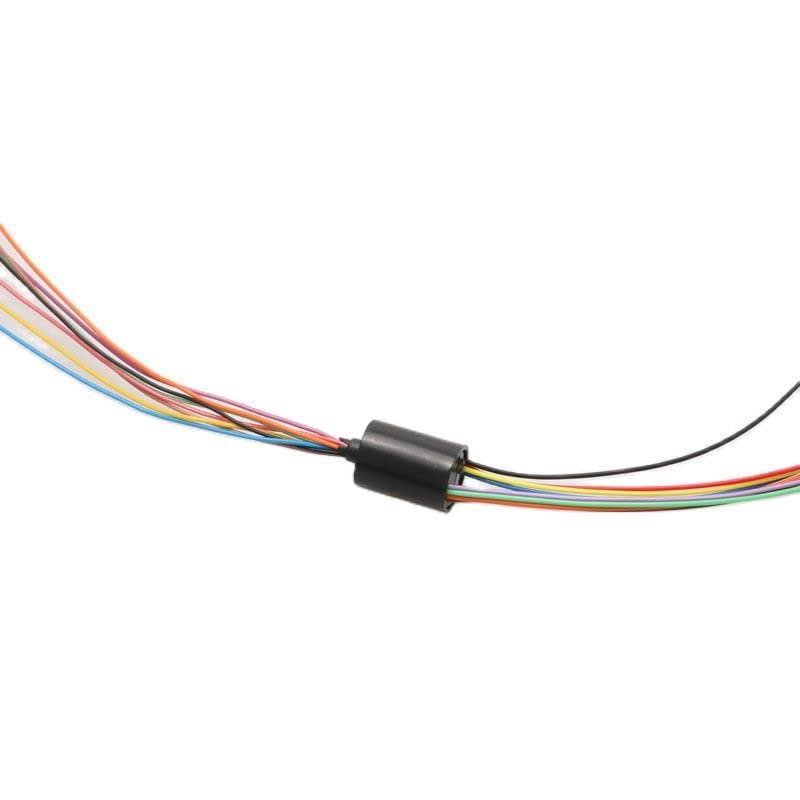

1PC Mini Rotary Slip Ring 2/4/6/8/12/18/24/36 Channels 1-2A Conductive Joint Connectors for Electrical Applications(U Type 8.5mm 8ch)

Description

• Long service life and reliable performance
• Please check your model to ensure that the product is suitable for your machine
• Versatile slip ring options with 2 to 36 channels, perfect for various electrical applications.
• Rated for 1-2A current, ensuring reliable performance for your devices.
• High rotation speed capability of up to 250 RPM, suitable for dynamic applications.
• Durable engineering plastic shell and gold contact material for enhanced longevity and conductivity.
• Operating temperature range of -20 to +60C, designed to withstand diverse environments.

1PCs 2/4/6/8/12/18/24/36 Channels Wires Capsule Slip Ring 1-2A Slipring 8.5/12.5/15.5/22mm Mini Rotary ConductiveJoint Connectors
Specifications:
- Rotation Speed: max. 250rpm
- Channels: 2-36 channel
- Rated Voltage: 220VAC/DC
- Rated Current: 1A,1.5A,2A,10A,15A/channel
- Working Temp.: -20~+60
- Contact Material: gold/gold
- Wire Specification: AWG32, AWG30, AWG28, AWG16
- Wire Length: standard 200mm
- Pressure Strength: >(=)500V/50Hz
- Insulation Resistance: 500M Ohm/500VDC
- Dynamic resistance fluctuation value: minimum 10m Ohm
- Shell Material: engineering plastics
- Working Life: >(=)5 million rpm(related to working environment and speed)
Package includes:
1 x slip ring
