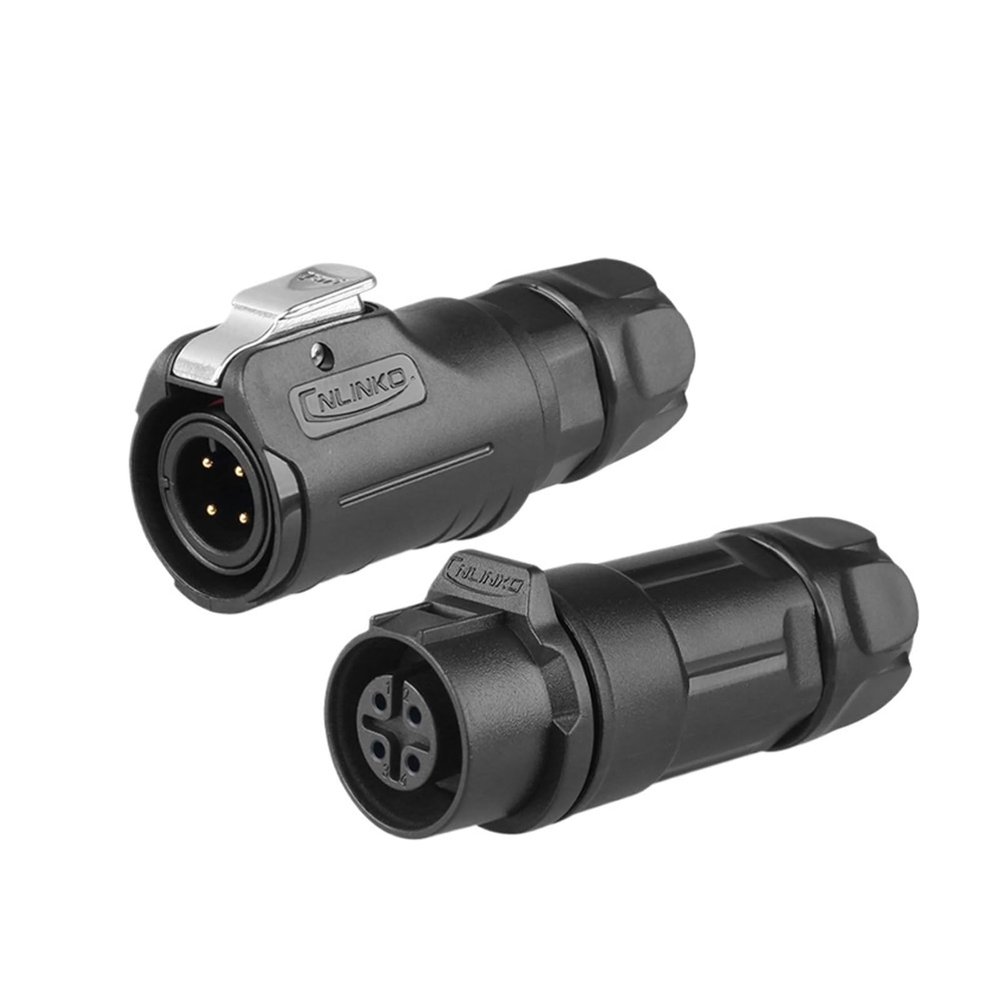

1Pcs M12 Waterproof Industrial Connector LP12 Male Mating 2 3 4 5 6 7 8 Pin Mini Electric Connector(4 Pin Set)

Description

• M12 Waterproof Industrial Connector|M12 Male Mating |Waterproof Protection:IP68-rated waterproofing ensures reliable connections in harsh environments.
• Spring Button Fastening:Quick and secure spring button connection for reliable mating and unmating cycles.
• Flange & Panel Mounting:Versatile mounting options with flange and panel installation for diverse applications.
• High Temperature Resistance:Operates efficiently in high temperatures, maintaining performance up to 80C.
• Construction:Constructed with high-performance plastics and gold-plated copper for lasting use.

Electrical Connector
M12 Waterproof Industrial Connector LP12 Male Mating 2 3 4 5 6 7 8 Pin Mini Electric Connector Retail
Features:
Material
Made from materials, this connector guarantees durability and superior electrical conductivity.
Industrial Grade
Constructed for industrial use, this connector withstands harsh conditions, ensuring longevity and reliability.
Versatile Pin Options
Available in various pin configurations (2-8 pins), this mating offers flexibility for different electrical connection needs.
Ease of Use
With its user-friendly design, the M12 Waterproof Industrial Connector simplifies electrical connections, enhancing efficiency.
Waterproof Design
The M12 Waterproof Industrial Connector ensures optimal performance in wet environments, thanks to its robust waterproof design.
==========
Hign-concerned Chemical : None
Model Number : LP-12
Cable Specification(2~6pin) : 0.34~0.5mm/22-20AWG
Diameter Range : 4.5mm~5.5mm
Contact Resistance(Max.) : 5M Omega
Durability(Min.) : 500 Times
Withstanding Voltage(AC.V) 1 Minute : 1500V/1000V
Insulation Resistance(Min.) : 500M Omega
Protection Level : IP68
Connecting Mode : Easy Locking Type
Working Temperature : -25~+80
Housing & Insulation Parts : High-Performance Engineering Plastics
Product Name : M12 2 3 4 5 6 7 8 Pin Connector
Assembly Cable : Soldering
Type : Circular Connector
Application : Audio & Video,Lighting,Power
Rated current(2~6pin) : 5A
Rated current(7~8pin) : 3A
Rated voltage(2~6pin) : 125V AC
Rated voltage(7~8pin) : 100V AC
Cable Specification(7~8pin) : 0.25~0.34mm/24~22AWG
Connector Type : Inline Connector
