1stPV 5MP Analog Super HD 4 in 1 (TVI, AHD, CVI, CVBS) Security IR Bullet Camera , 1/2.8" CMOS Image Sensor 2.8~12mm Variable Focus Lens Smart IR In/Outdoor WDR OSD Menu Dual Voltage 12VDC/24VAC

Description

• 1/2.8 CMOS Image Sensor with 5MP (2592x1944) Resolution. 2.8-12 mm Variable Focus Wide Angle Lens 100ft IR range; 4-Group Addition IR LEDs for night vision; Day/Night; DC 12V/ AC 24V. All in one Super HD IR Bullet security camera.
• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, and CVBS (1000TVL) HD technology produces 5MP Super HD Video with Sharp and Detailed Images. You can switch to TVI, AHD, CVI, or CVBS mode to work with your DVR system.
• D-WDR (Wide Dynamic Range) Function; IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night, IP66 weatherproof, Vandal proof; Multi-Axis for Wall or Ceiling Mounting.
• Applicable in Finance, Supermarkets, telecommunications, hotels, offices, corridors, stairs, garage and other indoor/outdoor monitoring sites.
• The Camera's default setting is HD-TVI. If your system is not HD-TVI system, please switch the camera video mode by joystick or OSD manual to the same mode (HD-AHD, HD-CVI, or Analog CVBS) as your system. You can also fine the instruction on the manual or contact us for technical support. Our technician will be very happy to assist you.

1st Pick Video Inc.
1stPV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

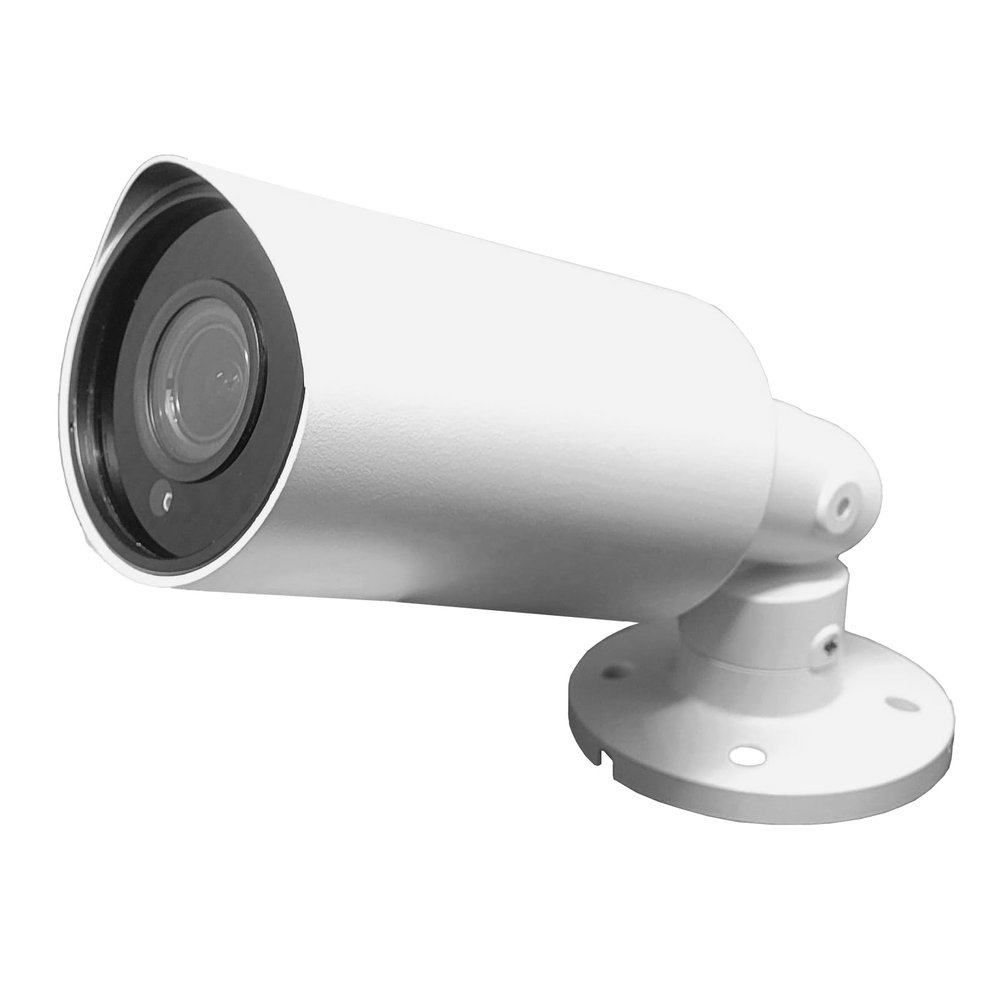

This NEW 4 IN 1 professional IR dome security camera employs 1/2.8 CMOS Image Sensor with 5 Megapixel Resolution and an advanced circuit design.
It adopts advanced image processing technology. The resolution is as high as 5MP, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output (HD-TVI, HD-AHD, HD-CVI, CVBS and adjust the video setting. It also has D-WDR function.
Built-in 2.8-12mm varifocal lens, effectively extend your observation range. With 3-Group Addition IR LEDs, it has 30m (100ft) IR range, can change from color to black automatically and take clear picture during both D/N-time.
The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. Its easy to install. It can protect your home or office effectively.

Specification:
Model#: 1PV-2812TVBDRW-5
Image Sensor:1/2.8 Sony335 CMOS Image Sensor
Effective Pixels: 2592(H)x1944(V)
Signal System: NTSC
Resolution: HD-TVI Output: up to 5MP (2592x1944)@20/15fps
HD-AHD Output: up to5MP (2592x1944)@20/15fps
CVI Output: up to 4MP (2560x1440)@30/20fps
CVBS Output: 960(H)/1000TVL
Mini Illumination: 0Lux / F1.2
Lens: 2.8 12mm Manual Zoom Lens
WDR: On/Off/Auto
White Balance / Gain Control: Auto
Video Output: 1.0Vp-p Composite Video Output, 75
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
IR Power On: Photodiode AUTO Control
Weatherproof: IP66
Operation Temp: 14F~131F (-10C~55C)
Dimensions (mm): 93(W) x 93(H) x 253(L)
Power: DC 12V/650mA and AC 24V/3.4W
IR Range: 100 ft (30m) IR Range with 4pcs Addition IR LEDs
Weight: 1.86 lbs (840g)
What's in the box?
4in1 5MP Super HD IR Bullet security camera (Whire Color) x 1; Screws.
