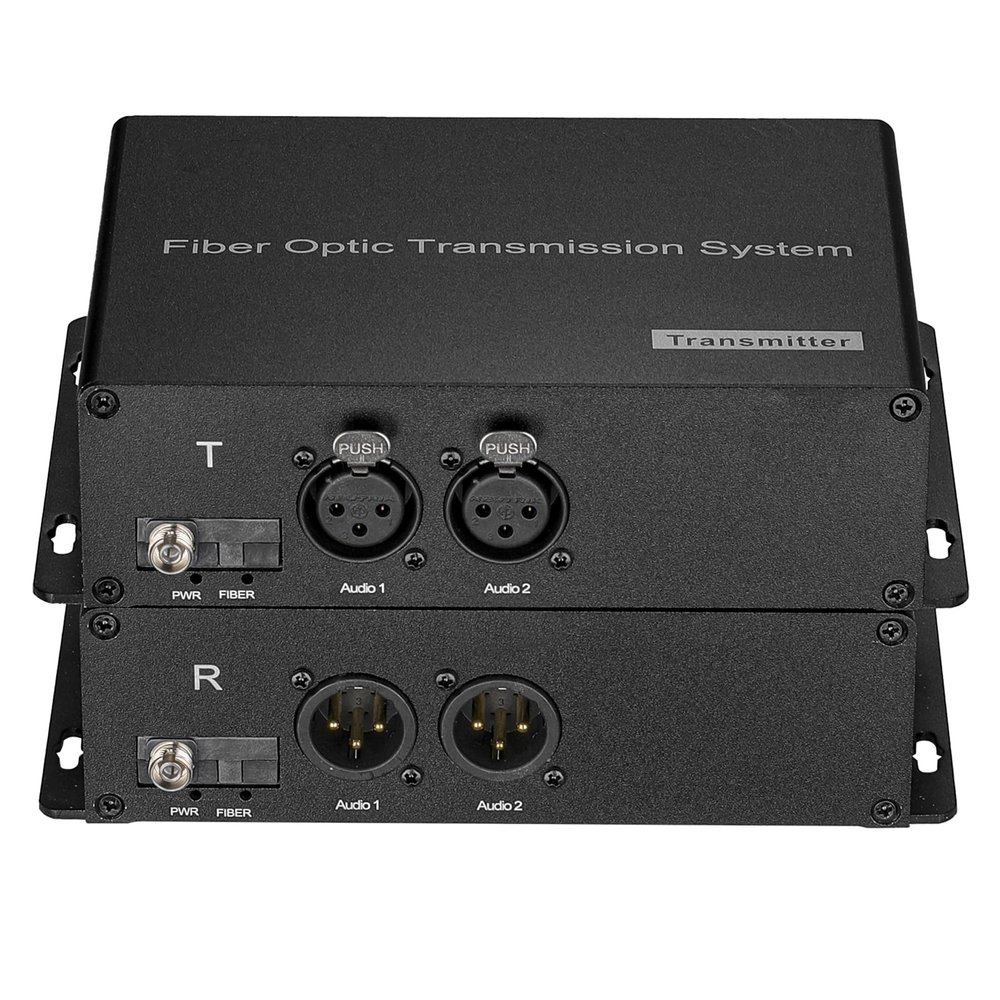

2 Port XLR Audio Over Fiber Optic Converter,Broadcast Balanced Audio 3pin XLR Fiber Extenders, FC Optical Module, Singlemode Single Fiber up to 20Km A Pair

Description

• FunctionThis Audio over fiber extender can extend 2 channels of broadcast high quality Balanced XLR Audio over an optical fiber cable to far end. It allows 2 XLR audio device synchronous transmission, No debugging required. 2 XLR Audio signal is transmitted from T (TX) in the direction of R (RX)
• Universal for Fiber TypesThe unit can work on both single-mode and multi mode fiber cable. Long transmission distance: Single mode up to 12.4 miles (20Km), Mutli mode single fiber up to 0.31 miles(500meters)
• Crystal clear sound, No Loss, No Delay Professionally design ,Pure and Clean fiber optic audio signal transmission. Compact design, Sturdy Metal. Bilateral heat dissipation. LEDs for power supply and optical fiber link status indication can monitor the operating status of the system
• Wide ApplicationsTypically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations
• Plug and PlayNo need to set up ,Simply plug in an Optical FC port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly

Optical Port:
Optical connector: FC
Wavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.

XLR Audio Ports:
Number of Channels: 2
Input Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wiring diagram : "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)
Input / Output Impedance: 600 Ohm.
Max input/output voltage: 4.0Vp-p.
Signal level: 0.5-4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24 Bit
SNR: 100dB.
Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 s) Differential mode: 6KV.

General Spec:
Power Consumption: 8W.
Working temperature: -20C ~ +70C.
Relative Humidity: 0% ~ 95% (non-condensing).
MTBF: >100,000 hours.
Installation: stand-alone.
Support wide range working Voltage: AC100-240V 50/60Hz, DC12V
Power plugUS/EU/UK/AU standard is optional.
Dimension: 167mm(L)114mm(W)45mm(H).

Package include:
1x Balanced Audio Fiber Transmitter
1x Balanced Audio Fiber Receiver
2x Power supply adapter
1x FREE 3M Fiber patch cord
1x Manual.
