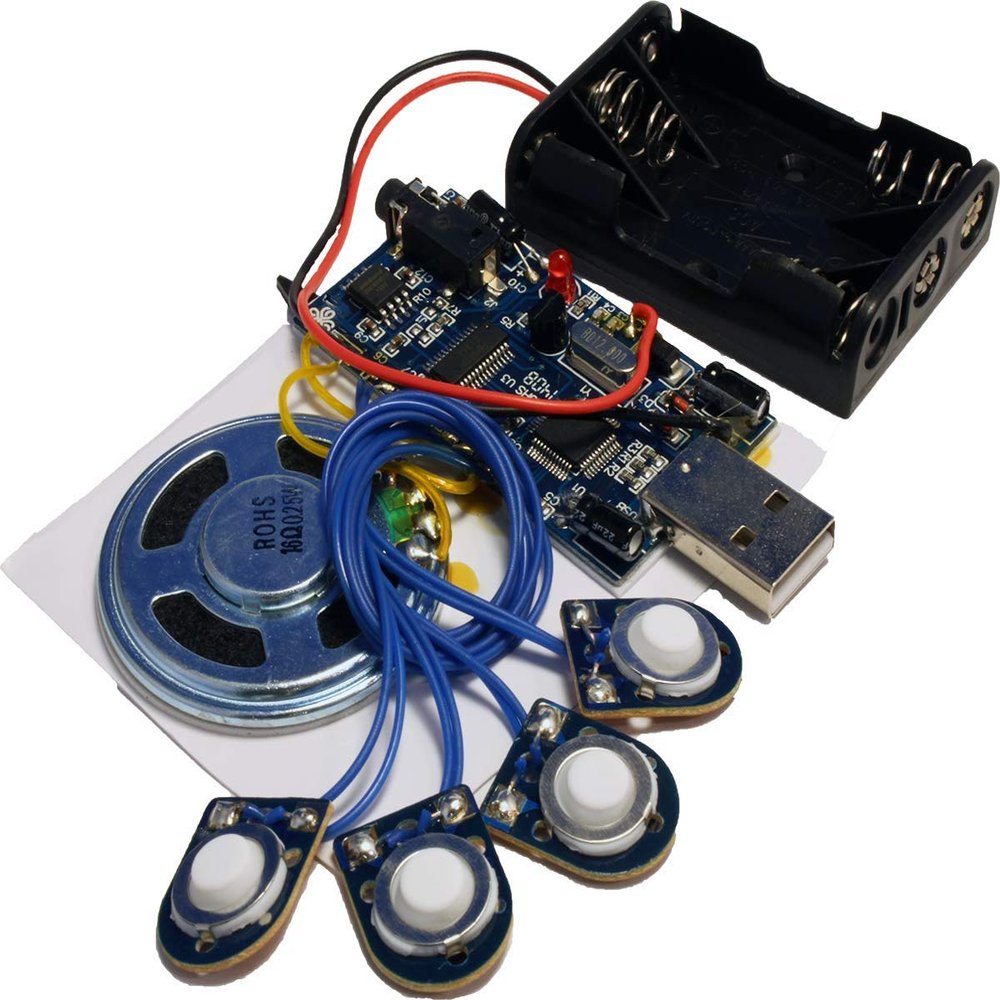

300 Second (5 Minutes) USB Recording Module

Description

• Up to 300 seconds of re-recordable voice message (4.7K sample rate)
• Includes 6 different playback settings including repeat and continuous playback.
• WINDOWS 10 or Earlier. Does not work with Mac
• Check description below for links to instructions and datasheets!
• Assembled and Tested. Need to install the PM66Q software thats available from our website

Description: This module plugs directly into the USB port of your PC. Then use the free PM66Q software from our website to record up to 300 seconds of .wav and/or .mp3 files to this module. Comes with a speaker and a line out for an additional amplifier or external speakers. Features: Up to 300 seconds of re-recordable voice message (4.7K sample rate) Includes 6 different playback settings including repeat and continuous playback. Use USB type-A male connector for direct plug into the USB port of PC Easy to transfer software for WAV or MP3 audio files. Range of 4K - 20K sample rate. 300 seconds of non-volatile recordable IC. Operating Voltage 3 to 5 VDC Operating Current <50 mA Standby Current <5 uA 4 Push switches (5" wires) for playback/stop of messages Possible to store multiple messages on each button. Will sequentially cycle through the messages on that button with each activation 40mm 0.25W 16 ohm metal housing mylar speaker (included) 3.5mm (1/8") mono audio output System Requirements: An unused USB port on a computer 3 x AAA Batteries (Not included) Can also be powered using the USB port instead of using batteries. USB wall charger Dimensions: Main Board: Excluding USB connector: 55mm x 30mm Including USB & line-out connectors: 72mm x 30mm Speaker: 40mm (diameter)
