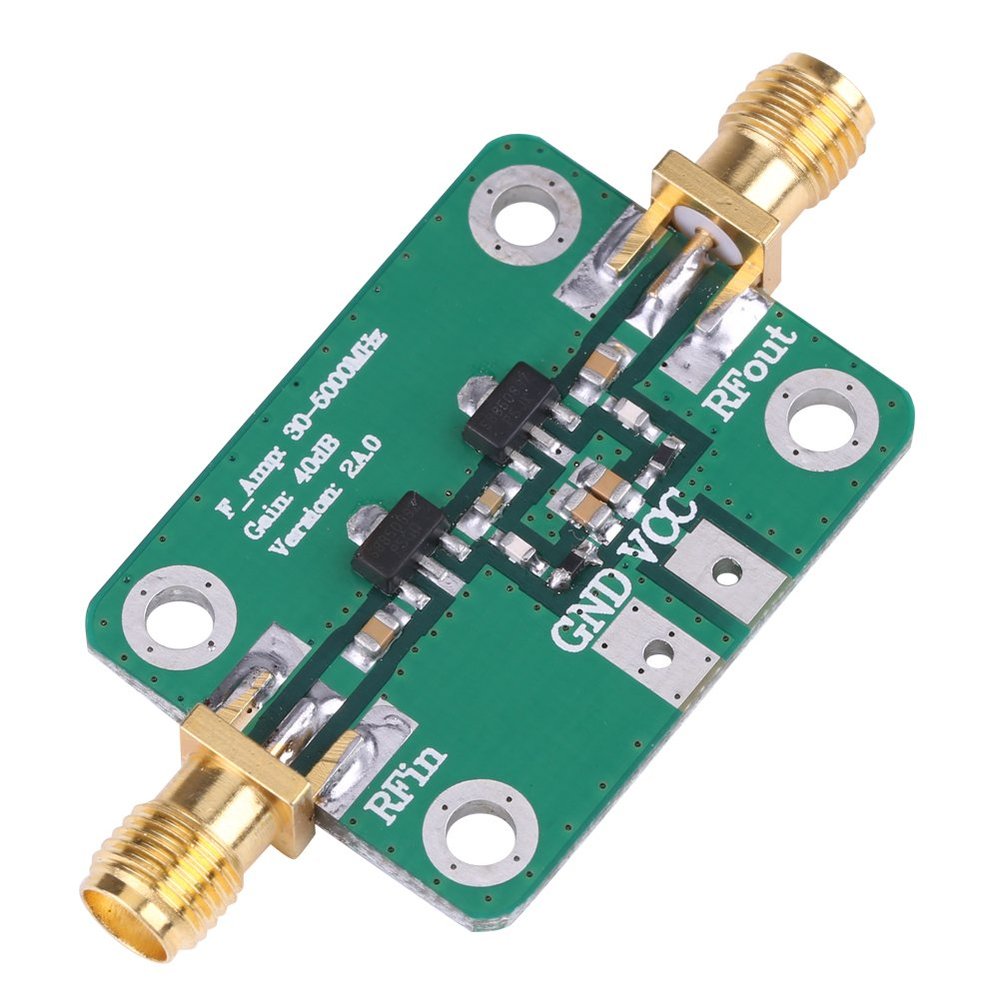

30-4000MHz 40dB RF Broad Band Amplifier Module High Gain Amplifier Board for FM HF VHF/UHF

Description

• The amplifier is 30-4000MHz (40dB) amplifier ,with the characteristic of a large dynamic range
• Suitable for the fixed gain amplification of RF
• This amplifier has a wide frequency range, FM HF VHF/UHF
• Widely used in shortwave, FM radio, remote control receiver, cable TV amplifier, GPS satellite navigation.
• This RF broadband amplifier module gain stability, is 40dB.

The amplifier is 30-4000MHz (40dB) amplifier, with the characteristic of a large dynamic range. Suitable for the fixed gain amplification of RF . This amplifier has a wide frequency range, FM HF VHF/UHF. Widely used in shortwave, FM radio, remote control receiver, cable TV amplifier, GPS satellite navigation. This RF broadband amplifier module gain stability, is 40dB.

Specifications:
Operating Frequency: 30-4000MHz
Amplifier Gain: 40dB
Maximum output power: + 20dBm (100mW) @ 1dB compression point
Operating Current: 135mA (5V)
Supply voltage: 5VDC
System Impedance: 50
Weight: 8g

Package included:
1 x 30-4000MHz 40dB Gain Broadband Amplifier Module
