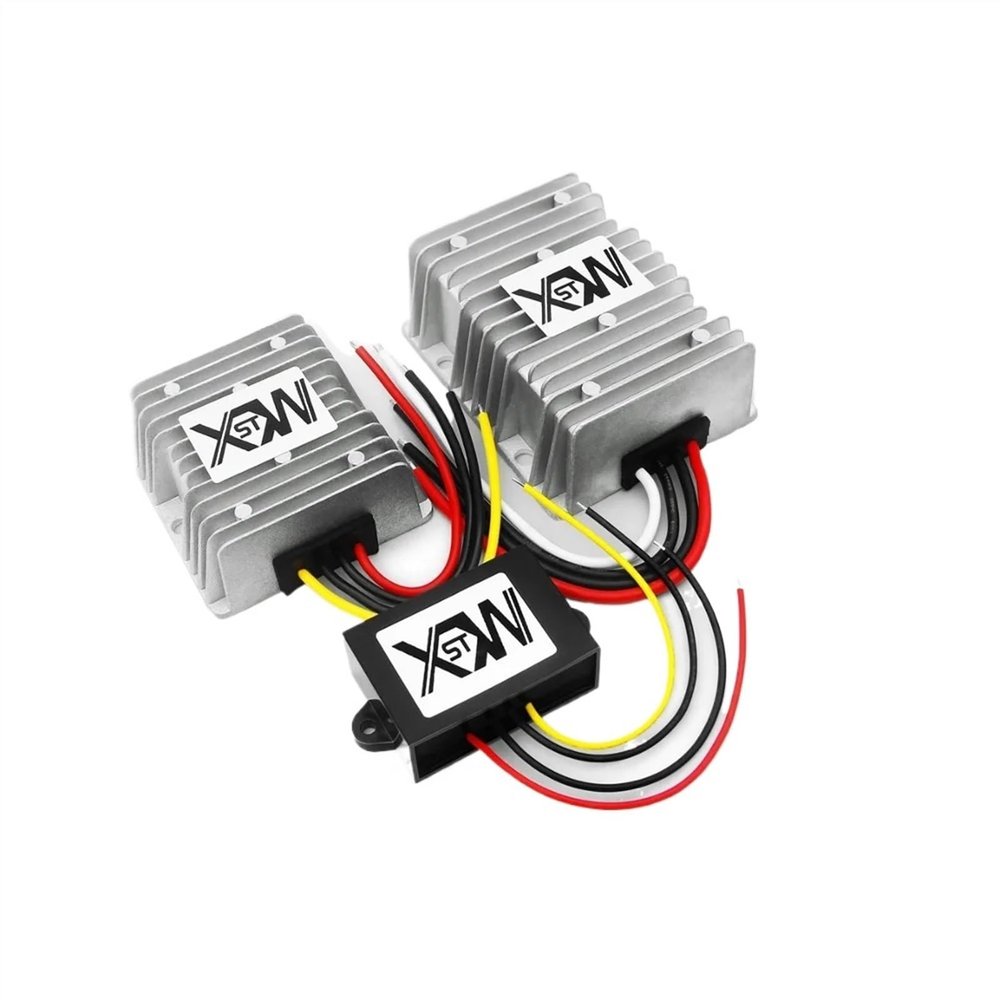

36v to 48v Non-Isolated DC to DC Boost Module 48volts Voltage Regulator 1A 4A 5A 10A 15A 20A Step Up Power Supply CE(10A Aluminum)

Description

• Power Converters
• 36v to 48v Non-isolated DC to DC Boost Module 48volts Voltage Regulator 1A 4A 5A 10A 15A 20A Step Up Power Supply CE

Power Converters
Non-isolated DC to DC Boost Module 36v to 48v Voltage Regulator 1A to 20A DC Step Up Power Supply
Model No. XW-36-48-48W~960W
Module Properties Non-isolated Module
InputVoltage DC 36V
InputVoltage Range DC 28-45V
Output Voltage DC 48V
Output Current 1A /1.5A / 2A /4A /10A /15A / 20A
Output Power 48W / 72W / 96W/ 192W / 480W/ 720W/ 960W
Conversion Efficiency >93%
<;170mV
No-loadCurrent (1-2A) 3.5mA; (4A)25mA; (10-20A)40mA
Working Temperature -40~80
Waterproof Rating IP67
Size /Packing
1-2A ABS Plastic 58*40.5*22mm, 95g, Anti-static Bag
4A Aluminum 74*74*32mm, 260g, Anti-static Bag
10-20A Aluminum 100*80*39mm, 550g, White Box
