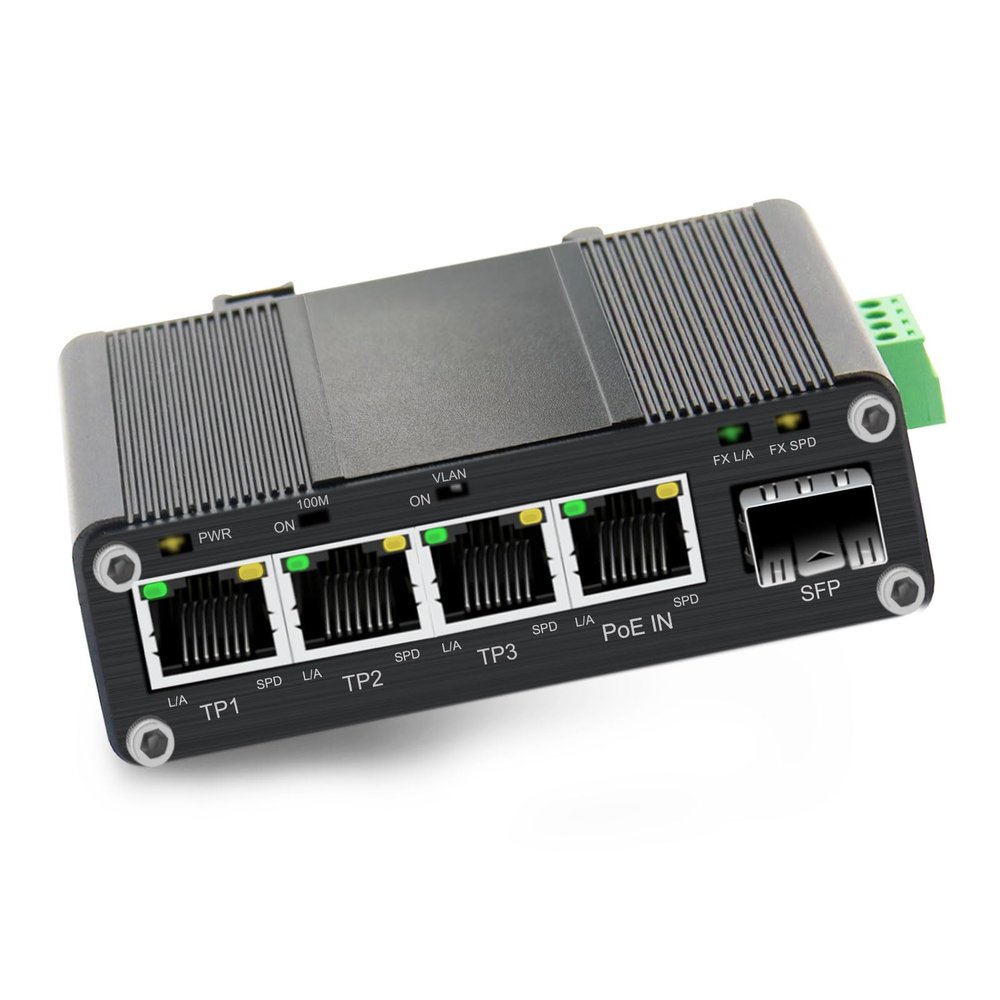

3-Port Gigabit 90W PoE Passthrough Switch, 1 in 3 Out PoE Extender, Ethernet Adapter with PD and PoE Splitter Function, IEEE802.3af/at/bt, 1000Mbps SFP Port, 12VDC Output

Description

• Hybrid Interface AdaptorFeatures 3x 10/100/1000M RJ-45 ports and 1x 100/1000M SFP slot for flexible copper/fiber connectivity with auto-detection.
• PoE PD & Splitter FunctionIncludes a PoE PD port for remote power input (IEEE 802.3at/bt) and supports 12VDC output for external devices.
• Industrial DurabilityReliable performance from -40C to 75C with aluminum casing and DIN-rail/wall-mount flexibility.
• IEEE 802.3az EEE ComplianceIEEE 802.3az EEE Compliance - Reduces power consumption during low data activity per industry standards.
• Versatile Deployment ScenariosIdeal for industrial automation, security systems, and outdoor applications.

Overview
It is a Hybrid Interface Ethernet Adapter.
This adapter offers a flexible connection method for a Type-C USB powered device to join in ethernet network through RJ-45 port or optical fiber interface.
This adapter is combined with 4-port 10/100/1000M RJ-45 and one 100/1000M optical fiber SFP slot.
The PoE IN RJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE ethernet switch or PoE injector, so the adapter can work without additional power supply and support 5~24VDC output (Max 3A, Max 60W) function.
The additional 100Base-FX/1000Base-X self-adaption SFP port can extend the RJ-45 port to long-distance optical fiber interface.
And it is suitable for 35mm DIN rail installation. An additional L-shaped bracket can be used to replace the DIN rail plate, so the user can install the adapter on the wall or a flat surface.

Features
1) 100/1000BASE-X SFP slots for SFP type auto detection
2) 3x 10/100/1000M RJ-45 port
3) 1x PoE PD type 10/100/1000M RJ-45 port
4) Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
5) Support 5~24VDC output (Max 3A, Max 60W)
6) Supports DIN-Rail and Wall-mount installation
7) -20C to 50C operating temperature

Specifications
Connector: 4x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Phoenix Connector: Support 5-24VDC output (Max3A, Max60W)
Dimensions (WxDxH): 95 x 82 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

Package contents
Mini Gigabit PoE 4-Port Ethernet Adaptor x1
L-shaped Wall Mount Bracket x1
User manual x1
