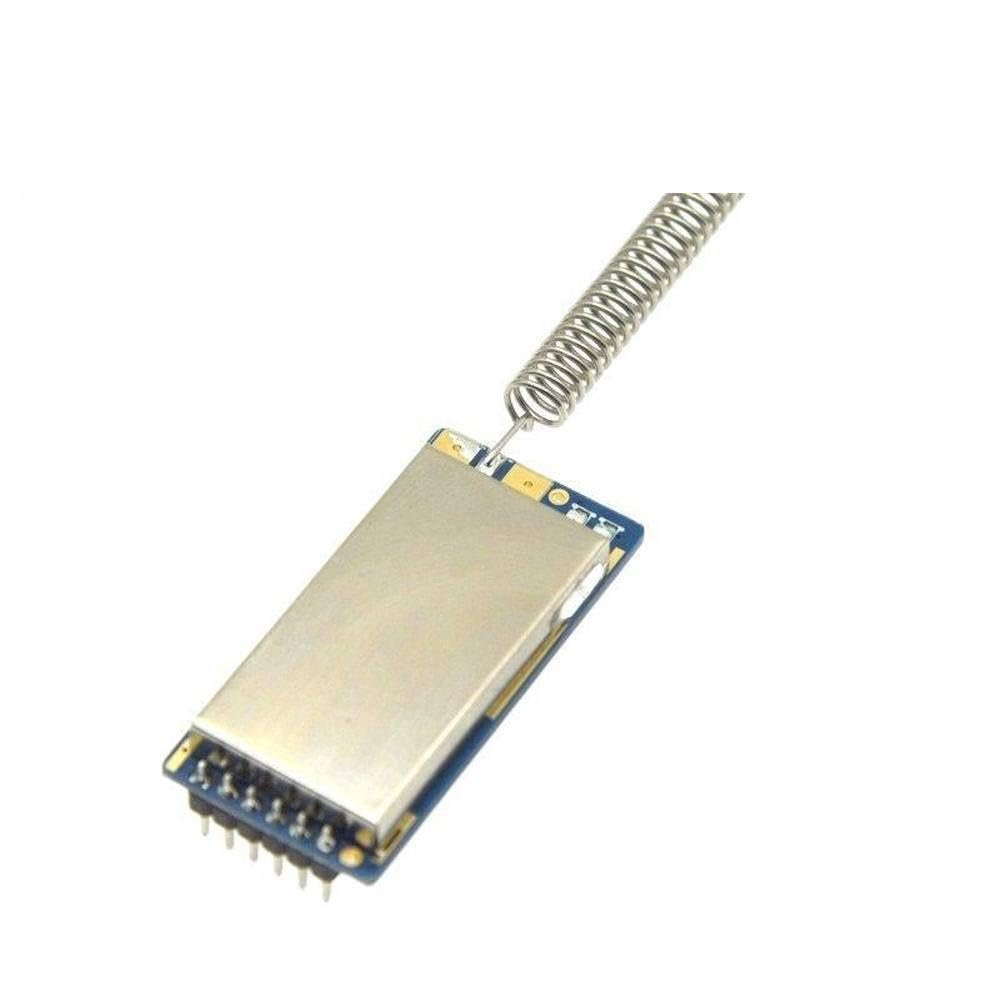

433MHz Wireless Serial Port Transceiver Module SI4432 Wireless Data Transmission Transparent

Description

• 433MHz Wireless Serial Port Transceiver Module SI4432 Wireless Data Transmission Transparent

This section describes the XL32-232AP1 module

XL32-232AP1 is a UART interface half-duplex wireless transmission module that can operate in the 433MHz public frequency band. It can comply with European ETSI (EN300-220-1 and EN301-439-3) and meet wireless regulatory requirements without the need to apply for a frequency license.

This module is designed for wireless communication between various serial devices, such as computers, single-chip computers, serial ports of various machines and equipment, etc., can be directly upgraded to wireless link on the wired connection, no additional programming is required, fully compatible with the wired communication serial port protocol, easy to use and flexible.

XL32-232AP1 parameters such as output power, serial port rate, operating frequency, product ID and other related parameters can be set through the software. If the customer does not specify the module default parameter is 9600 8N1.

Up to 1000 meters transmission distance

Operating frequency in 430-510MHz, (default 433MHZ)

The transmit address and receive address of the module can be set

Serial port rate 1.2K-- 115.2KBPS. (Default is 9.6KBPS)

Data format 8N1, 8E1,8O1

The output power of the module can be set to 1dBm/ 2dBm /5dBm /8dBm /11dBm/14dBm /17dBm/20dBm

Air speed can be set 0.5K 2.4K 10K 20K 40K 100K 150K 250K

Application of XL32-232AP1 module

Smart home, home applications and wireless sensing and security systems;

Control processing, wireless data connection, telemetry, small wireless networks;

l Vehicle monitoring, anti-theft; Robot control, Freescale smart car control

l Wireless meter reading, access control system, cell paging, thermal printer;

l Industrial data acquisition system, biological signal acquisition, hydrometeorological monitoring;

l Car four-wheel positioning, etc
