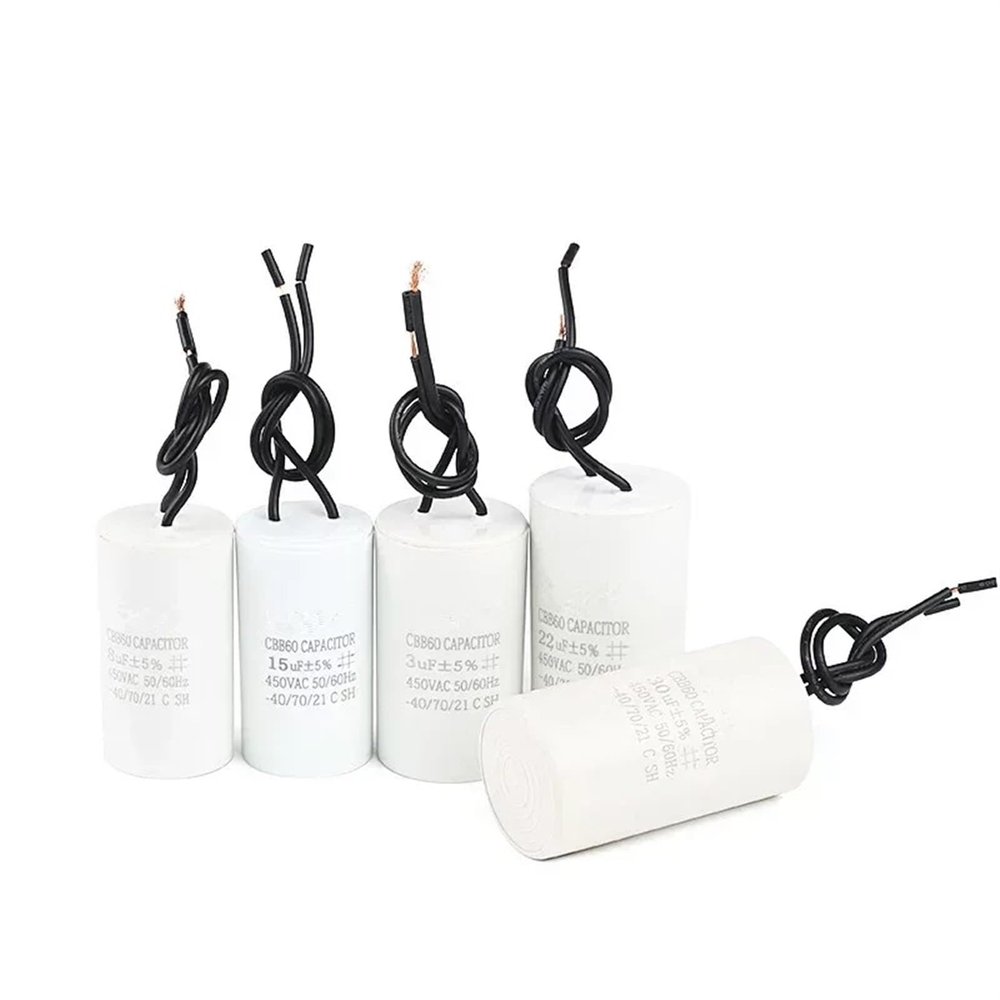

450V 3UF 4UF 5UF 6UF 8UF 10UF 12UF 15UF 18UF 20UF 25UF 30UF 35UF 40UF 45UF 50UF Motor Run Capacitors CBB60 Spade Tabs 450V AC (Size : 5UF)

Description

• Capacitors
• 450V 3UF 4UF 5UF 6UF 8UF 10UF 12UF 15UF 18UF 20UF 25UF 30UF 35UF 40UF 45UF 50UF Motor Run Capacitors CBB60 Spade Tabs 450V AC

Capacitors
CBB60450VACCapacitors
3UF 450V overall dimensions 35X63mm
4UF 450V overall dimensions 35X64mm
5UF 450V overall dimensions 35X64mm
6UF 450V overall dimensions 35X64mm
8UF 450V overall dimensions 35X64mm
10UF 450V overall dimensions 35X64mm
12UF 450V overall dimensions 38X75mm
14UF 450V overall dimensions 38X75mm
15UF 450V overall dimensions 38X75mm
16UF 450V overall dimensions 38X73mm
18UF 450V overall dimensions 38X75mm
20UF 450V overall dimensions 38X75mm
22UF 450V overall dimensions 38X72mm
25UF 450V overall dimensions 38X76mm
30UF 450V overall dimensions 38X76mm
35UF 450V overall dimensions 45X92mm
40UF 450V overall dimensions 45X92mm
45UF 450V overall dimensions 45X90mm
50UF 450V overall dimensions 45X90mm
60UF 450V overall dimensions 45X90mm
Used asWorking and starting, to run electric motors of washing machines, refrigeration compressors, air conditioners, pumps, etc. The capacitors of this series are also used as phase-moving to start three-phase engines from a 220 volt network.
Cbb-60 sulfur capacitors are analogs of k78-17 series domestic capacitors.
Characteristics of cbb-60 capacitor:
Nominal capacity:3to 60UF
Permissible capacity deviation: 5%
Rated AC voltage:450VAC
Working frequency:50/60Hz
Minimum permissible temperature:-25 & deg; C
Maximum permissible temperature:+ 85 C
Life:B. -10000 Hours at 400vac); c-3000 hours at 450vac; D-1000 hours at 500vac.
Protection class:P0-.
Also available are start-up-working capacitors cbb-60 with a bolt mount and wires for mounting!!!
