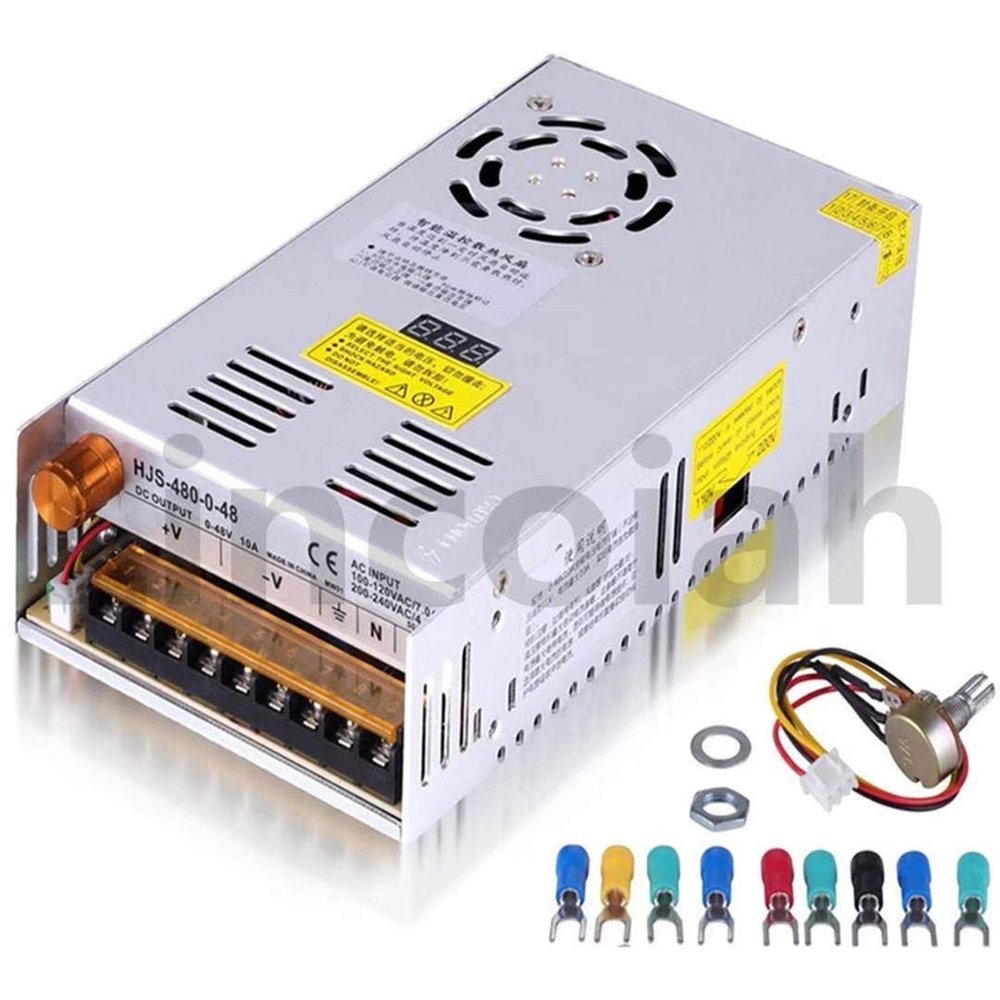

480W Switching Power Supply AC 110/220V to DC 0-24V/0-36V/0-48V Adjustable Voltage Digital Display SMPS for LED Light Strip (Input Voltage : 110/220V15%, Output Voltage : 0 24V 20A)

Description

• Low price, high reliability, 105C output capacitor
• Universal AC input, high efficiency, low working temperature
• Soft start current can effectively reduce the influence of AC input
• With short circuit and overload protection, small size and light weight
• 100% full load aging test, install EMI filter, minimum wave

Product Name: 500W/600W Adjustable Switching Power Supply With Digtal Display
Input voltage: AC110-220V + 15%
Output voltage: DC0-24V 20A / DC0-36V 13A / DC0-48V10A
Rated power: 500W/600W
Product size: 215mm (long) *115mm (wide) *50mm (high),

The protection function of short-circuit / overload / overvoltage
100% full load burn-in test
Input voltage &frequencyrange--------110/220VAC/47 ~ 63Hz
Start impact current ---------------20A@120VAC (cold start)
The output range of - + 10% (rated output voltage)
Overload protection -------------------105% ~ 200% (rated load), self recovery
Overvoltage protection -------------------115% ~ 135% (rated output voltage)
Short circuit protection ------------------- self recovery
Output start time - 2S@120VAC 1.0S@230VAC
Output hold time - more than 10mS@120VAC, more than 20mS@230VAC
The insulation strength ------------------- input - output: AC1500V, 1min
Input - Case: AC1500V, 1min
Output - Case: DC500V, 1min
The working environment of C - 10 to 50 DEG C; 20% ~ 90%RH (no condensation)
Safety standard ------------------- design reference EN/UL60950
EMC standard - EN55022 Class B reference design;
EN61000-4-2/-3/-4/-5/-6/-11
