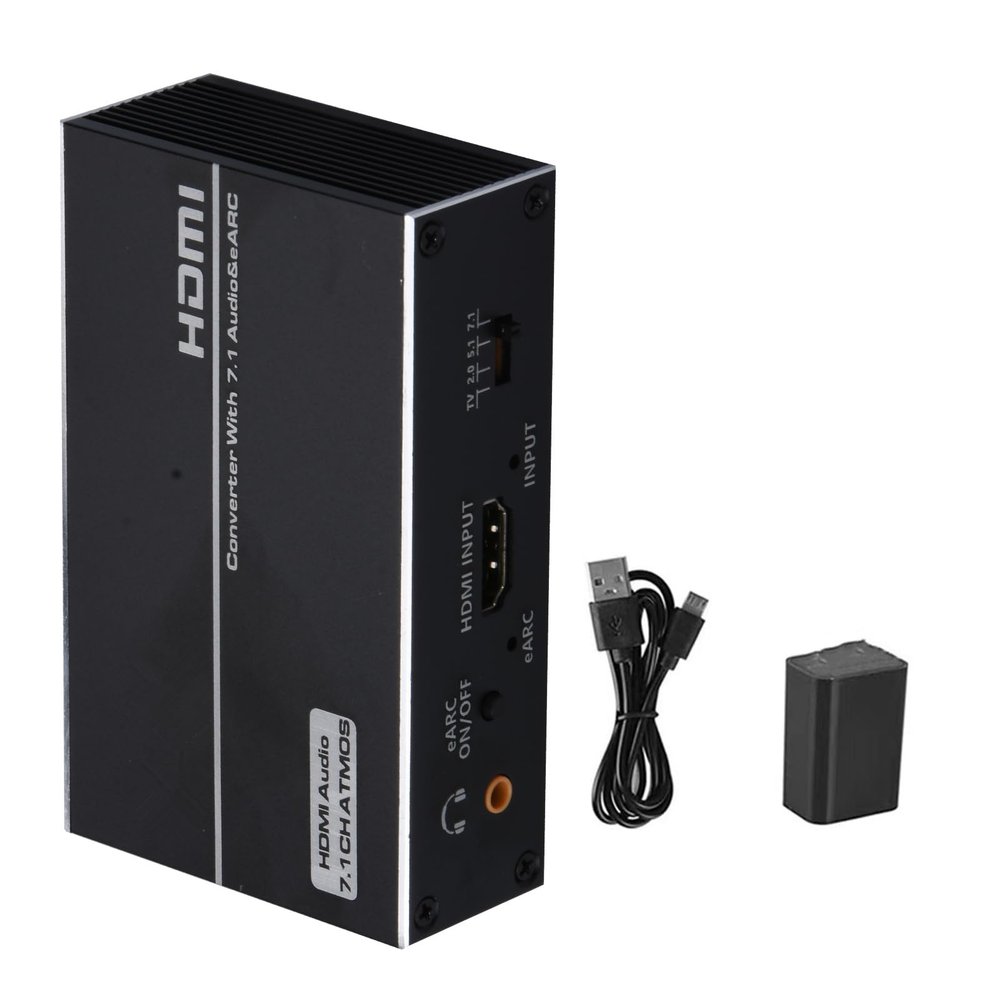

MOOKEENONE 4K@120Hz EARC Audio Extractor, Converter Sound Bar HDMI 2.0 AUX Audio Adapter Splitter Converter

Description

• HDMI Switch support LPCM 7.1CH, DTS -HD, AC 3, DTS , DSD, Digital Plus audio format, But can't decode these audio formats.
• HDMI Audio Extractor-with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source to your soundbar or amplifier, no need connecting TV or Monitor.
• HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier. Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable, then optical/Coaxial/HDMI cable to the soundbar, Speaker, home theater, AV receivers etc, then open "ARC/eARC" button.
• HDMI Input compatible with most HDMI device and other HDMI signal source. HDMI video /audio Output: Monitor, TV, Projector. HDMI audio /SPDIF/Coaxial/3.5mm audio output: Receiver, Amplifier, Speaker, headphone and other audio device
• Support 24bit deep color per channel.

Specifications:
Power Supply:DC 5V/2A(included 5V power adapter)
HDMI Output ARC/eARC: TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port: PCM 2.0, LPCM 5.1/7.1,Digital, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Toslink SPDIF: LPCM 2.0/5.1, Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1, Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack: Analog stereo 2.0ch
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz), 8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4); 8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0)
Turn on/off the eARC function: Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio; Switch to "OFF" position, the AUDIO ONLY port will output the audio from HDMI IN port

Product List:
1x 1x1 HDMI eARC Extractor
1x 5V Power Adapter
1x Power Cable
1x User Manual
