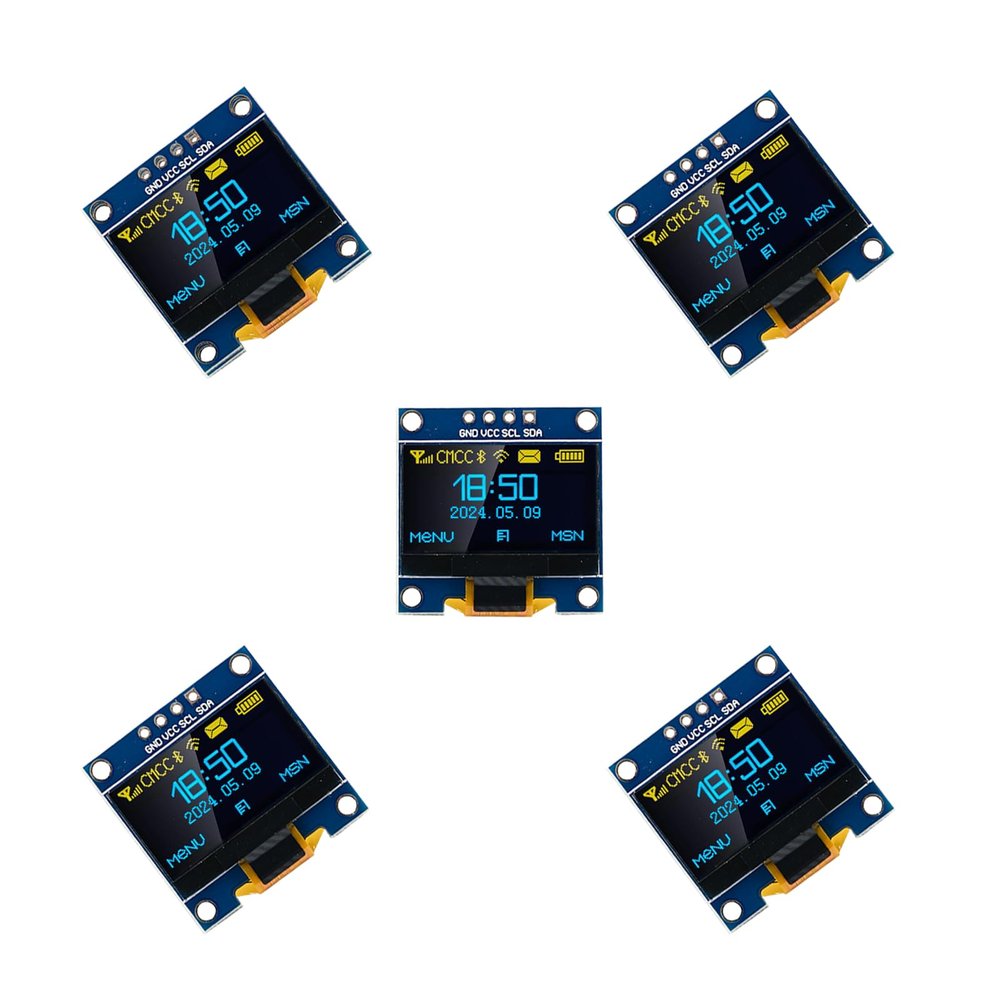

5PCS 4 Pin 0.96 Inch OLED I2C IIC Display Module 128x64 Pixel Compatible with Nano Display Msp420 Stim32 SCR

Description

• Low-power. One of the great things about OLED display is that they are by design, light emitting. You can have the displays in total darkness, and you can easily read them. In direct sunlight, they are still can be read, but not recommmended to expose to the sun for extended periods of time.
• 0.96 Inch OLED Module for showing graphical & textual information directly on your micro-controller projects. It supports many chips: Arduino UNO and Mega, 51 MCU, STIM 32, etc., the UNO shown in the picture is NOT INCLUDE.
• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports.
• This tiny oled display is widely used in DIY projects: Smartwatches, Small weather station, Alarm clock, Computer resource monitor (CPU/GPU utilization percentages, RAM availability, core temperatures) etc.
• 128 x 64, View angle: > 160, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W.

Features:

OLED self-luminous, no backlight

Size: 0.96

Driver IC: SSD1306

Voltage: 3.3V-5V DC

Viewing angle: > 160

High resolution: 128 x 64

Working Temperature: -30C~70C

Display: 2 rows of yellow, 6 rows of blue

Module Size: 27mmx 27mm x 4mm

Screen material: glass, need good protection

I2C Interface:

GND: Ground

VCC: 3.3V~5V

SCL: I2C Serial Clock (UNO: A5; MEGA: 21)

SDA: I2C Serial Data (UNO: A4; MEGA: 20)
