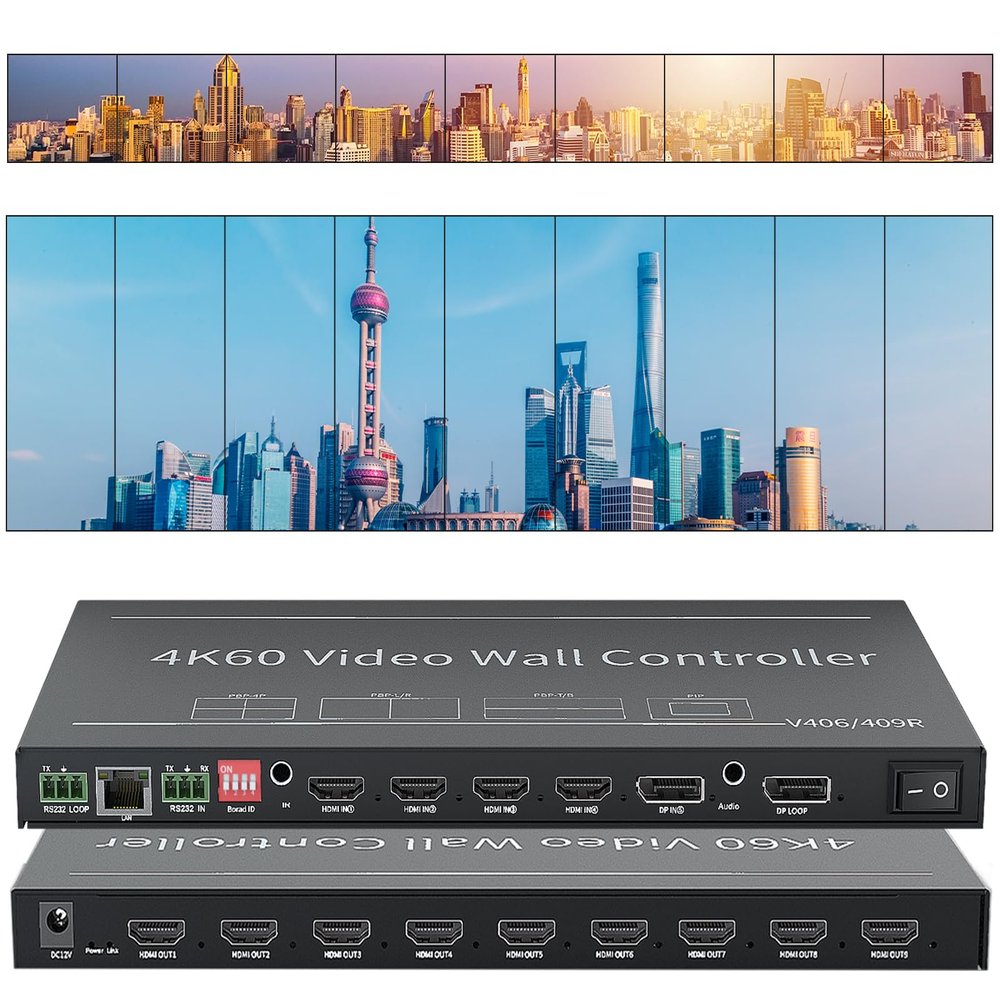

5x9 Video Wall Controller 4K@60Hz 4 HDMI+1 DP Input /9 HDMI Output Compatible (3x3 2x2 2x3 9x1 2x4 1x6) a Variety of Splice Modes,RS232/ Remote Control,RJ45TCP Network Protocol

Description

• 5x9 Video Wall Controller 4K60HzXTA-409R is a newly launched Ultra HD 5x9 video wall controller. It supports 4-way HDMI input (1-way 4K@60Hz, 3-way 4K@30Hz), 1-way DP input (4K@60Hz), 9-way output HDMI, 1-way DP loop out.
• Any splicing modeSingle device, 5 into 9 out (compatible with 1 into 9 out)Video Wall, can be arbitrarily combined with a variety of splicing modes: Horizontal Screen/vertical/Equal ratio screen, can support more than a dozen splicing modes (for details, please see the product specification), and support in the form of large-scale cascade and parallel use of the ring out!
• Window Expansion ModeMaximum screen open 4 windows, and support a variety of window modes (single-screen, dual-screen picture-in-picture, dual-screen picture-on-picture, four-picture split), you can arbitrarily assign the input source channel to the open window screen. (You can open a separate window in the display screen to show other screens)
• High Resolution4K Video Wall Controller Input maximum support 3840x2160@60Hz, backward compatible. Output maximum single channel support 1920x1080@60Hz (output support customized standard resolution). Input support for the whole screen 90 rotation (only single screen mode support), output support for the first line 180 rotation (only in the case of splicing mode for two lines support)
• Simple operationLow power consumption, energy saving and environmentally friendly design, internal conduction cooling, without any external cooling measures, extremely high reliability, Video Wall Processor support for infrared remote control, serial RS232 control, the screen does not stretch, does not distort, without the need for compression processing of the input source, the picture is clear.

Ultra HD video wall controller product introduction
1.XTA-409R is a new ultra HD video wall controller. Supports four HDMI inputs (1 4K@60Hz, 3 4K@30Hz), one DP input (4K@60Hz), nine output HDMI (1080p@60Hz), and one DP loop output.
2. Single device, 5-in-9 out video wall (compatible with 1-in-9 out), can be arbitrarily combined with a variety of splicing modes: horizontal screen/vertical screen/field font, and supports large-scale cascading and parallel use in the form of loop out.
3. The maximum full screen opens 4 Windows and supports a variety of window opening modes (single picture, two-picture picture in picture, two-picture picture side picture, four-picture division), which can be arbitrarily allocated to the input source channel to the window screen.
4. The maximum input for the video wall processor is 3840x2160@60Hz and backward compatible. The output supports a maximum of one way 1920x1080@60Hz (the output supports customized standard resolution).
5. The video wall 3x3 input supports 90 rotation of the whole screen (only single screen mode support), and the output supports 180 rotation of the first line (only in the case of two lines of splicing mode support).
6.4K video wall controller does not stretch, does not deform, does not need to compress the input source, and the picture is clear.
7.3x3 video wall supports single display mode (1x1).
8. Support infrared remote control, serial port RS232 control.
9. Low power consumption, energy saving, and environmental protection design, internal conduction heat dissipation, without any external heat dissipation measures, high reliability.
10. Support computers, Android boxes, game consoles, and other devices as input sources.
11. Adopt a 40nm process high-end programmable FPGA chip, all hardware real-time processing architecture, and ultra-fast processing speed without delay.
