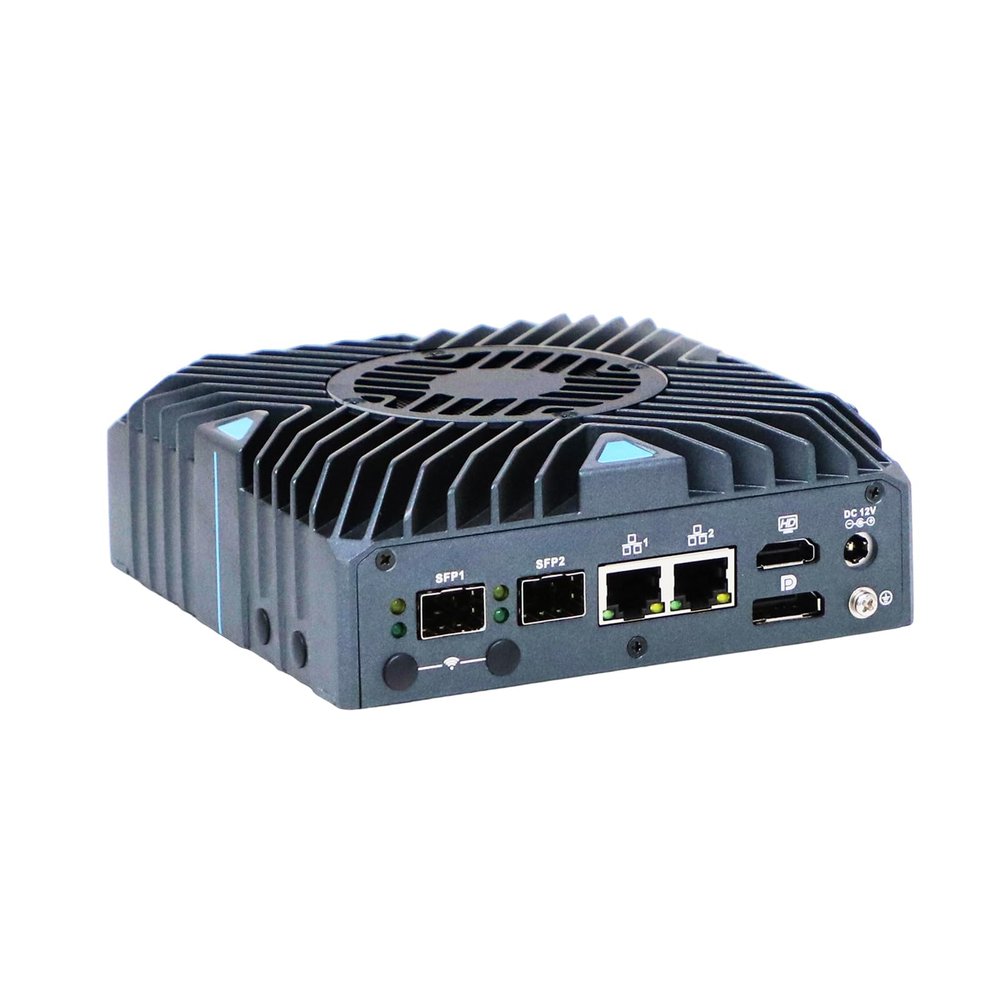

ANDAQI Base Plate Din Rail Micro Firewall Appliance, Mini PC, OPNsense, VPN, Router PC, N150, RX22, 2 x 2.5G LAN, 2 x SFP+, 3-PIN Phoenix COM, 8G RAM, 512G SSD

Description

• ANDAQI RX22 equipped with n150 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, application for industrial control, industrial automation, robotics, iot gateways, edge computing, machine vision, agvs/amrs etc, with base plate din rail
• Compatibility, firewalls for pfsense, opnsense and other popular open-source software solutions
• Compact aluminum, 12v5a power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, ready to run straight out of the box
• RX22 designed with power switch, usb3.1, 5 x usb2.0, 2 x 3-pin phoenix terminal com for rs232/485 com1 support console, nano sim slot, 2 x sfp+, 2 x lan, hdmi, dp, dc_in, size at 135 x 135 x 48mm
• Original industry network motherboard, low power consumption, low heat, use dedicated silent cooling fan to ensure long-term operation

Model Number: ANDAQI RX22
Chassis: Aluminum
CPU: Processor N150 6M Cache, up to 3.60 GHz
AES-NI Supported: Yes
Security: TPM2.0
Memory: 1 x SODIMM DDR5 4800 MT/s, MAX.48GB
Storage: 1 x M.2 2280 M-key PCIE3.0 x1 SATA/NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x 2.5GbE I226-V LAN, 2 x 82599ES 10GbE SFP+
I/O Interface: Power Switch, USB3.1, 5 x USB2.0, 2 x 3-PIN Phoenix Terminal COM for RS232/485 COM1 support console,
Nano SIM Slot, 2 x SFP+, 2 x LAN, HDMI, DP, DC_IN
Expansion: 1 x M.2 2230 E-key for PCIE/USB/CNVio2 WiFi/BT, 1 x M.2 3052 B-key for USB3.0 signal 4G/5G module
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: 0C ~ +40C Commercial HDD, -20C ~ +50C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
TDP: 6W
Cooling system: Fan auxiliary heat dissipation design
Size: 135 x 135 x 48mm
Weight: 0.80kgs
Packing List: ANDAQI RX22 firewall appliance with base plate din rail, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as base plate din rail method
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark ANDAQI store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
