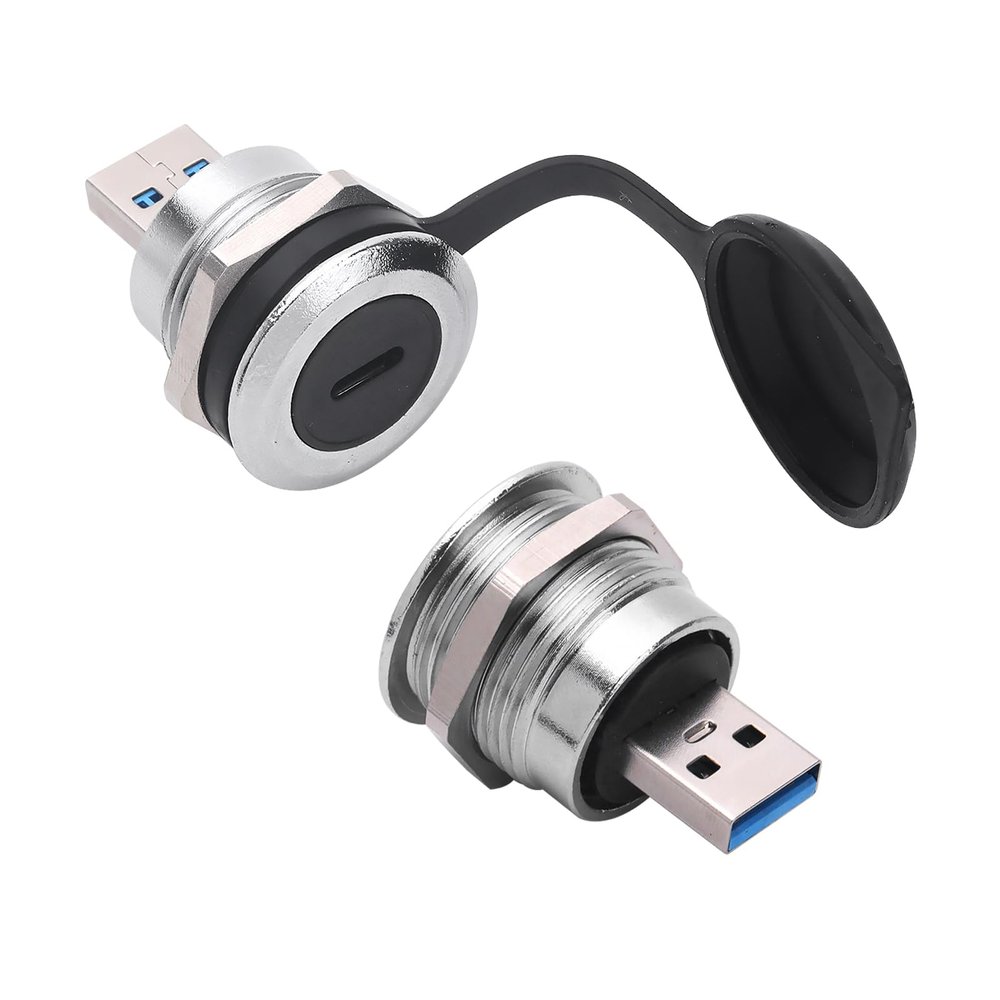

ANMBEST 2PCS Panel Mount USB Adapter, USB C Female to USB3.0 Male Circular Connector, 5Gbps Data Transfer USB Pass Through Cable Coupler Extension Converter with Waterproof/Dust Cap

Description

• USB C Female to USB3.0 Male: A panel mount TYPE C 3.1 to USB3.0 connector is a type of connector that allows you to mount a USB C port on a panel or surface and provides a USB A port for connection. Threaded Fixing Round connector socket, provide stable data transmission and charging environment.
• Data Transfer&Charging: Supports USB 3.0 SuperSpeed 5Gbps, 10x faster than USB 2.0, ideal for large file transfers, HD video, and external storage. Fast-charging up to 5V 2A, it charges devices faster & more efficiently.
• DURABLE: The key internal parts of these adapters are housed in an Zinc diecast (ZnAl4Cu1) shell that holds its ground well to brute force and ensures stable connection and long term use. With these adapters, you can bid farewell to dropped signals and frustrating interruptions as well as discoloration over time.
• Easy to Use: Plug and play, no driver required; Simple structure and lightweight; Also, you can sync or charge your phone with this USB C to USB A adapter.
• Standard Round Connector for Panel-Mount Installations, Equipped with M241.5 nut, only need to make a 25mm hole on the board surface, and fixed mounting by nut to achieve the conversion of USB3.0 to USB C port.

A panel mount TYPE C 3.1 to USB3.0 connector is a type of connector that allows you to mount a USB C port on a panel or surface and provides a USB A port for connection. This type of connector is commonly used in various applications where a secure and accessible USB connection is required, such as industrial equipment or custom electronic projects. It enables you to have a USB A port available externally while having a USB C port internally, allowing for easy connection with USB A cables or devices.
Technical Specifications:
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: USB3.0 Male to USB C Female Extension Connector
Transmission speed: up to 5.0Gbps
Charging Power: 5V 2A
Electrical parameters:
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7m Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Thread specification: M24*1.5
Mounting hole diameter: 25mm (0.98in)
Installation panel thickness: min 2.0mm-max 10mm
Base shape: O type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 x Panel Mounting USB3.0 Male to USB C Female Extension Connector
