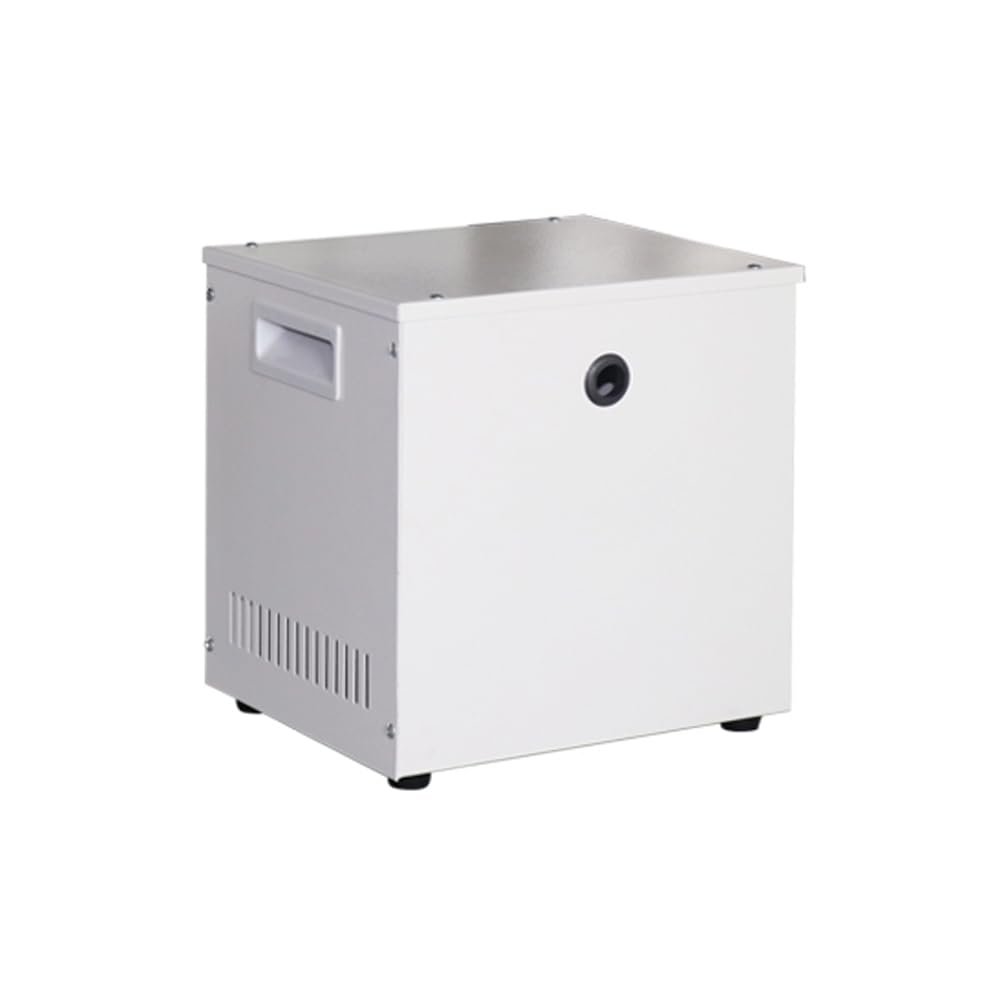

ATO 500VA Isolation Transformer, Single Phase 220V to 110V Step up Transformer, 220V to 110V Step Down Single Phase Transformer, 1 Phase Buck & Boost Transformer(Aluminum Wire Transformer)

Description

• ParametersATO buck and boost transformer Input Voltage(Primary Voltage)--- Optional: 110V/ 120V/ 222V/ 230V; Output Voltage(Secondary Voltage)---Optional: 110V/ 120V/ 220V/ 240V/380V/400V/440V/480V, (support customization)
• AdvantagesATO step-down and step-up isolation transformer winding material: Aluminum wire, IP20 enclosure Transformer Type, with four movable wheels for easy movement, CE, ISO certification, natural air self cooling, LCD display datas, working efficiency up to 95%
• Heat dissipation holes and fansThe enclosure of the ATO 500VA Isolation Transformer is a multi-hole design, the back of the transformer installed cooling fan, 110V to 220V step up transformer can be strong and effective heat dissipation, reduce the temperature of the machine, to better protect the internal components
• Long-term continuous workSingle phase isolation transformer, High temperature resistant enameled wire, high temperature resistance up to 180, good insulation and not easy to aging, prolong the service life of the machine, With a wide range of applicable loads, can withstand transient overload, can work continuously for a long time
• Customer First You will be enjoyed to get free tech support on how to choose, how to wire, how to commissioning with ATO professional engineers. If you have any issue about the product or service, please don't hesitate to consult us

ATO dry type isolation transformer, with 500VA capacity, step down single phase primary voltage 220V to secondary voltage 110V AC, 110V to 220V step up transformer is available.
ATO AC-AC Isolation Transformer Specification:
Capacity: 500VA
Phase: Single phase
Frequency: 50Hz / 60Hz
Winding Material: Aluminum/Copper wire (Optional)
Work Efficiency: 95%
Temperature: -15~+45
Enclosure Protection Grade: IP20
Input Voltage(Primary Voltage): Optional: 110V/ 120V/ 222V/ 230V(support customization)
Onput Voltage(Secondary Voltage): Optional: 110V/ 120V/ 220V/ 240V/380V/400V/440V/480V(support customization)
Weight: 24kg
Technical Specifications:
Cooling Mode: Natural or air cooling
Insulation Resistance: 50 M
Electrical Strength: 2000V AC/1 min
Noise: 35dB (1 meter)
Insulation Grade: Grade B (130), Grade F (155), Grade H (180)
Overload Capacity: Allow more than 1.2 times rated load to work for up to 1 hour
Induced Overvoltage Withstand Test: 125Hz/800V/min
Impedance Voltage: About 6%
Total Losses: 10%
Certification: CE, ISO
Temperature: -15~+45
Enclosure Protection Grade: IP20

Note:
Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Support voltage customization, various specifications customization.
