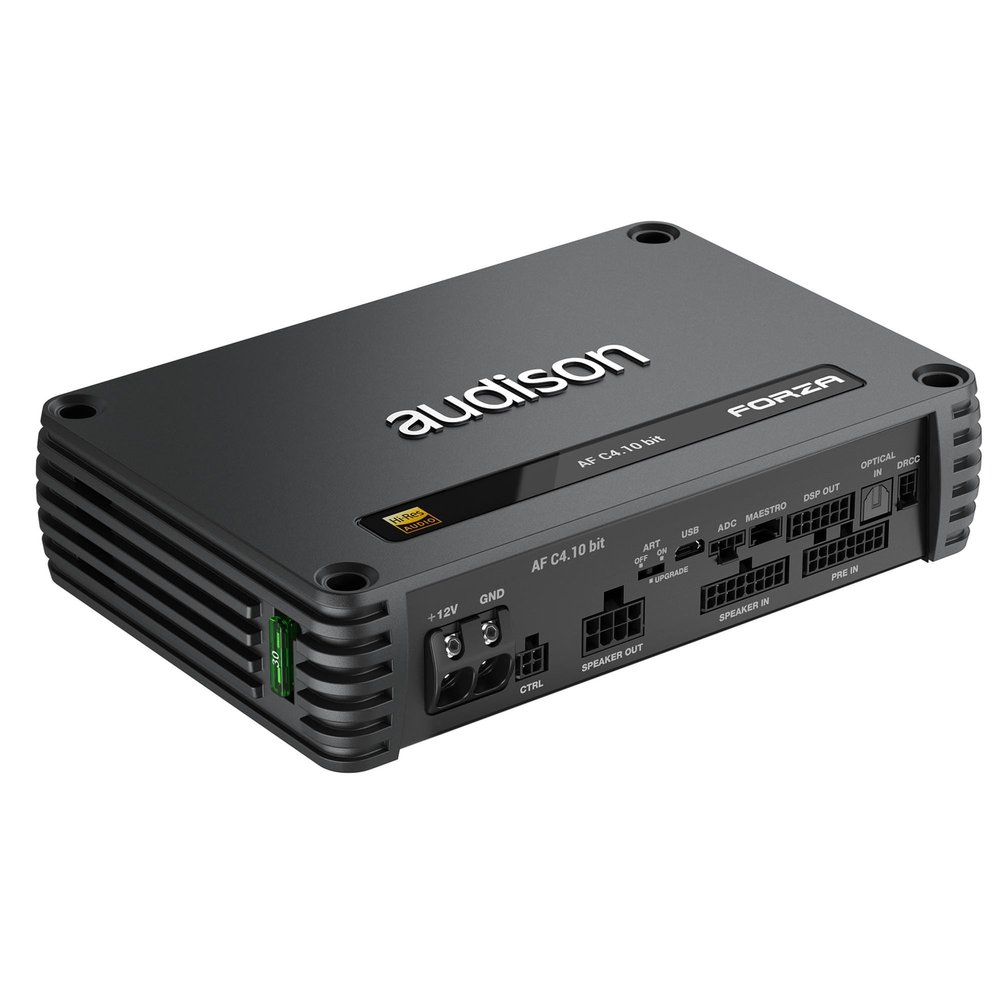

Audison Forza AF C4.10 bit 4 CH Amplifier with 10 Channels DSP - 4 x 90W at 4

Description

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm reaching 81% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 10 output channels (4 amplified, 6 native pre-out outputs, 4 optional pre-outs) controlled by the DSP to expand the system with other amplifiers

AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4*, 150W x 4 @2*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4, guaranteeing flexible and powerful performance. Support for the Audison B-Cons Absolute Volume function guarantees maximum bit depth, even with wireless connections! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven. Specifications: AMPLIFIER TECH DATA Channels: 4 Class: D Power supply voltage / fuse: 11 15 VDC / 1 x 30A Operating power supply voltage: 6.5 17.5 VDC Idling current: 1.04 A Standby Current Draw: 1.4 A Consumption @ 14.4 VDC, 2, Max Musical Power: 29 A Remote IN: 4 15 VDC (1 mA) Remote OUT: 6.5 15 VDC (150 mA) ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC AST - Automatic Signal Turn on/off (Selectable): 1.5 VDC Efficiency Rated Power: 81% AMPLIFIER STAGE Distortion - THD @ 1 kHz, 4, 70% Rated Power: 0.03% Bandwidth @ -1.5 dB: 10 Hz 42 kHz Damping factor @ 1 kHz, 4, 2 VRMS: 95 S/N ratio (A weighted @ 1 V Input) Master Input: 98 dBA S/N ratio (A weighted @ 1 V Input) Optical Input: 105 Input sensitivity Pre-In: 0.6 6 VRMS (15 k Imp.) DIGITAL SIGNAL PROCESSOR Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor. Filter type: Full / High-Pass / Low-Pass / Band-Pass Crossover frequency: 20 Hz 20 kHz Phase control: 0 / 180, All-Pass filters GENERAL REQUIREMENTS PC connections: Micro USB 1.1 / 2.0 / 3
