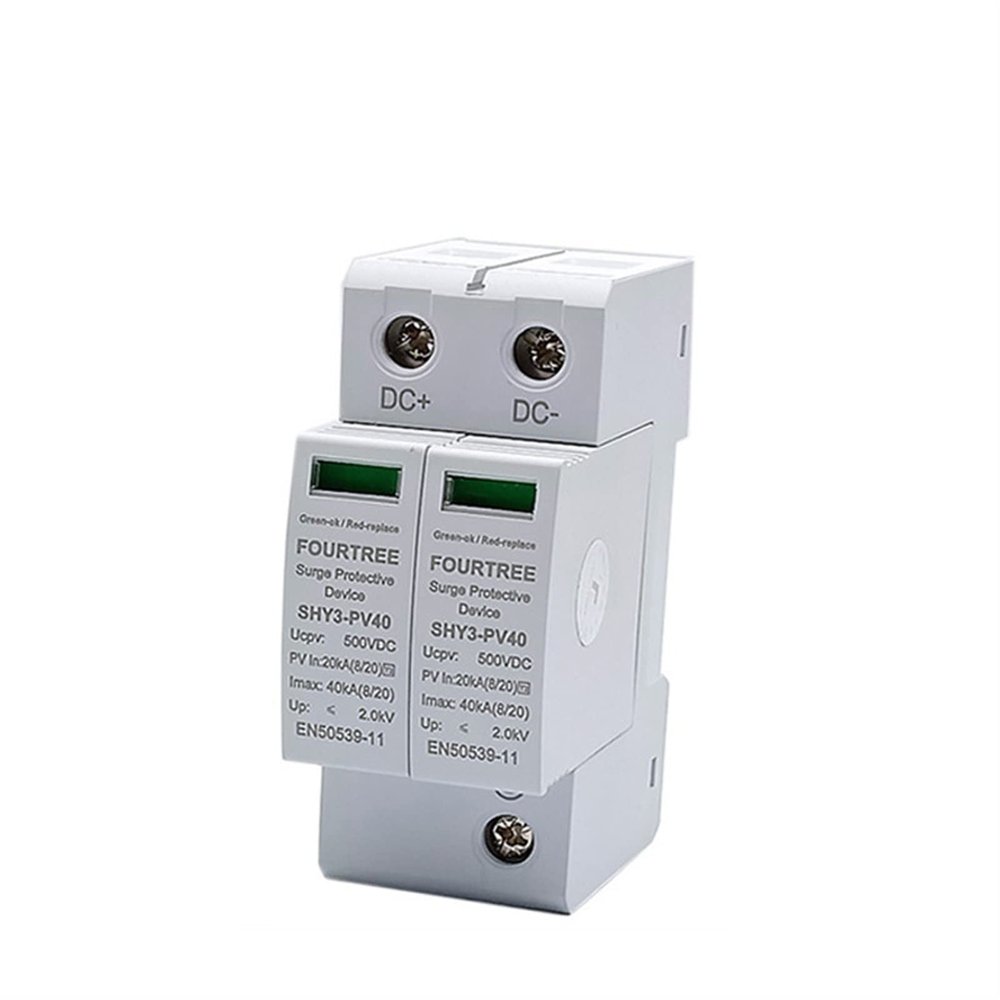

AXTI PV Surge Protector 2P 500VDC 3P 1000VDC Arrester Device SPD Household Switch Solar Power System Combiner Box Laser Marking (Color : 3P, Size : 10-20KA)

Description

• Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
• The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
• Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
• Quality Materials: Using quality materials, strong and durable, has a long service life.
• Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.

Specification:
SHY3-PV Solar power system.
Product Description:
1. Plug in/out style surge protecive device.
2. THe coler of visible window shows operating status.
3. Double protection of over-heat and over-current.
4. Have the accessory of remots signaling interface,could be remote remote control.
Installation instructions:
1. Before installing. you must cut off the power supply. don't operate in the charged state.
2. We suggest a fuse or automatic circuit breaker should be connected in series before the lightningproof module.
3. In installing, Please connect with the installation diagram, as shown in diagram,"+"represents the anode wire,"-" Pepresents the cathode wire, PE represents the earthing wire, the wrong connection is unallowable. After the installtion is finished, turn on the swich of automatic circuit breaker(or fuse), to check whether the working state is normal ot not.
4. After the installation is completed, insert the module properly, and check whether the lightningproof module works normally or not.
5. In the period or using the lightningproof module, inspect, test and view the fault display window state regularly, when the fault display window is red or the remote-signalling terminal outputs the alarm signal, this means the lightningproof module has the fault, you shall repair or change it in time.
6. The parallel power lightningproof module shall be installed in parallel, the wire shall be short, thick and straight, connected firmly and reliably.
Main Technical Parameters:
Name
Series No.
Speci-fications
Nominal capacity the flow In(KA 8/20s)
Maximum flow capacity lanx(KA8/20s)
Protection level(KV)
Response time(ns)
Rated coltage(VDC)
Continue to work voltage(VDC)
Leakage current 0.75U 1mA(A)
Working temperature
(c)
500V
DC llghtning protection chlp
RND1-c/40
236mm
20
40
2.2
25
500
550
