BOSS Audio Systems AVA1210 7 Band Pre-Amp Car Equalizer with Gold-Plated Front Rear and Subwoofer Outputs

Description

• Front Adjustable EQ Band Frequencies: 125 Hz, 500 Hz, 3.5 kHz, 12 kHz
• Rear Adjustable EQ Bands Frequencies: 50 Hz, 600 Hz, 6.3 kHz
• Switchable Subwoofer Filter 32 Hz 128 Hz, Frequency Response 10 Hz 15 kHz
• Inputs: Dual 2 Channel Source. Outputs: Front, Rear & Sub. Fader Control
• Gain + / - 18 dB, Maximum Input Voltage 15 Volts, Maximum Output Voltage 8 Volts
• Signal to Noise Ratio > 110 dB, Channel Separation 20 dB, Total Harmonic Distortion 0.050
• Dimensions: Depth 4.6 x Width 7 x Height 1
• 1 Year Warranty
• 7 Bands
• RCA Input; Subwoofer output
• Subwoofer level control; Preamp/amplified, Preamp
• Night illumination
• Subwoofer Level Control

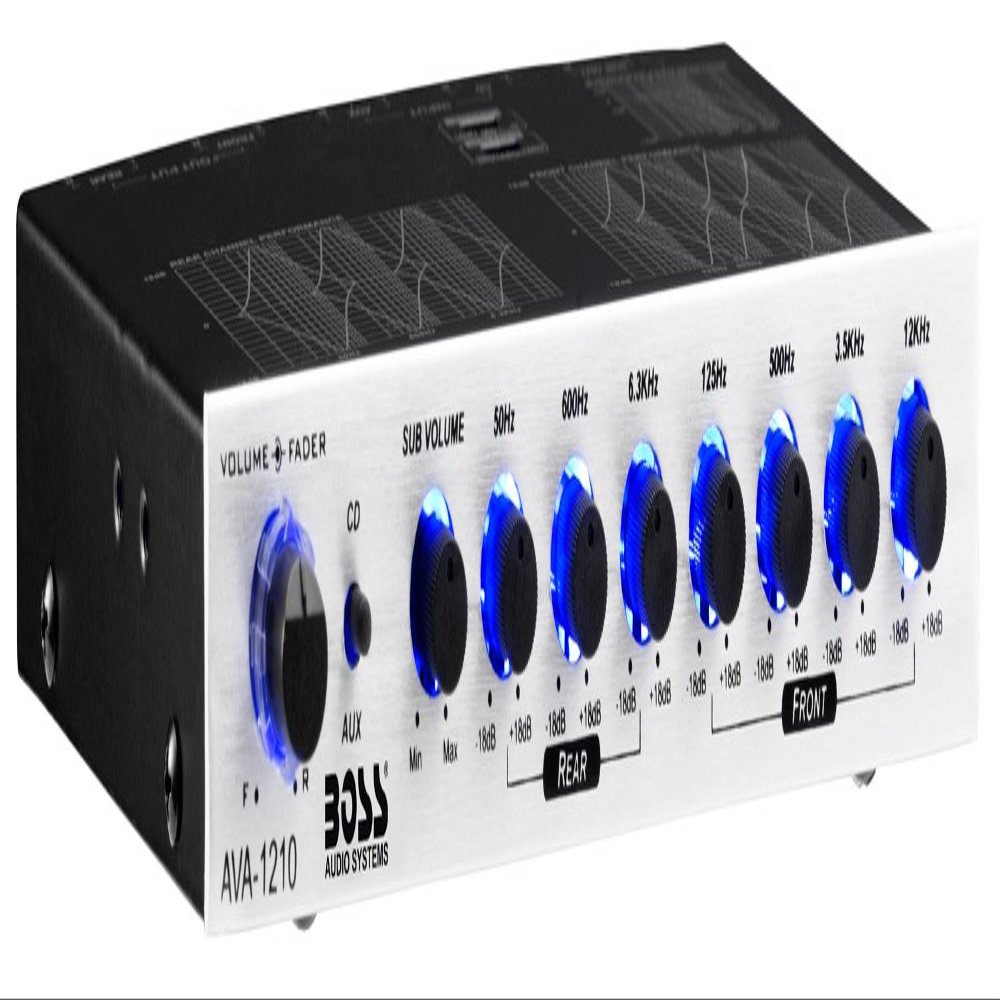

Front panel controls
View larger Installation
View larger Installation
Set your source volume at a position between 6 oclock and 9 oclock, and leave it at this setting. Always use the AVA1210 volume control as a master main volume control. It has better electronics, higher signal to noise ratio and is more linear than any source unit volume control available. If engine noise is audible, check the ground connection on all units and in the audio system. Features Volume control with up to 8 volts RMS of output Seven band equalizer with 18 dB boost/Cut Specific bandwidth for each band Low noise BI-FET op-amp design yields minimum distortion On-board 30 volt BI-Polar switching power supply Subwoofer outputs and level controls Subwoofer frequency selection switch (32Hz/64Hz/128Hz) Input selector for AUX or CD Universal half-DIN chassis for ease of installation Gold plated RCA input/output connectors 20 dB headroom eliminates signal overload Blue light illumination Specifications Frequency bands: Front channel 125Hz, 500Hz, 3.5kHz, 12Khz / Rear channel 50Hz, 600Hz, 6.3kHz Boost/Cut: +/-18 dB Signal to noise ratio: 110 dB ref 1 volt input Frequency response: 1Hz 15kHz, +/-1 dB Maximum output voltage: 8 volts RMS Total harmonic distortion: 0.05% Input sensitivity: 150mV Headroom: 20 dB Input impedance: 10k Ohms Stereo separation: 82 dB/1kHz Operating voltage: 11-15 volts negative ground Output impedance: 50k Ohms Dimensions: 1 x 7 x 4-9/16 / 27.5mm x 178mm x 115mm
