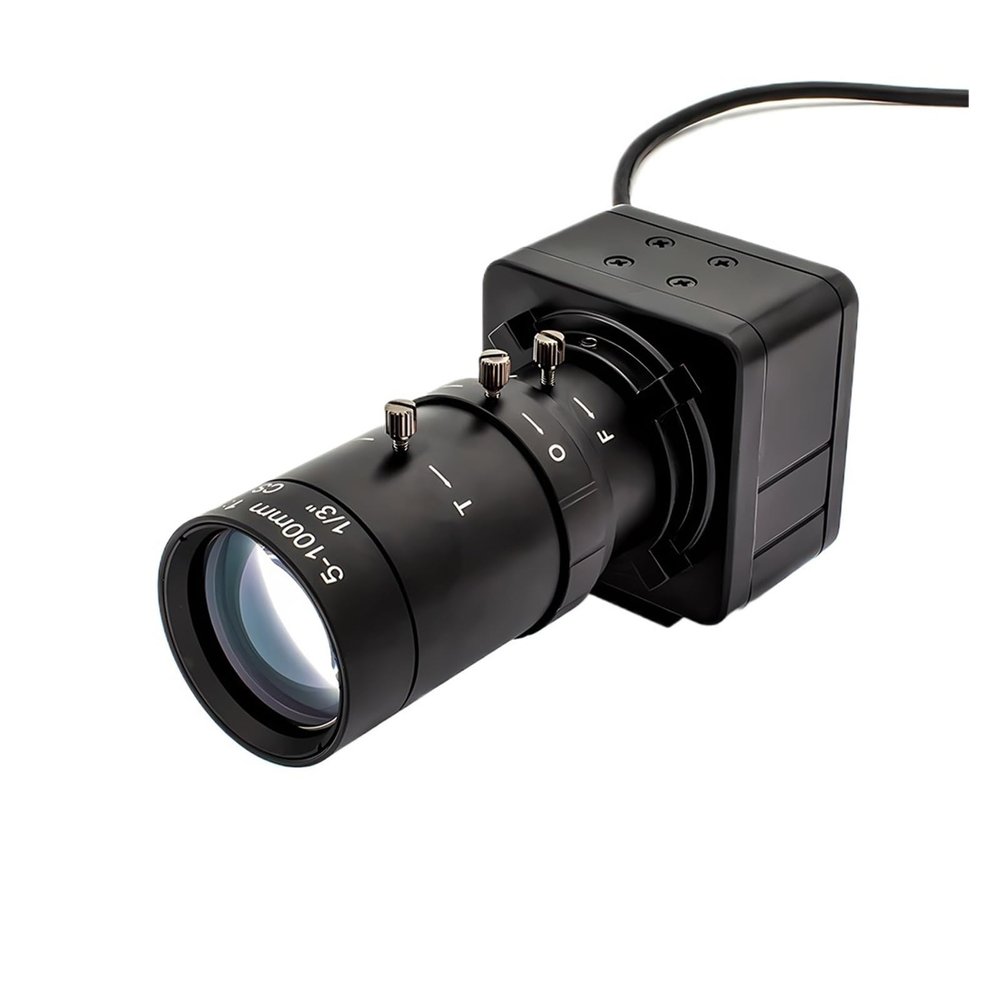

BQHHWTZ 4K MINI Type IP Camera 100mm Varifocal Lens for POE NVR System Indoor Home P2P System Video Surveillance

Description

• BQHHWTZ 4K MINI Type IP Camera 100mm Varifocal Lens for POE NVR System Indoor Home P2P System Video Surveillance

2.5-100mm CS Mount Lens
3.High frame rate MJPG deliver 25fps in 2560x1440 resolution, 25fps in 1920X1080 resolution.
5.Super small outline and thin profile for embedded applications.
Specification
3/4/5/8MP
System structure
Embedded RTOS design, dual-core 32-bit DSP(NT98566), pure hard compression
Sensor
8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2
5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2
Video processing
H265AI/H.265+(compatible with H.265/H.264) encoding, dual stream, AVI format;
The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second
Image output
Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps;4MP 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps;
Substream: 800*448@25fps
Shutter
1/50(1/60) second to 1/10,000 second
Lens
Focal length and zoom lens, optional (2.8mm/4mm/6mm/8mm/12mm/16mm/25mm/2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm)
Day-night switching mode
Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V
Noise reduction
Support 2D/3D noise reduction
Wide dynamic
Supports digital wide dynamic
Audio processing
G.711A COdec standard, supporting audio and video synchronization
Audio interface
1 input, level 2Vp-p, resistance 1k, support pickup input; 1 channel output, resistance 16k, 30mw output power, support to connect headphones or public amplifier
Network interface
1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP (combined with power interface)
Signal interface
1 photoresistor interface, 1 IR-CUT driver interface, support photoresistor input signal and IR-CUT, infrared lamp linkage
Intelligent analysis
Supports humanoid detection, face detection, and customization of other intelligent functions
Business function
support
Mobile phone surveillance
Power source
Power supply DC12V/2A, power consumption 3W
Plate size
38mm*38mm
Instructions
Support POE power supply, light board drive voltage at 3.3V
Rreliability
About RTSP
Address stream:
Enter the network URL in Please enter network URL:
rtsp://10.6.3.57:554/user=admin&passwordchannel1&stream0sdp?
10.6.3.57 This is the IP of the connected device
:554 This is the port number of the RTSP service, which can be changed in the device's network service
user=admin This is the login user name for the device
password= Password blank
channel=1 First channel
stream=0.sdp?Main code stream
stream=1.sdp?Auxiliary code stream
rtsp://192.168.1.10:554/user= admin&passwordchannel1&stream0sdp?
rtsp://10.6.3.57:554/user=admin&passwordchannel1&stream0sdp?
10.6.3.57 is the device IP address
:554 is RTSP port,can reset in device network service
user=admin is device user's name
password= no pass word
channel=1 refer to Channel No.1
stream=0.sdp? mainstream
stream=1.sdp? substream
About computer operation and use
Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)
Step 1 : Install VMS
VMS Computer Client: Contact customer service to obtain the VMS installation package
Step 2: Login VMS
UserName: admin,Password:admin
Step 3: Find your camera and add
Bit Depth : 8Bit
Movies File Formats : H.264/H.265/H.265+
Additional Function : Camera Function
Pixels : 8 million
Weight : 301g-400g
NightShot Function : No
Touch Screen : No
Sensor Type : CMOS
Type : Professional
High Definition Support : 4K
Sensor Size : 1/2.8 inches
Use : Professional
Image Stabilization : No image stabilization
Specification : 3/4/5/8MP
Sensor : 8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2 5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2
Video processing : H265AI/H.265+ compatible with H.265/H.264 encoding, dual stream, AVI format; The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second
Image output : Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps; 4MP 2560*1440@25fps; 3MP 2304*1296@25fps; 2MP 1920*1080@25fps; Substream: 800*448@25fps
Lens : 5-50mm CS Mount Lens
Day-night switching mode : Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V
Noise reduction : Support 2D/3D noise reduction
Network interface : 1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP combined with power interface
Intelligent analysis : Supports humanoid detection, face detection, and customization of other intelligent functions
Power source : Power supply DC12V/2A, power consumption 3W
Plate size : 38mm*38mm
Instructions : Support POE power supply, light board drive voltage at 3.3V
