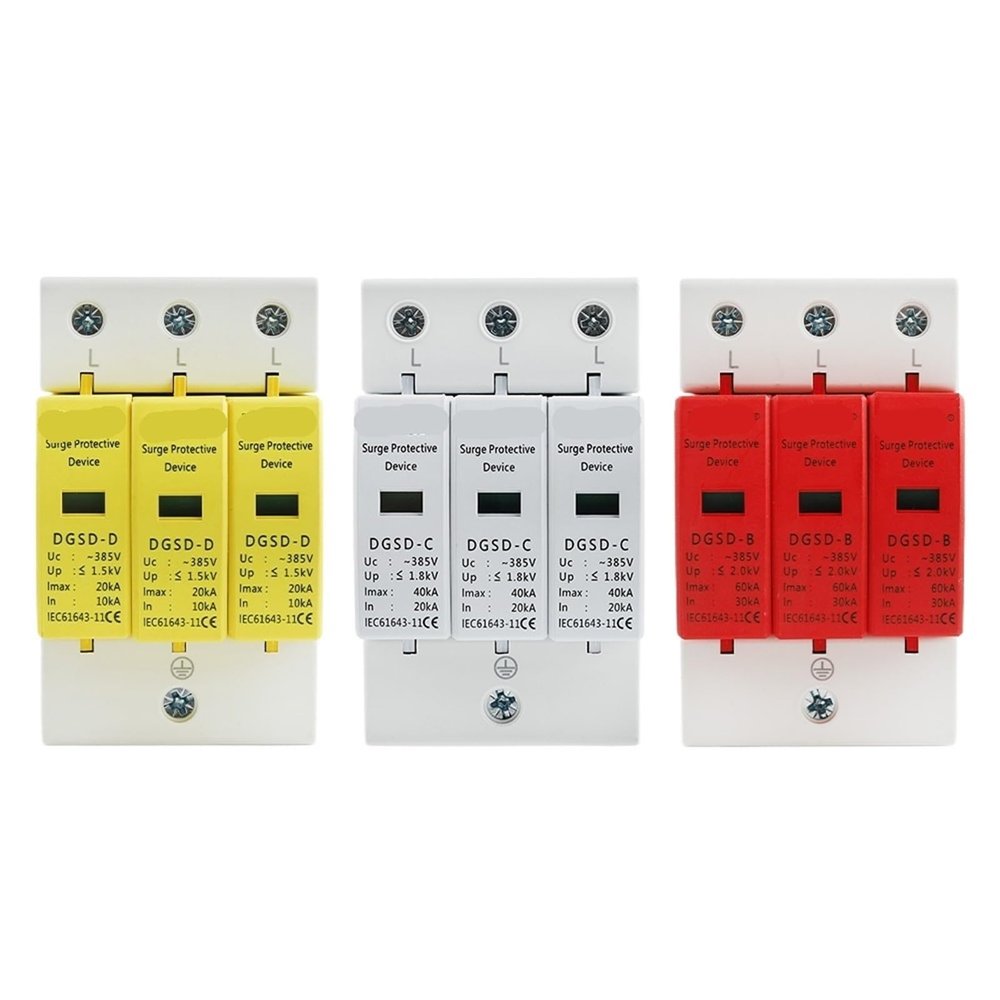

BQHHWTZ AC SPD 3P House Light Surge Protector 10-20KA 20-40KA 30-60KA 385V 2P+N Solar PV Protective Low-Voltage Arrester Device

Description

• BQHHWTZ AC SPD 3P House Light Surge Protector 10-20KA 20-40KA 30-60KA 385V 2P+N Solar PV Protective Low-voltage Arrester Device

AC Surge Protective Device (SPD) :Professional solutions for protecting your electrical systems and on-load apparatus from light and transient over-voltage.
Parameter
Model:DGSD-D
Model:DGSD-C
Model:DGSD-B
Nominal Discharge Current
10 kA
20 kA
30 kA
Max Discharge Current
20 kA
40 kA
60 kA
Rated Operating Voltage
275VAC/385VAC/420VAC/440VAC
Rated
50/60 Hz
Voltage protection level
1.5KA
1.8KA
2.0KA
Standard Compliance
IEC/EN 61643-11
Number of Poles
1/2/3/4P
Certification
CE
Protection level
IP20
Installation method
35mm Din Rail
Type : Mini
Model Number : 3P DGSD-D/DGSD-C/DGSD-B
is_customized : Yes
Is Smart Device : No
Rated Voltage : 220V
Origin : Mainland China
Certification : CE
