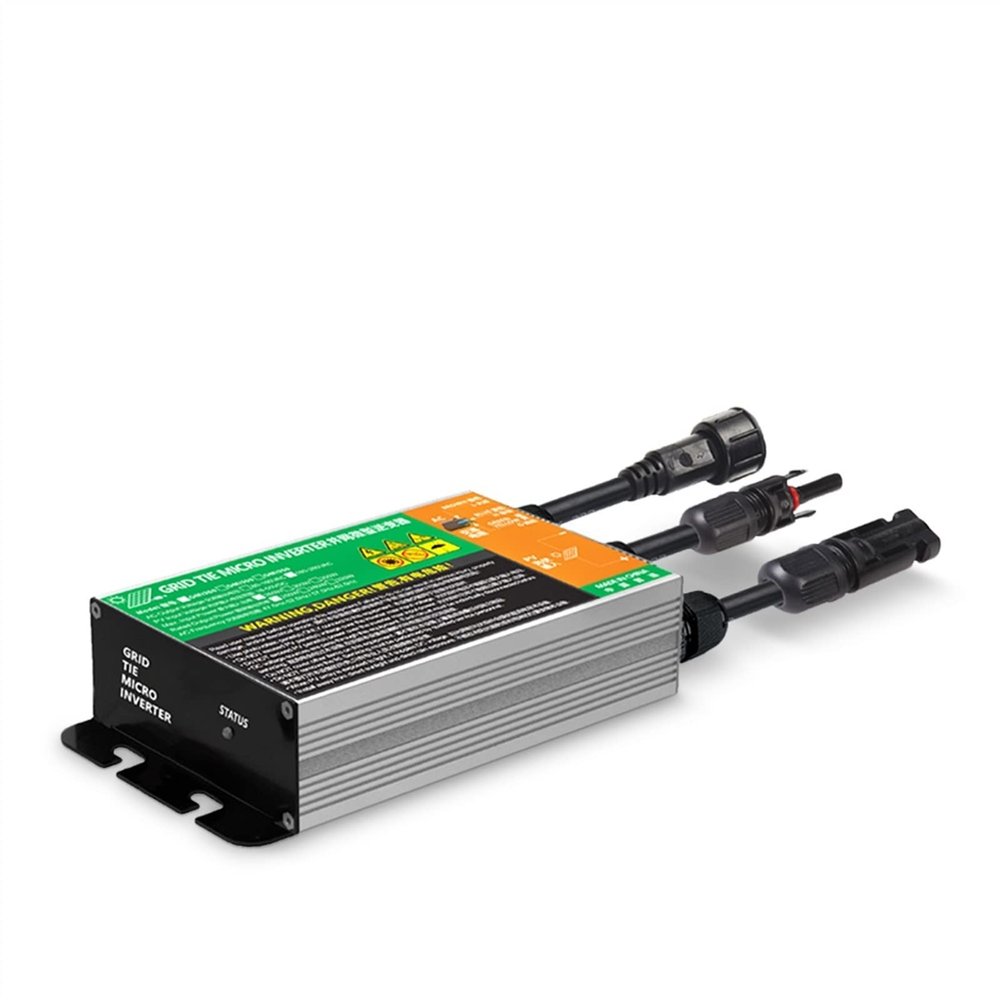

Car Inverter, Solar Grid Tie Micro Inverter 120W 150W 180W MPPT Solar PV Grid Tie Micro Inverter GMI Series DC Input 10.8V To 30V AC Output 80V To 280V 50Hz 60Hz Inverters for RV, Truck(GMI150L,10.8V-

Description

• > Use solar panel only connect to this equipment. This equipment is ON-GRID Microinverter. To make it work properly, it must be connected to the power grid correctly, and the power grid is working properly. When the power grid stopped working, it will also stop generating.
• <30)
• > Do not exceed PV panel(s) power over the On Grid inverter max input power. (120W/150W/180W)
• > The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• > Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)

Solar Grid Tie Micro Inverter 120W 150W 180W MPPT Solar PV Grid Tie Micro Inverter GMI Series DC Input 10.8V To 30V AC Output 80V To 280V 50Hz 60Hz Inverters

Description:
120W/150W/180W grid tie inverter is a compact unit, which directly convert direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from micro inverter is synchronized and in-phase with the utility grid.

Regarding the heating problem of the inverter:
This is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.

About the upgrade of the inverter:
In order to better protect the inverter, we have upgraded the drive of the inverter. When the inverter reaches a certain temperature, it loses half of its power. When the thermal temperature drops to normal, it outputs full power again. If still unable to output full power, disconnect and reconnect.

About voltage:
Recommended solar panel voltage: Vmp 16-21V; Voc 20-24V (120W/150W/180W)

LED Display:
1. Green light steady=Microinverter in generating.
2. Red flash=Microinverter in waiting.
3. Red light steady:
> Island protection.
> Over-temperature protection.
> Over/Low AC voltage protection.
> Over/Low DC voltage protection.
> Over/Low AC frequency protection.
> Fault.

User notice:
> Use solar panel only connect to this equipment.
> This equipment is ON-GRID Microinverter. To make it work properly, it must be connected to the power grid correctly, and the power grid is working pro
