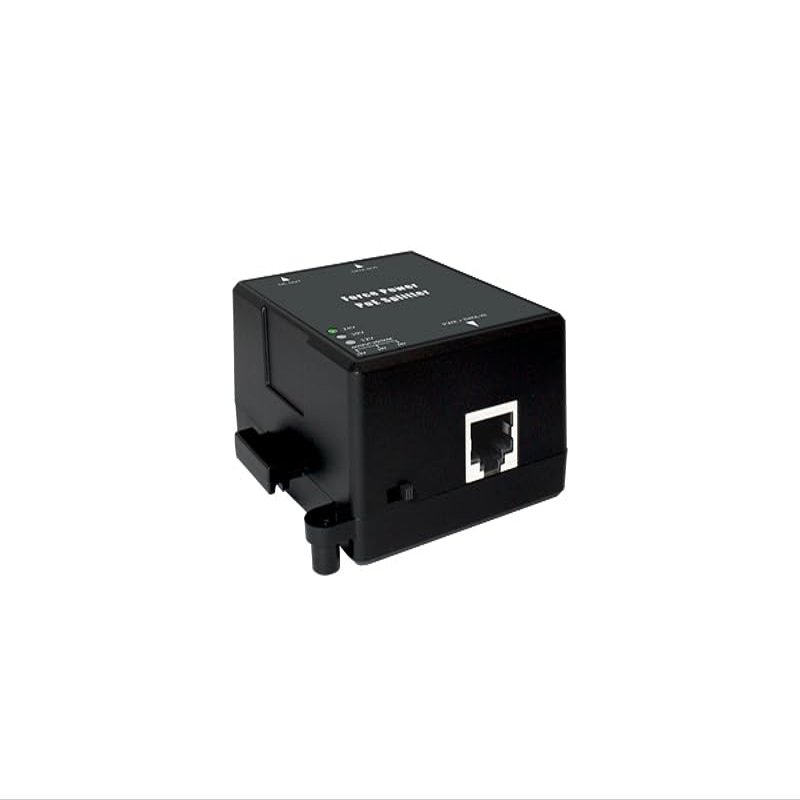

Cerio POE-PD04S+ 10/100/1000M/Multi Gigabit 802.3at Class4 to DC12-24V PoE Splitter

Description

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500 /5000 BASE-T, IEEE 802.3at/af PoE standards.
• Supports 1/2.5/5Gbps Multi Gigabit Ethernet.
• The PoE splitter can use to connect non-PoE 802.3at /af compliant devices to PoE injector or PoE switch.
• Supports Output Voltage hot switching for 12VDC/19VDC/24VDC three range adjustable.
• When using Active or Passive PoE 30Watts or up as input, the maximum power output up to 27Watts.
• Supports Ethernet PoE to separate to only DC/Power and only Ethernet/Data.
• Supports power reverse acute protection design, and auto restarts to protect possible short circuit, which can reduce the damage caused by the short circuit.
• LED indicators for Power function enable and DC output voltage display of 12V/19V/24V.
• Bundle accessories for inside diameter 2.1 mm (PHY) to 2.1 (PHY) mm DC cable.
• Supports desktop or wall mounting installation and multiple units combination for easy to bundles organize the Ethernet cables.

The CERIO POE-PD04S+ provides Multi Gigabit Ethernet capability and is backward compatible with 10/100/1000Mbps network standards. It supports IEEE 802.3at PoE+/802.3af PoE standards and provides PoE 44~57V Ethernet power + data input to separate to only DC/Power output and only Ethernet/Data output. Supports DC output voltage 12V, 19V and 24V via DIP switch three range adjustable.
