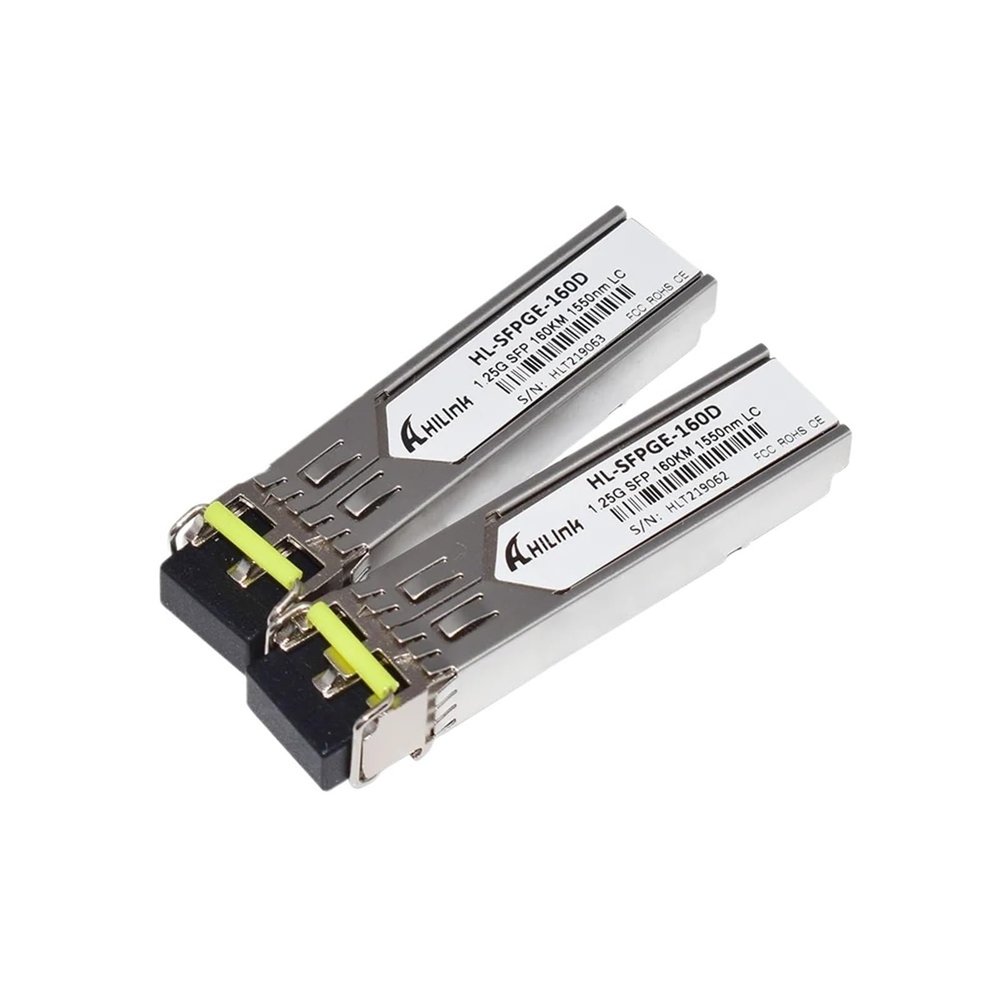

CIZVVEOC 1000BASE 1550nm 1.25G 160KM GLC-ZX-SM SFP Transceiver DOM Opatica(10 pcs)

Description

• 1000BASE 1550nm 1.25G 160KM GLC-ZX-SM SFP Transceiver DOM Opatica

1000BASE 1550nm 1.25G 160KM GLC-ZX-SM SFP Transceiver DOM Opatica
General
160km Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are compliant and lead-free.
Features
Up to 1.25Gb/s dual data links
-pluggable SFP footprint
1550nm DFB laser transmitter
APD Receiver
Duplex LC connector
Up to 160km on 9/125m SMF
Metal enclosure for lower EMI
Single +3.3V power supply
<;700mW
Commercial operating temperature range: 0C to +70C
Applications
Gigabit Ethernet
1.06 Gb/s Fibre Channel
When bidding the product, please leave message for your switch .
1.25G SFP Transceivers
GLC-SX
100BASE-SX SFP 850nm LC 550M
GLC-LX/LH
100BASE-LH SFP 1310nmLC 10KM
GLC-EX-1310
100BASE-EX SFP 1310nm LC 40KM
GLC-EX-1550
100BASE-EX SFP 1510nm LC 40KM
GLC-ZX
100BASE-ZXSFP 1550nm LC 80KM
GLC-ZX-120
100BASE-ZX SFP 1510nm LC 120KM
GLC-ZX-160
100BASE-ZX SFP 1550nm LC 160KM
GLC-ZX-200
100BASE-ZX SFP 1510nm LC 200KM
Product Show
Optical Characteristics (TOP=25C, Vcc=3.3 Volts)O
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Supply Voltage
Vcc
3.00
3.60
V
Supply Current
Icc
300
mA
Transmitter
Input differential impedance
Rin
100
2
Single ended data input swing
Vin, pp
250
1200
mV
Transmit Disable Voltage
VD
Vcc 1.3
Vcc
V
Transmit Enable Voltage
VEN
Vee
Vee+ 0.8
V
Transmit Disable Assert Time
10
us
Receiver
Single ended data output swing
Vout, pp
200
800
mV
3
Data output rise time
tr
175
ps
4
Data output fall time
tf
175
ps
4
