CM5-NANO-A Nano Base Board for Raspberry Pi Compute Module 5 | Compact CM5-Compatible GPIO, USB 3.2, MIPI Interfaces | Evaluation & Integration Board for CM5 Lite/eMMC

Description

• Compact Pi CM5 Base Board Same size as Compute Module 5, ideal for space-constrained environments with full functionality for CM5 Lite/eMMC evaluation and integration.
• Multi-Interface Support for CM5 Features 40-pin GPIO, USB 3.2 Gen1 Type-A port, dual MIPI 4-lane interfaces (22-pin FPC), and TF card slot for flexible peripheral connectivity.
• Universal CM5 Socket Compatibility Supports all Compute Module 5 variants, including Lite (TF card boot) and eMMC models, ensuring seamless integration into end products.
• 5V Power & Industrial-Grade Design Built for reliability with 5V input and a durable layout optimized for industrial, embedded, or IoT applications.
• Plug-and-Play CM5 Development Board Streamline prototyping with ready-to-use GPIO and MIPI interfaces, perfect for rapid testing or custom embedded systems.

Overview

The CM5-NANO-A Nano Base Board is a high-performance, compact development platform designed exclusively for the Raspberry Pi Compute Module 5 (CM5).
Measuring the same size as the CM5 itself, this ultra-slim base board delivers full functionality for evaluating CM5 Lite (without eMMC) and CM5 eMMC variants or
integrating them into final products.

Key Features:

Universal CM5 Compatibility: Equipped with a dedicated CM5 socket, this base board supports all Compute Module 5 variants. Use the TF card slot for CM5 Lite models or leverage onboard
eMMC support for streamlined deployment.
High-Speed Connectivity: Maximize performance with a USB 3.2 Gen1 Type-A port for peripherals and dual MIPI 4-lane interfaces (22-pin 0.5mm FPC connectors), enabling seamless camera/sensor
integration.
GPIO Expansion: The 40-pin Raspberry Pi-standard GPIO header ensures compatibility with HATs and third-party modules, simplifying prototyping.
Industrial-Grade Design: Engineered for reliability in narrow spaces, its 5V power input and robust construction suit industrial automation, embedded systems, and IoT devices.

Ideal for Developers & Engineers:
Whether testing the Raspberry Pi CM5s capabilities or deploying it in a production environment, the CM5-NANO-A provides a cost-effective, space-saving solution.
Its compact form factor and rich interfacesincluding MIPI, USB 3.2, and GPIOmake it perfect for robotics, machine vision, and smart appliances.

Specifications:

Power: 5V DC input
Storage: TF card slot (CM5 Lite models)
Interfaces: 1 USB 3.2 Gen1 Type-A, 2 MIPI 4-lane (22-pin FPC), 40-pin GPIO
Dimensions: Matches CM5 footprint for minimal space usage

Simplify your Compute Module 5 development with the CM5-NANO-Ayour gateway to powerful, compact embedded systems.

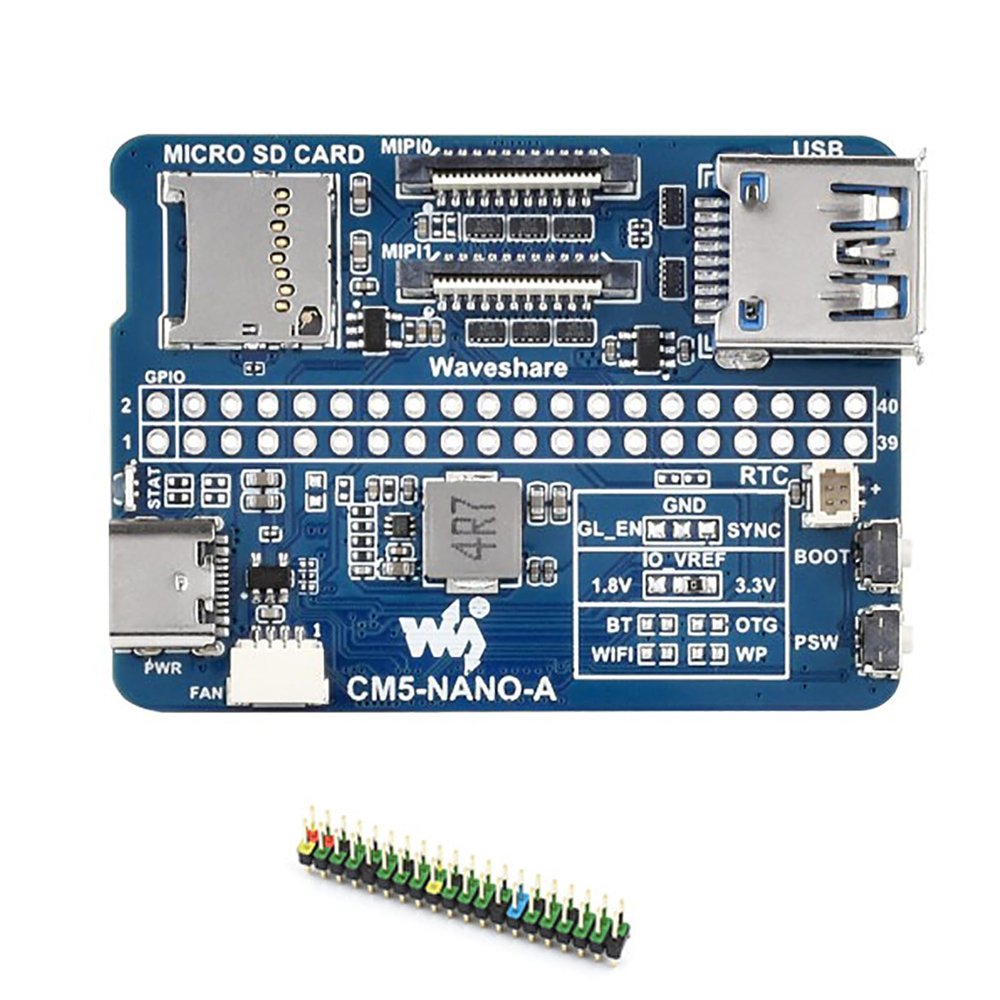

Package include

1. CM5-NANO-A x1
2. 2*20PIN color-coded straight pinheader x1
