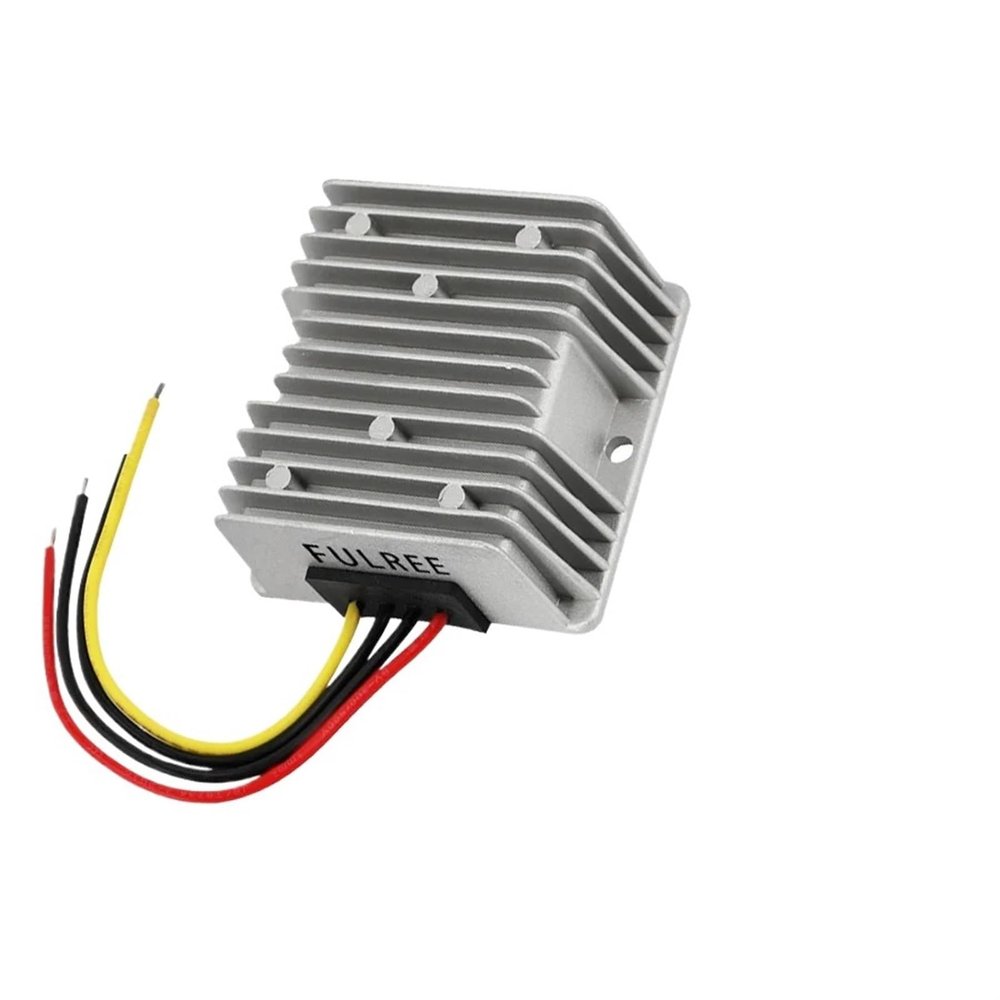

CSCPEXCZ DC 12V 24V to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 10A Step Down Voltage Power Converter Regulator 12 24 Volt to 5 6 9 V(12V_6V)

Description

• Power Converters
• DC 12V 24V to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 10A Step Down Voltage Power Converter Regulator 12 24 Volt to 5 6 9 V

Power Converters
DC 12V 24V to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 10A 20A 30A Step Down Voltage Power Converter Regulator 12 24 Volt to 5 6 9 V
Product Description
Product Name
DC DC Converter 12V 24V to 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 8A~30A
Model No.
F40J**V**A5L(First ** for voltage, Second ** for current)
Module Properties
non-isolated buckmodule
Rectification
rectification
Input (13-14cm)
Input Voltage
DC 12V 24V
Input Voltage Range
DC 10-40V(minimum input must be 3V higher than output)
Output (13-14cm)
Output Voltage
DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V
Output Current
10 Max
Output Power
90W Max
Conversion Efficiency
>90%
Voltage regulation
3%
Load regulation
2%
Ripple (Full load test)
<; 150mV
No-loadcurrent
<;100mA
Working Temperature
-40~80
Waterproof Rating
IP68
Protection
Over-currentprotection
Overheat protection
Output Short-circuit protection
Application
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
Certification
CE/RoHS
Case Material
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Product Size (L x W x H)
74*74*32MM
Product Weight
280g
