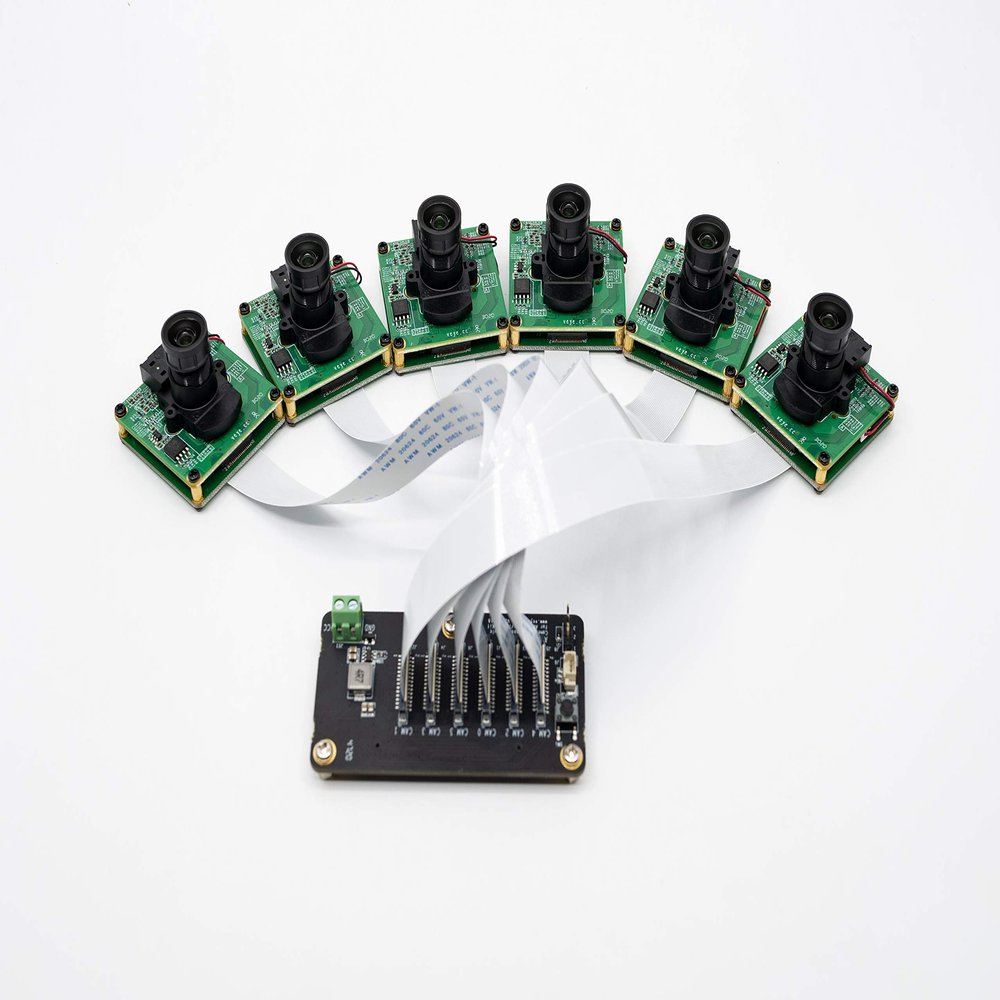

CS-TX2-XAVIER-nCAM-IMX462 for Jetson TX2 Devkit and Xavier, IMX462 MIPI CSI-2 2MP Star Light ISP Camera Module (1 cam YT1.0-4I)

Description

• Excellent low illumination and WDR performance1/2.8 inch 2 Mega sensor IMX3271080p@30fps mode
• Excellent ISP built-in;Uncompressed UYVY format, YUV422-8bit
• Open source driver and demo; Detailed documentation;Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX.
• A variety of lens optionswiki.veye.cc/index.php/Lens_select
• Default lens is YT1.0-4I;If you want YT1.0-4, YT1.0-6I,YT2.0-3.5I, YT2.4-4I,YT2.5-4.5I or YT1.6-3I please leave a message. The price is the same.

IMX462 is a back-illuminated sensor with extended red and near infrared response..
VEYE-MIPI-IMX462 is a camera module with excellent low illumination and wide dynamic performance.
This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...
+ 1/2.8 inch 2 Mega sensor IMX327
+ MIPI output: CSI-2
+ Uncompressed UYVY format, YUV422-8bit
+ Standard lens mount
+ IR-CUT circuit + BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable + Stream mode and Capture mode
+ Framerate control
+ Support Raspberry Pi, i.MX8m, JETSON NANO,TX2,Xaviar
+ Open source drivers and applications for all platform supported
+ Lens name: YT[F NO.]-[Focal length];YT1.0-4I mean F:1.0,4mm lens.

FAQ
Q:What should we do when we encounter technical problems?
A:You can submit your questions directly to our forum, and our engineers will reply to you as soon as possible: forum.veye.cc
Q:Where can I find ways to use the camera module?
A:For software usage or product details, please refer to wiki.veye.cc
