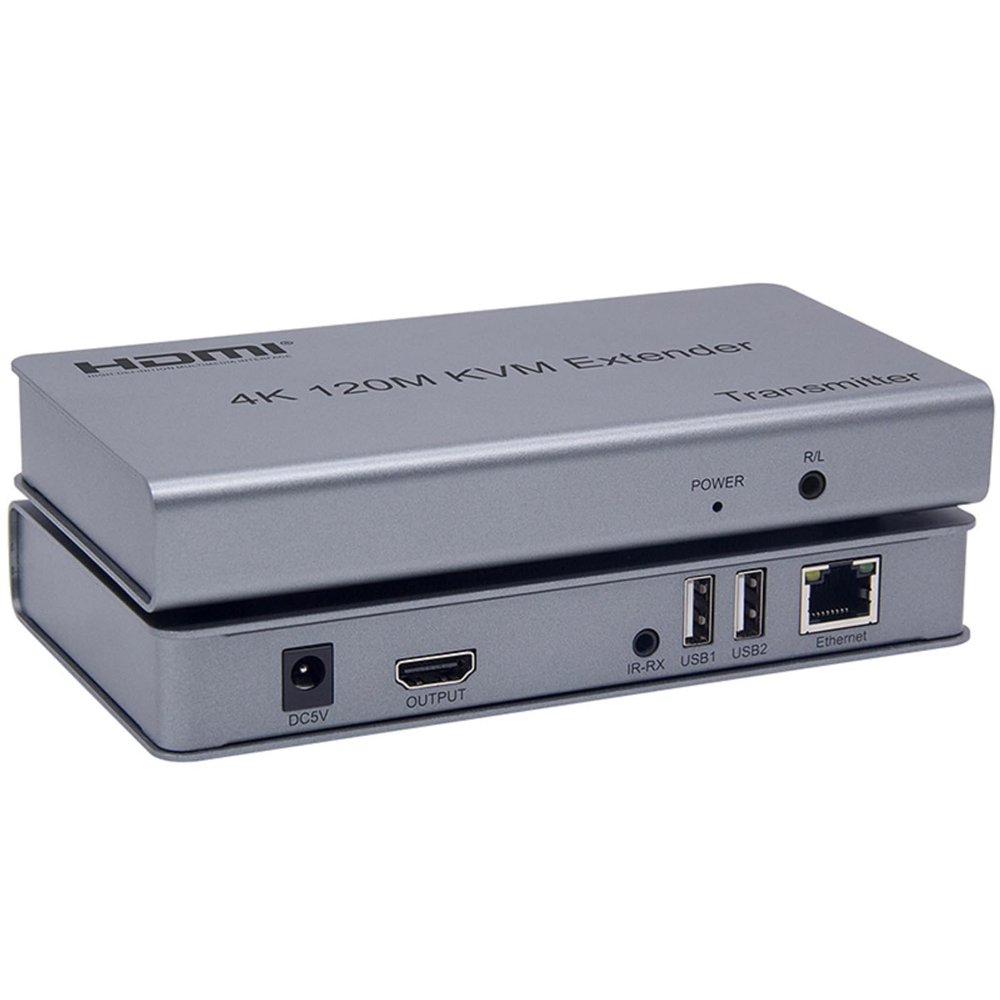

DAGIJIRD HD KVM USB Extender 4K@30HZ Over RJ45 Ethernet Cat5e/6, Up to 120M Keyboard & Mouse Ethernet Network

Description

• *Support HDMI 1.4/HDCP1.4;
• *Support local loop-out ;
• *Support 120m long distance transmission.
• *Low power consumption, low temperature and high safety;
• *Both the TX and RX support 3.5MM left and right audio output;

Specifications:
Length of CAT5e/CAT6 cable between Rx and TX: 120 meters
HDMI Input: 4k 30hz/1080p/720p/576p/576i/480p/480i
HDMI Output: 4k 30Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth: 340MHz
Max baud rate: 3x3.4Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable distance: 10m AWG26 HDMI standard cable
Output HDMI cable distance: 10m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current: 200mA
Power Supply: DC5V/1A
Operating Temperature range: 0C to +55
Operating Humidity range: 10% to 80%RH (No Condensation)
Storage temperature range: -10C to 70C
Storage temperature range: 5% to 90% RH (No Condensation)
Dimension (L x W x H): 163x85x24 (mm)
Audio format: Stereo
TX Weight: 499g
RX Weight: 494g

Features:
*Support HDMI 1.4/HDCP1.4;
*Support local loop-out ;
*Support 120m long distance transmission.
*Low power consumption, low temperature and high safety;
*Both the TX and RX support 3.5MM left and right audio output;
*Support IR control;
*Support USB mouse and keyboard extension;

Package includes:
1x Transmitter
1x Receiver
1x USB cable
1x IR-RX cable
1x IR-TX cable
2x DC 5V/1A selectable Power adapter
1x User manual
