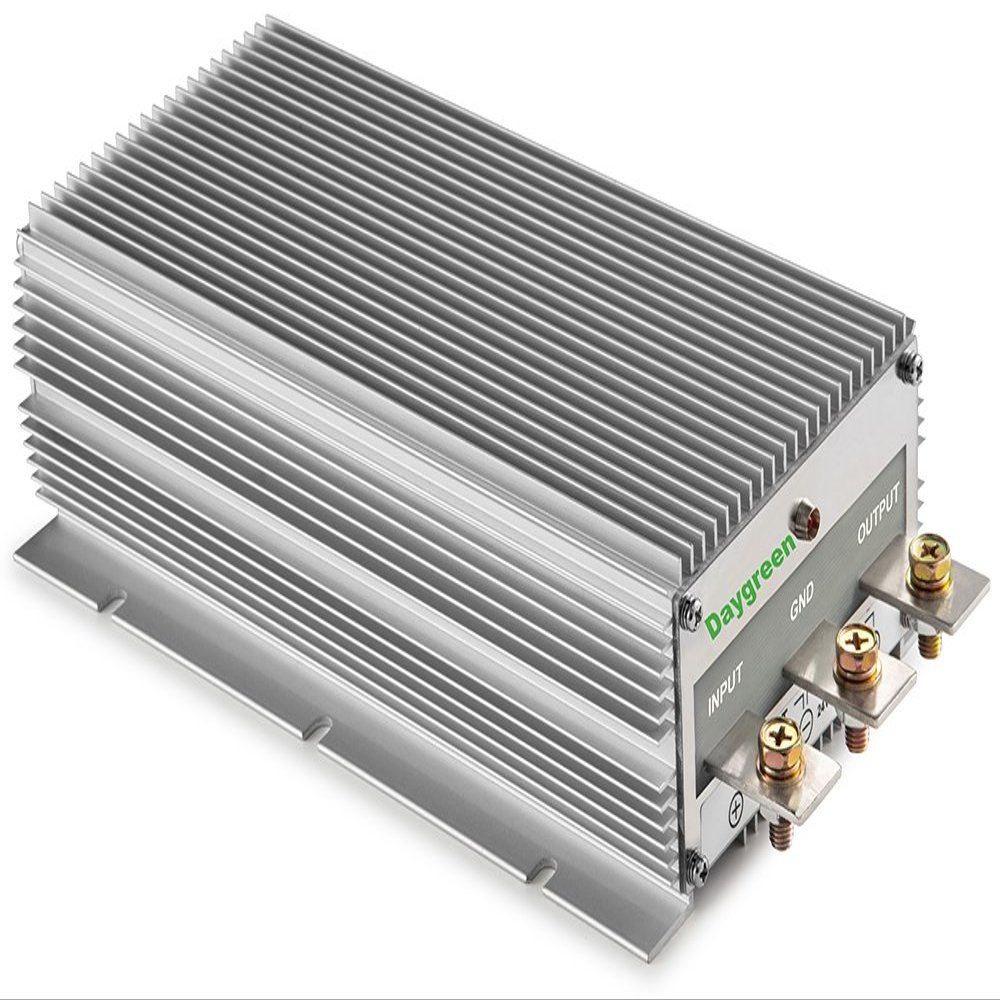

Daygreen 12V to 48V 20A 960W Step Up DC DC Converter, Non-Isolated

Description

Wiring: INPUT+ to BAT+, GND to BAT-, OUTPUT+ to LOAD+, GND to LOAD-
Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.

Daygreen P/N: H20-12-48
Efficiency: 95%
Input Voltage: 11-16VDC
Output Voltage: 48VDC
Output Current: 20A
Ripple: 400mVp
Line Regulation: 0.2%
Load Regulation: 0.2%
Voltage Accuracy: 1.5%
Enclosures: IP68
Dimension: 220*127*63mm
Net Weight: 2.2kg
Case Operating Temperature: -40~85C
Certificates: CE Rohs
Warranty: 1 year
MTBF: 100,000 hours

Application:
12V DC battery of vehicles as input power to 48VDC appliances as output load.

How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.7=14.28A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
