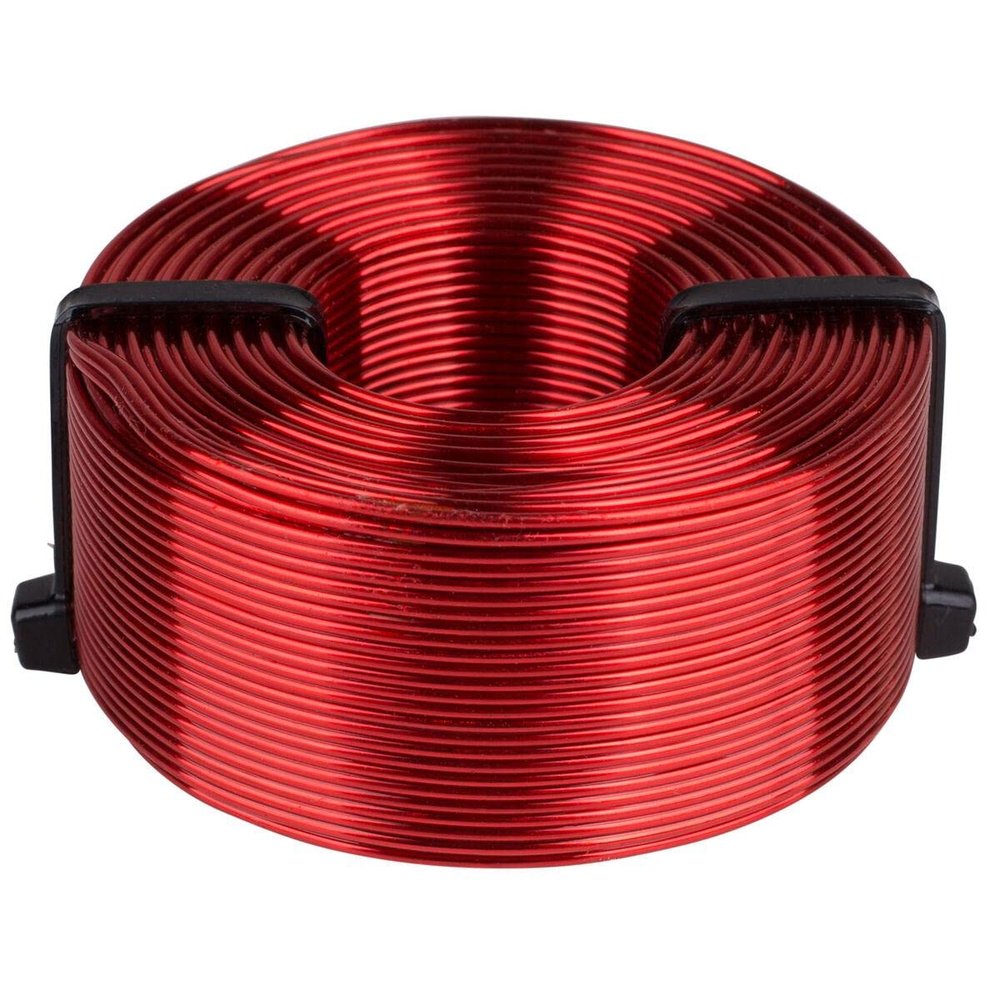

Dayton Audio LW185-5 5.5mH 18 AWG Perfect Layer Inductor

Description

• Highly refined copper wire
• Baked enamel insulator
• Perfect layer windings
• Air core construction
• 300 watts RMS power handling

Quick OverviewDayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions. Product Highlights Highly refined copper wire Baked enamel insulator Perfect layer windings Air core construction 300 watts RMS 3% Tolerance Product Manuals / Spec Sheets / Downloads Dayton Audio LW185-5 Mechanical Drawing AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis Product Description Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator, and perfect layer construction. The thin enameled wire permits the tightest windings to minimizes DCR and air core construction to ensure no hysteresis and saturation distortions. Specifications: Inductance: 5.5 mH Wire gauge: 18 AWG Core type: Air DC resistance: 1.47 ohms Tolerance: 3% Power handling: 300 watts RMS Dimensions: 2.31" x 1.04" H (59 x 26.5 mm). Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%. Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other. Product Details Model Number LW185-5 List Price -- Unit of Measure Each UPC 848791003486 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.93 Product Weight -- Product Height 26.5 mm Product Width 59 mm Dia. Product Length -- Product Depth --
