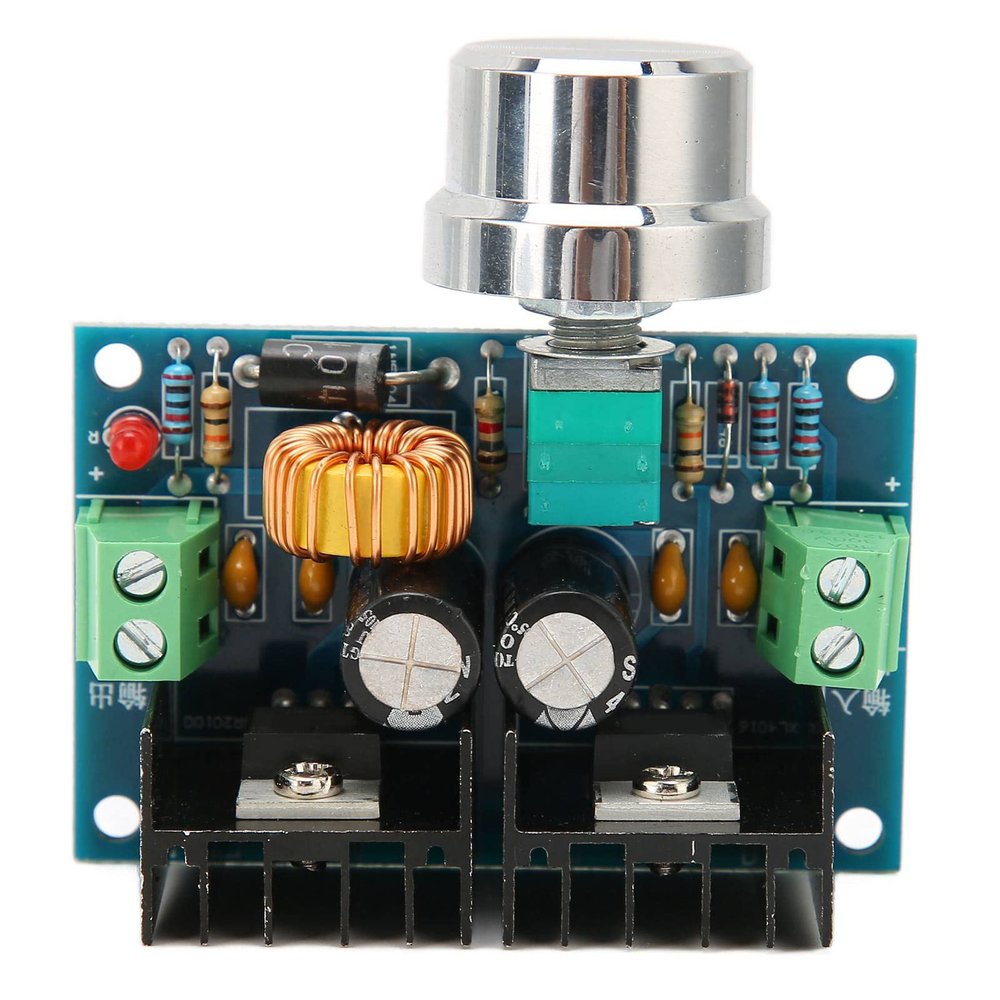

DC Voltage Regulator Adjustable Converter Circuit Board Module with PWM Modulation

Description

• Basic Specifications: This regulator combines XL4016 switching regulator chip and MBR10200 double rectifier, the maximum input voltage is 40V, and the output voltage is 1.25-36V continuously adjustable
• Multiple Protections: Adopts overcurrent , over temperature and short circuit , etc., and has been tested for stability, consistency and reliability
• High Efficiency: The conversion efficiency is as high as 94%, the switching frequency is 180KHz, and the adjustment method is PWM modulation
• Application: This DC voltage regulator can be widely used for development, student experiments, maintenance, production, etc.
• Convenient module can be adjusted or turned off through the knob, more convenient to operate and safer to use

Specification:
Item Type: DC Voltage Regulator
Material: Plastic
Adjustment Method: PWM Modulation
Input Voltage: DC4-40V
Output Range: DC1.25-36V
Maximum Current: 8A
Maximum Power: 200W
Conversion Efficiency: 94%
Switching Frequency: 180KHz
Appearance Size: Approx. 61 x 41 x 27mm / 2.40 x 1.61 x 1.06"

Package List:
1 x Voltage Regulator Module

Note:
When the maximum output current of 8A is reached, fan needs to be added. Long term work is recommended about 5A

How to Use:
The DC converter can be panel mounted
1. Drill a 7mm hole in the panel
2. Take the potentiometer handle out of the panel
3. Tighten the screw and install the knob
