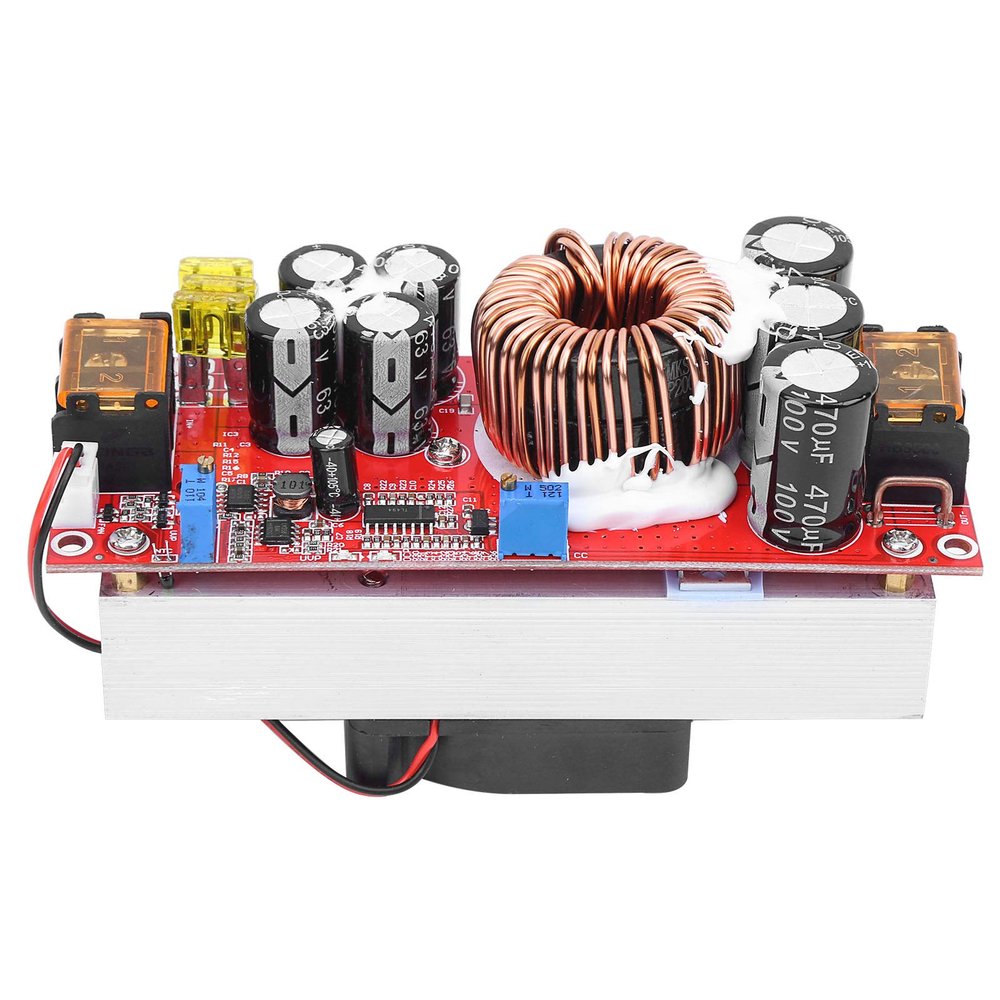

DC-DC 10-60V to 12-97V 1500W 30A Automatic Step UP/Down Converter Boost/Buck Voltage Regulator Module CC CV Power Supply Module,DC to DC Module, DC to DC Module, DC-DC 10-60V to 12-97V 1500W 30A

Description

• DC to DC Power Converter: This is a non-isolated DC regulated power converter module with long service life.High power and stable output, it converts DC10V-60V to 12?97V continuously adjustable.High quality components ensures high conversion efficiency, up to 92% to 97%. DC-DC1500W 30A High Current Constant Voltage Constant Curren
• Intelligent Temperature Control: Designed with smart temperature control fan, which will automatically work when temperature reaches about 60, and stop when temperature drops below 60.(if temperature is too high, please enhance heat dissipation)
• High Precision: Input Voltage: DC10-60V;Output Voltage: 12?97V continuously adjustable (cannot be used to step down voltage); Constant Current Range: 0.8?22A(+/?0.3A); Operating Temperature: -40 to +85;Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be) nt Boost Solar Charging LED Driver Power Module
• Current Adjustment: Adjust the CV potentiometer, set the output voltage according to the load requirements; Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current.
• Kind Tip:If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be.Please do not use short circuit to adjust current.

Specification:
Name: 1500W step up constant current module
Type: Nonisolated stepup module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 10V30V input voltage, maximum current is 35A40A; 3160V input voltage, maximum current is 30A35A
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 1297V continuously adjustable (cannot be used to step down voltage)
Constant Current Range: 0.822A(+/0.3A)
Reverse Input Protection: Yes (150A power MOS reverse protection)
Input Low Voltage Protection: Yes (10V50V adjustable, selfrecovery)
Operating Temperature: 40 to 85(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Input Over Current Protection: Yes (automatically protect when input is more than 40A, and power supply voltage will not increase)
Short Circuit Protection: Yes (input 60A fuse) please operate carefully, try not to cause short circuit.
Reverse Input Protection: Yes ((150A power MOS tube, can be connected reversely for long time)
Installation Method: Four 3mm standoffs
Wiring Method: Terminal blocks (Please use large current copper wire)
Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W)
(If input 24V, the maximum output power=24V*30A = 720W)
Weight: 372g / 13.1oz (approx.)

Package list:
1 x Module

Note:
Please note that the fan of this product will be sent randomly, and make sure you will not mind before ordering.
