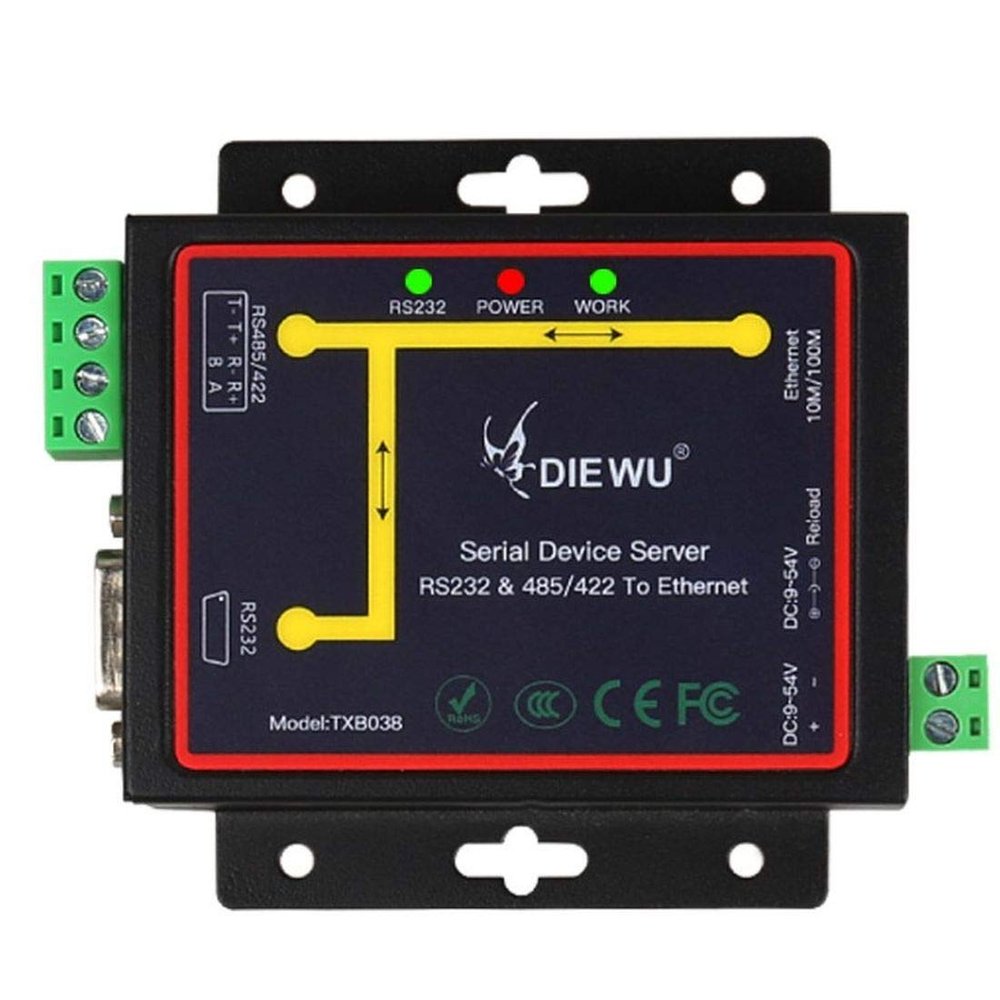

DIEWU RJ45 to RS232 RS485 RS422 Industrial Male Converter TCP/UDP Serial RS232 RS485 to Ethernet Device Server

Description

• Port number: 1 port 10/100M Auto MDI-MDIX RJ45?1port RS232,1port RS485/422
• Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
• Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
• Data rate: 10/100M
• Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

Description:
Model number: TXB038
Chipset: IP210
Port number: 1 port 10/100M Auto MDI-MDIX RJ45?1port RS232,1port RS485/422
Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate: 10/100M
Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: Link/Act, Power, System, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 86*84*25mm
Power Input: DC9V-54V
Power Consumption: Max1.8W
Environment
Operating Temperature: -10 ?-55 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)
Other functionRS485 support full duplex and half duplex
Build load default key

3.1 Device Default Parameters:
ID: admin
Password: system
IP address: 192.168.2.1
Operation mode: TCP server
Transmission Mode: RS232
Baud rate: 57600bps
UART parameters: 57600,8,N,1
Local port
TCP:23
UDP:21

4?Load default
1. Power off the device
2. hold the load default button.
3. power on the device, hold the button for 10 seconds, then release default button
