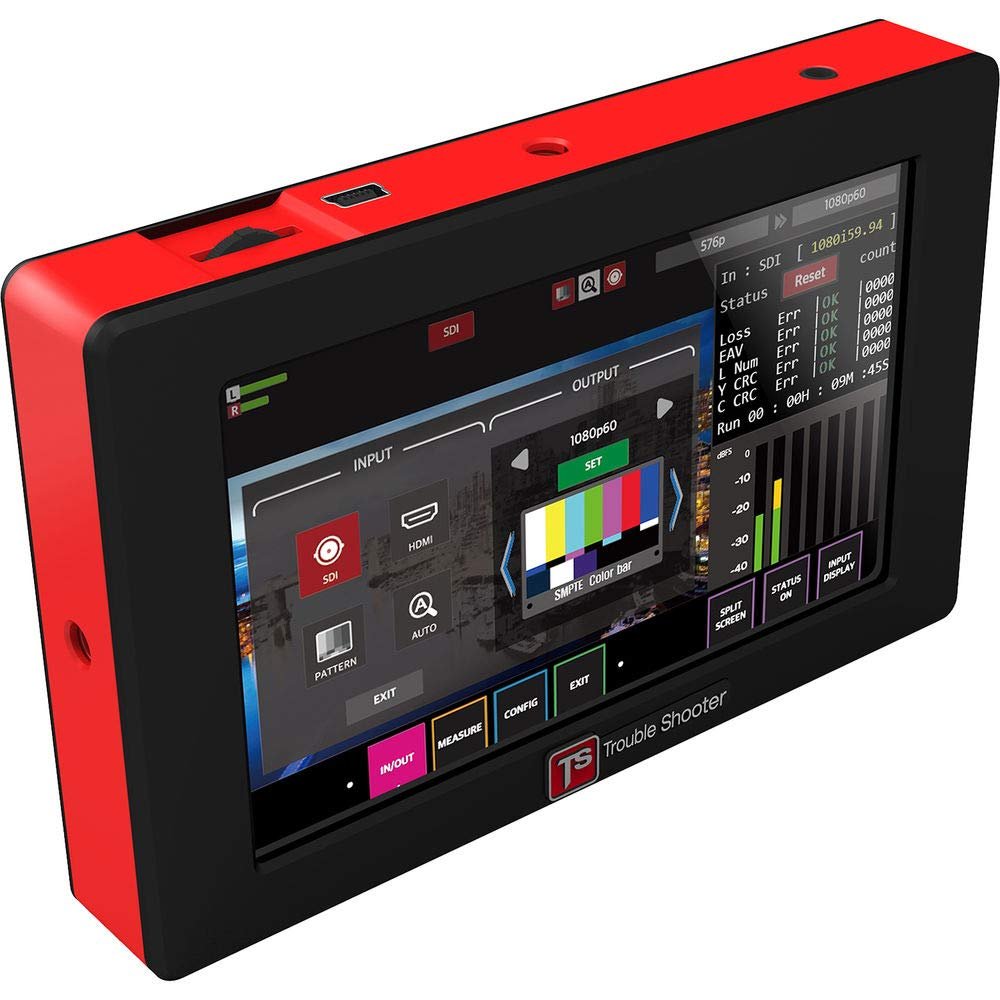

DIGITAL FORECAST Bridge X TS Mini HDMI Adapter

Description

• Signal Test & Conversion in Compact Form
• SDI/HDMI Up/Down/Cross-Conversion
• Signal Integrity Checks
• Audio Level Metering up to 8 Channels

In a compact and portable form factor, the DIGITAL FORECAST X_TS mini bridge provides SDI/HDMI up/down/cross conversion and signal metering functions for signals up to 1080p60. The lightweight device enables signal integrity checks, up to 8 channels of audio level measurement, and simultaneous generation and measurement of test patterns. Up to 1080p60 resolution input and output is supported via 3G/HD/SD-SDI and HDMI 1.3 connections. An intuitive workflow through the 5" screen allows you to select the type of signal to display, monitor the waveform, vectoroscope, jitter and other analysis factors, set the resolution of output and frame rate, and more. The signal can be viewed in standard full screen mode or in split screen mode where the video is displayed on the left side and measurement details on the right. A power supply with international plug adapters is included, but optional L-series and LP-E6 battery plates are also supported on the rear for portable use (see Accessories tab A mounting thread is provided). 1/4"-20 at the bottom. Key Feature . Up/down/cross conversion between SDI/HDMI and HDMI/SDI signals. Signal integrity checks. Signal integrity checks. . Audio level measurement up to 8 channels. Test pattern generator (8 types). Simultaneous test pattern generation and measurement. 3G/HD/SD-SDI and HDMI 1.3 inputs and outputs. I/O resolution up to 1080p60. 5" LCD with 800 x 480 resolution. Audio monitoring headphone output. SDI input eye pattern diagram. SDI signal integrity check (Loss, TSR, CRC, line number ). HDMI signal integrity check (Loss, resolution, HDCP). Indicates if HDCP is activated. 1/4" mounting thread - 20. Power supply included. 7-17 VDC operating range. Compatible with optional L-series and LP-E6 battery plates.
