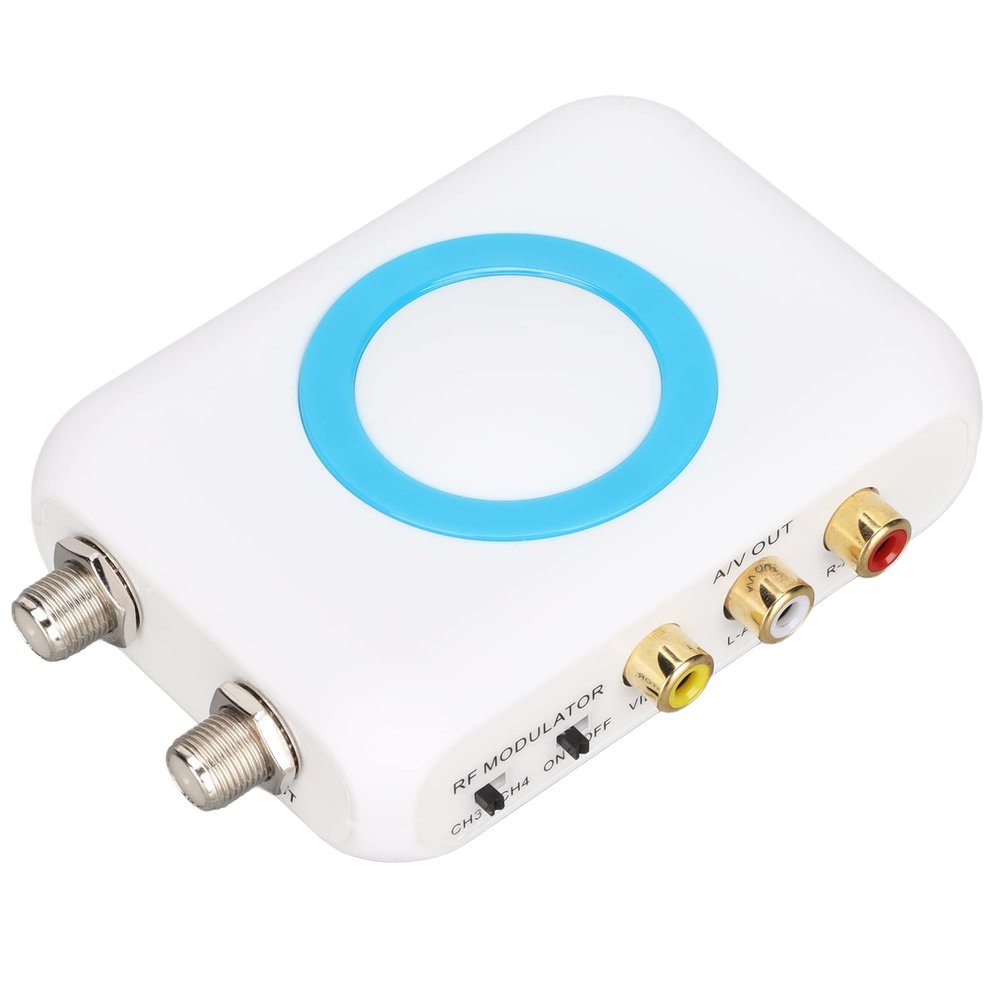

Dilwe HDMI RF Modulator, Support PAL/NTSC Format Output to RF Modulator 1080P PLL Control of VHF Operating Frequency for Home TV Replacement

Description

• HDMI RF Modulator Plug and PlayThe HDM66 HDMI modulator support NTSC and PAL TV format output, Frequency Range : PAL55.25MHz/62.25MHzNTSC61.25MHz/67.25MHz, no driver installation, portable, flexible, plug and play.
• Parameters: PLL control of VHF operating frequency, HDMI input, A/V output( female), RF output.
• Applicable: The HDM66 HDMI modulator has fine workmanship, quality assurance, suitable for your local CATV system. Support HDMI 1.3 and HDCP 1.3
• and The HDMI modulator is made of ABS material, , long service life. The CATV modulator has professional manufacturing, stable performance, high reliability.
• Simple : Step 1: Connect the USB output power adapter; Step 2: Set the channel to CH3 or CH4, and the modulator to ON. (Set to OFF, RF part does not work); Step 3: Connect the RF input and output; Step 4: Power on the HD Multimedia Interface device and connect the HDMI input ; Step 5: Turn on the TV to CH3 or CH4

How to Use:
Step 1: Connect the USB output power adapter
Step 2: Set the channel to CH3 or CH4, and the modulator to ON. (Set to OFF, RF part does not work)
Step 3: Connect the RF input and output
Step 4: Power on the HD Multimedia Interface device and connect the HD Multimedia Interface input
Step 5: Turn on the TV to CH3 or CH4
Please strictly follow the steps!

Specification:
Item Type: Modulator
Material: ABS
Model: HDM66
TV : PAL/NTSC
Frequency Range: PAL: 55.25mhz / 62.25mhz NTSC: 61.25MHz / 67.25MHz
Output Level: 805dBuV
Sound System: M=4.5MHz, B=5.5MHz
Input Port: HD Multimedia Interface
Output Port: Female Header
Rf Input: F Female
Rf Output: F Female
Input Resolution: 1080P / 1080I / 720P / 576P / 576I / 480p
HD Multimedia Interface Version: 1.3
HDCP Version: 1.3
Input Voltage/Current: DC 5V/500mA (min)
Operating Temperature: 0~+40

Package List:
1 x Modulator
1 Cord
