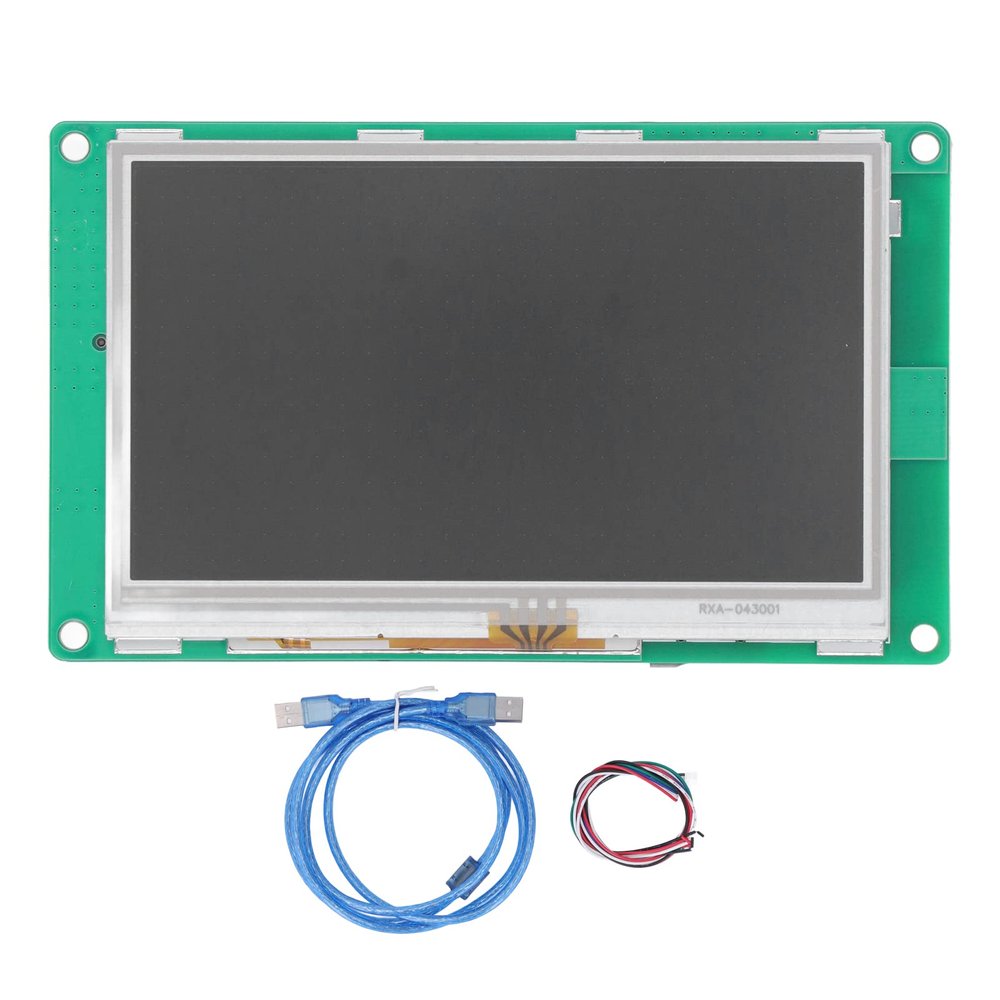

Display Module, Module 4.3in TFT LCD RS232 RS485 Serial Port Display Board for Control 2W, Single Board Computers

Description

• More Than One: Comes with processors, drives, memory, software, pre installed command set programs and so on for good solution.
• Clear Display: Clear in colour and high in resolution, the 4.3in display module enables better viewing and as well.
• Smart Control: Allows for easy control through single chip microcomputer with RS232 and RS485 ports, saving the time and labour.
• With Programs: A TFT LCD module with 4 kinds of simple hexadecimal commands, making the development much simpler.
• Easy to Install: Designed to have a light weight and a compact size, the convenient installation can be finished in minutes.

Specification:
Item Type: Module
Model: WS-L043
Display: 4.3in TFT LCD
Resolution, Px: 480x272
Colour: 260,000
Brightness: 300 cd/m2
Backlight: LED
Life: 20,000 hours.
: 4 wire industrial resistive with 4H surfaces hardness.
CPU: 32 bit 600MHz main frequency, ARM9 built in 32MBDDR memory.
Memory: 128Mbyte SPI NAND FLASH
RTC: Built in real time clock.
Power Off Data Save: Supports
USB Port: 1pc USB 2.0 device port.
Program Download Method: USB, memory card download.
Communication Port: COM1: RS485; COM2: RS232.
Rated Power: 2W
Rated vVoltage: DC 24V
Power pProtection: With +/-2KV thunder capability.
Allowable Power Loss: <5ms
CE and ROHS Certification: Conforms with EN61000-6-2: 2005; EN61000-6-4; 2007 standard: thunder +/-2KV, group pulse +/-4KV; electrostatic discharge +/-6KV; electrostatic air discharge +/- 10KV.
Working Temperature: -20~50
Storage Temperature: -40~70
Ambient Humidity: 10~90%, non condensing.
Shock 10-25Hz in X, Y, Z directions, 2g/30 minutes.
Cooling Method: air cooling.
Effective Display Area: Approx. 95.04 x 53.86mm / 3.74 x 2.12in
Hole Size: Approx. 105.4 x 67.2mm / 4.15 x 2.65in

Package List:
1 x Module
2 x Connecting Cable
1 x Download Cable
