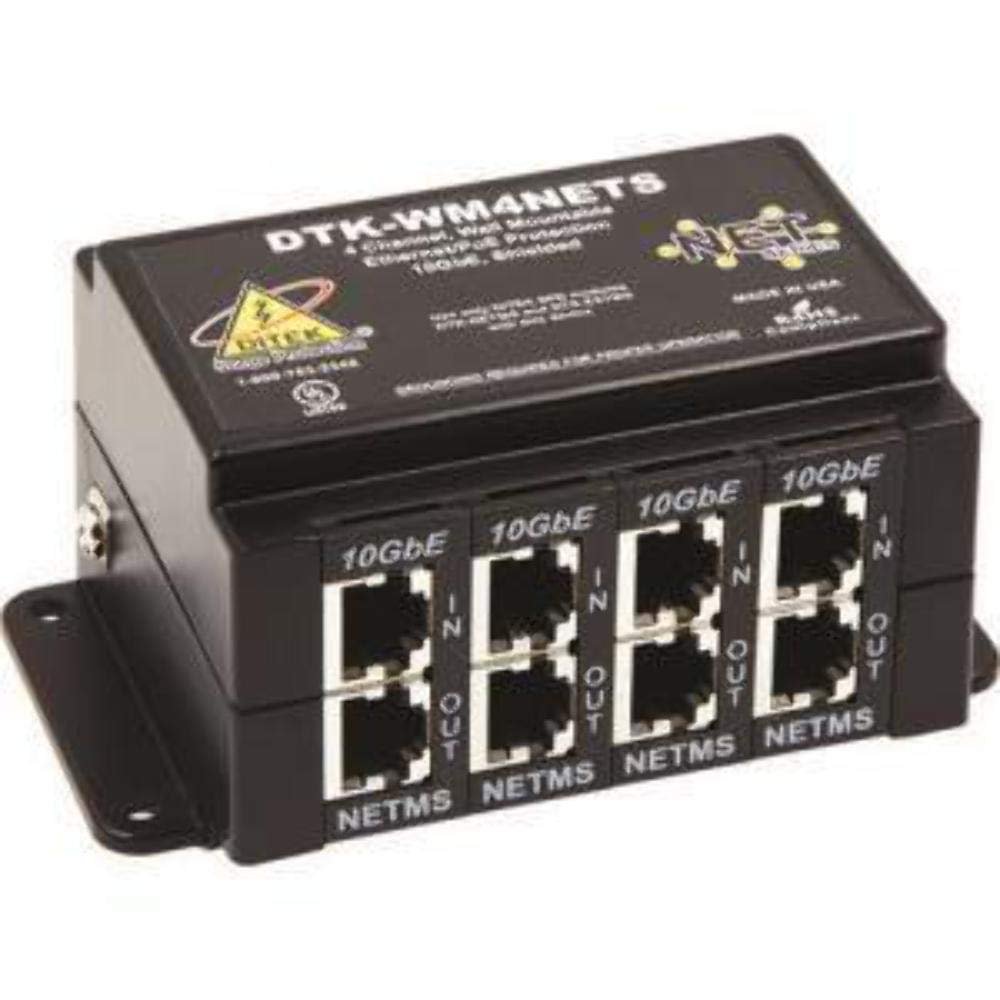

Ditek DTK-WM4NETS 4 Channel Wall Mount Poe Ethernet Surge Protector

Description

• Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
• Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
• Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
• PoE Plus and HiPoE ready for high-wattage applications
• Complies with all IEEE Power over Ethernet standards

Ditek DTK-WM4NETS Wall Mount 4 Channel Network Surge Protector; Uses SAD and GDT Technologies to Provide Optimal Protection for Shielded Ethernet, PoE, PoES and PoE Extender Circuits

The DTK-WM4NETS is a 4-channel, wall mount surge protector that uses state-of-the-art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender* circuits. It supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-WM4NETS is ideal for smaller installations where Ethernet cabling feeds require protection before entering network switches.

Key Features
- Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
- Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
- Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
- PoE Plus and HiPoE ready for high-wattage applications
- Complies with all IEEE Power over Ethernet standards
- UL497B Listed
- Optional modules available to support PoE Extender Circuits

Specifications
- Service Voltage: <60V
- Protection Modes: Common (All), Differential (All)
- Clamping Voltage: Common Mode: 75V
- Differential Mode: 7.22V
- Surge Current Rating: 20kA / Pair
- Power Handling: Up to 144 Watts
- Data Rate: Up to 10GbE
- Connection Method: Shielded RJ45 Female In/Out
- Housing: ABS
- Operating Temperature: -40F 158F (-40C 70C)
- Maximum Humidity: 95% non-condensing
- Dimensions: 4.75"L x 2.96"W x 2.36"H (121 mm x 75 mm x 60 mm)
- Weight: 8.8 oz (0.25 kg)
