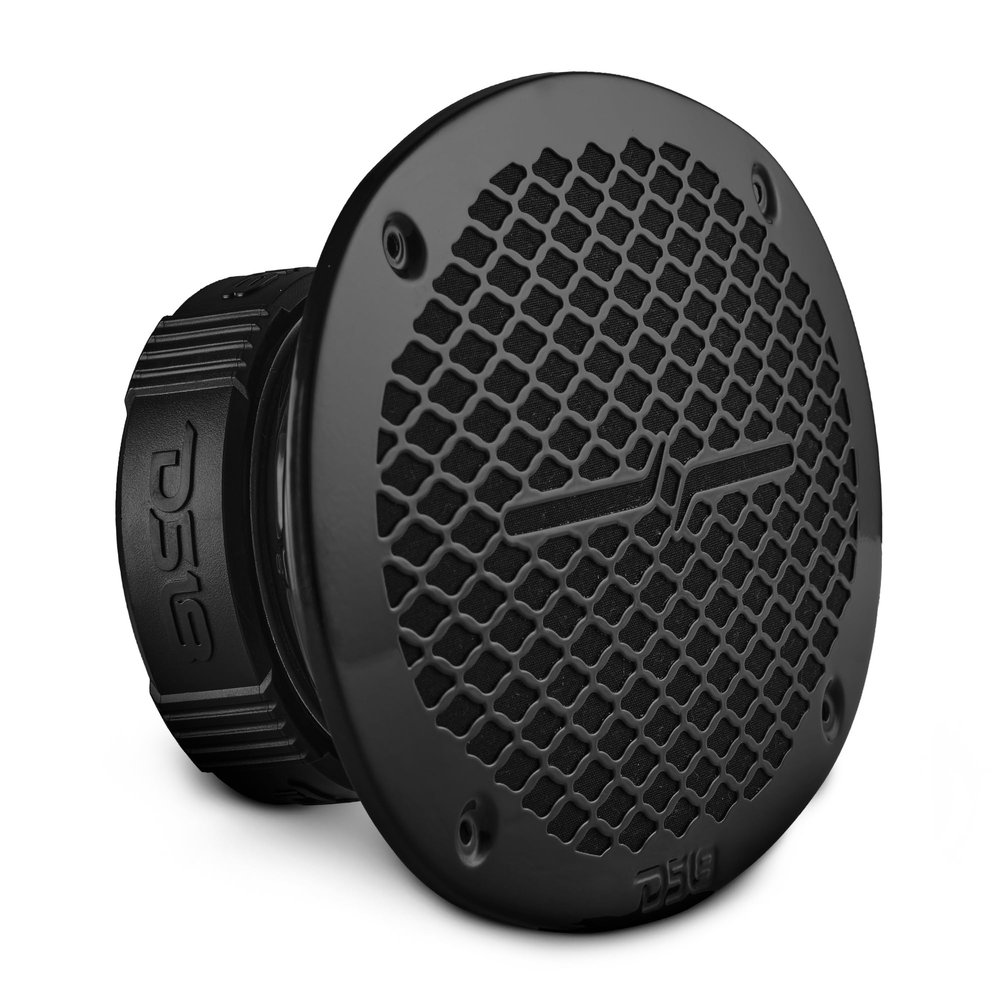

DS18 PRO-ZT Pro Audio Coaxial Midrange Speakers with Built-in Bullet Tweeter, 4-Ohms, Water Resistant - Black Metal Mesh Grill Included (1 Speaker) (6x9 inches)

Description

• 2-WAY SPEAKER - DS18 has designed the perfect speaker that combines both a midrange and a tweeter, giving you a great balance and value in one efficient package.
• POWER YOU CAN COUNT ON - The PRO-ZT69 delivers an impressive 550W Max Power with 275W RMS at 4 Ohms, enough to tackle a full range of audio.
• HIGH-QUALITY VOICE COIL - 1.5 high-temperature Kapton voice coil can handle extreme heat and maintain its structural integrity meaning long life out of your speakers.
• UNMATCHED ENGINEERING - The PRO-Z line of speakers come with a kapton voice coils, steel midrange basket, aluminum tweeter diaphragm, and CCAW winding material all at an affordable price.
• 6x9" MIDRANGE WITH NEODYMIUM MAGNET - Settle for nothing but the best with neodymium magnets that produces a wider range of tones and can handle tremendous power at high volumes.

PRO-ZT69

General

Nominal Diameter: 6 x 9"
Nominal Impedance: 4 Ohms
RMS Power Handing: 275 Watts
MAX Power Handing: 550 Watts
Sensivity (1w/1m): 98dB
Frequency Response: 60Hz - 22KHz
Recommended Hi Pass Crossover: 80Hz

Midrange

Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 27 oz

Tweeter

Voice Coil Diameter: 1"
Voice Coil Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium

Thiele & Small Parameters

Equivalent Volume / Vas: 14.6927 LTR
Excursion / Xmax: 1.6mm
Free Air Resonance / Fs: 85Hz
Mechanical Factor / Qms: 3.906
Electrical Factor / Qes: 0.639
Total Factor / Qts: 0.602
DC Resistance / Re: 3.2 ohms

Measurements

Overall Diameter: 260 x 180mm (10.24 x 7.09")
Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91")
Mounting Depth: 85 mm (3.35")
Overall Depth: 97 mm (3.81")
