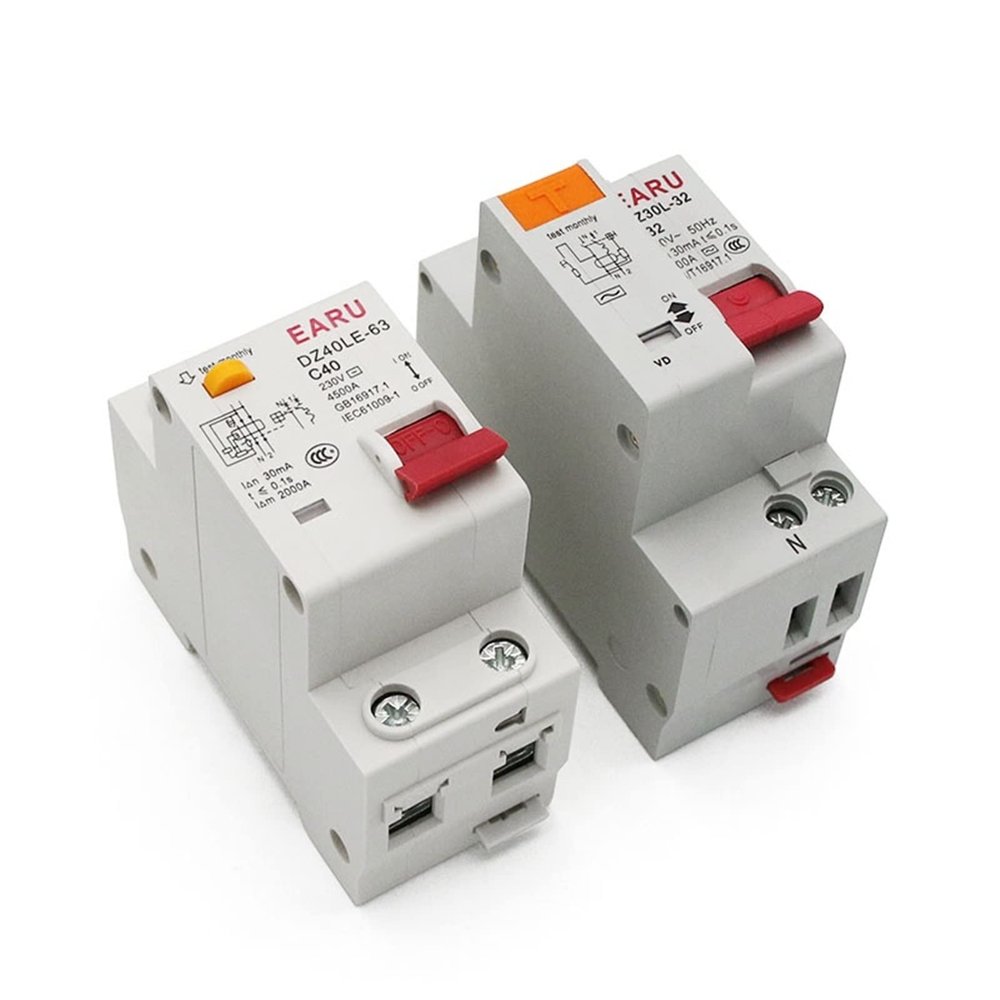

DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker with Over and Short Current Leakage Protection RCBO MCB 6-63A(10A)

Description

• Surge Protectors
• 1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.
• 2)Contact position indication.
• 3)Provides protection against indirect contact by human body.
• 4)Provides complementary protection against direct contact by human body.
• 5)Effectively protects electric equipment against insulating failure.

Surge Protectors
DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A
Construction and Feature
1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.
2)Contact position indication.
3)Provides protection against indirect contact by human body.
4)Provides complementary protection against direct contact by human body.
5)Effectively protects electric equipment against insulating failure.
6)Equipped with switched neutral and phase pole .
7)Provides protection against over-voltage.
8)Provides comprehensive protection to household and commercial distribution systems.

9)Type: Electronic type
10)Residual current characteristics: AC
11)Pole No.: 1P+N
12)Tripping curve: C
13)Rated short-circuit capacity: 4.5KA
14)Rated Current(A): 6,10,16,20,25,32,63
15)Rated Voltage:230V AC
16)Rated Frequency:50/60Hz
17)Rated residual operating current(mA): 30 (63A is 15mA)
18)Tripping duration:instantaneous under or equal 0.1s
19)Electro-mechanical: pillar terminal with clamp.
20)Terminal Connection Height: H1=16mm ,H2=21mm
21)Over-votage tripping: 280V5%
22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 .
23)Installation: On symmetrical DIN rail 35mm, Panel mounting
Accessories
24) S2 Shunt Tripper
25) U2+O2 Over-voltage and under-votage tripper.
Product's advantage
1 , Our products have the guarantee period of 36 calendar months.
2, Our Products have an excellent ratio between and quality , you can possess them by competitive and high
quality .
3, The fast and flexible production form aim at the customer require.
4, The deliveries exactly in accordance with customer orders.
5, The fast transportation.
