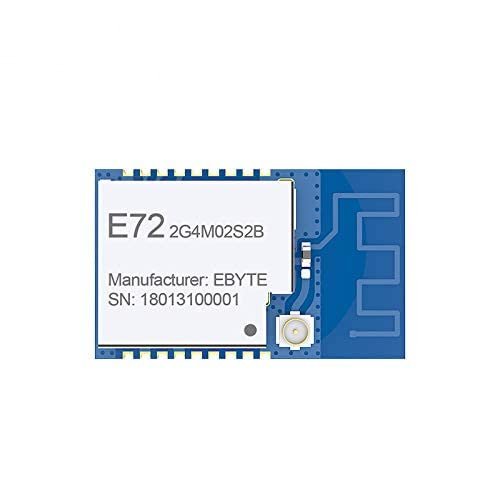

EBYTE E72-2G4M02S2B CC2640 2.4 ghz Bluetooth Module Wireless rf Module IO Port Low Power 2dBm Bluetooth 4.2 2.4GHz Receiver

Description

• Application? Home security alarm and remote keyless entry; ?Wireless alarm security system; ?Building automation solutions; ?Wireless industrial-grade remote control; ?Health care products; ?Advanced Meter Reading Architecture(AMI); ?Automotive industry applications.
• Features? The measured communication distance can reach 150m/500 m; ?Maximum transmission power of 100mW, software multi-level adjustable; Built-in BLE 4.2 protocol stack
• Built-in 32.768kHz clock crystal oscillator; ?Support the global license-free ISM 2.4 GHz band; ?Built-in high performance low power consumption Cortex-M3 and Cortex-M0 dual core processor; Rich resources, 128KB FLASH, 28KB RAM
• Support 1.8V~3.6V power supply, power supply over 3.3 V can guarantee the best performance; Industrial grade standard design, support -40 ~ 85 C for working over a long time
• IPEX and stamp hole optional, good for secondary development and integration.

[IC] : CC2640 [Frequency] : 2.402~2.480GHz [Protocol] : BLE 4.1 [Distance] : 0.3km [Interface] : UART [Introduction] : E72-2G4M05S1B is a self-developed, small-size, SMD, bluetooth wireless module based on CC2640 of Texas Instruments. The CC2640 integrates 128KB of in-system programmable flash memory, 8KB of buffered static RAM (SRAM) and BLE 4.2 wireless communication protocol. Because of its unique ultra-low power sensor controller, it is ideal for connecting external sensors. The analog and digital data are collected autonomously while the rest of the system is in sleep mode. Thanks to its built-in dual-core low-power processor, users can build a complete system based on their own modules. We used a 24MHz industrial grade high precision low temperature drift active crystal. Since this module is a SoC module, it needs to be programmed by user before it can be used. [Application] Widely used in various occasions Wearable electronics Smart home Smart lock RFID Home remote control Temp/humidity sensor
