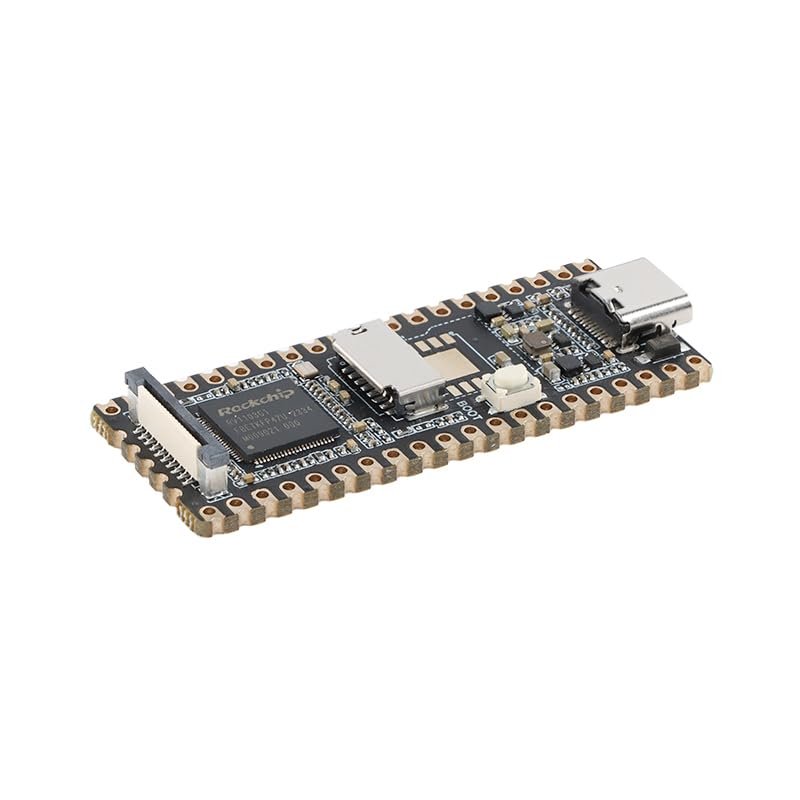

EC Buying Luckfox Pico RV1103 Micro Linux AI Development Board Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors UART SPI I2C USB-C

Description

• Unlock the power of AI development with Luckfox Pico RV1103 Micro Linux Board featuring ARM Cortex-A7/RISC-V MCU/NPU processors for efficient coding and fast start-up
• Experience seamless connectivity with UART, SPI, I2C, and USB-C interfaces on this versatile development board, allowing for quick and easy debugging
• Enjoy high-definition image processing with the integrated ISP processor, supporting HDR, WDR, and noise reduction for crystal-clear visuals on the go
• Maximize storage space with intelligent encoding modes and adaptive stream saving, saving over 50% bit rate compared to traditional methods for smaller yet clearer images
• Elevate your projects with the NPU, providing high computing precision and up to 1.0 TOPS with int4 for enhanced AI capabilities

Processor: Cortex A7@1.2GHz + RISC-V
Neural Network Processor (NPU): 0.5TOPS, supports int4, int8, int16
Image Processor (ISP): Input 4M @ 30fps (Max)
Memory: 64MB DDR2
USB USB 2.0 Host/Device
Camera interface: MIPI CSI 2-lane
GPIO: 24 GPIO pins
Network port: 10/100M Ethernet controller and embedded PHY
Default storage medium: micro storage card holder

Single core ARM Cortex-A7 32 bit core with integrated NEON and FPU
Built-in Rockchip self- developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self. developed third: generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast stant-up, supports 250ms fast picture capture and loading AI model librany at the same time to realize face recognition "in one second"
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Suitable for:
Robots & Drones
Smart Transportation Devices
Smart Home Devices
Industrial AutomationDevices
Smart Monitoring Devices
New Retailing
