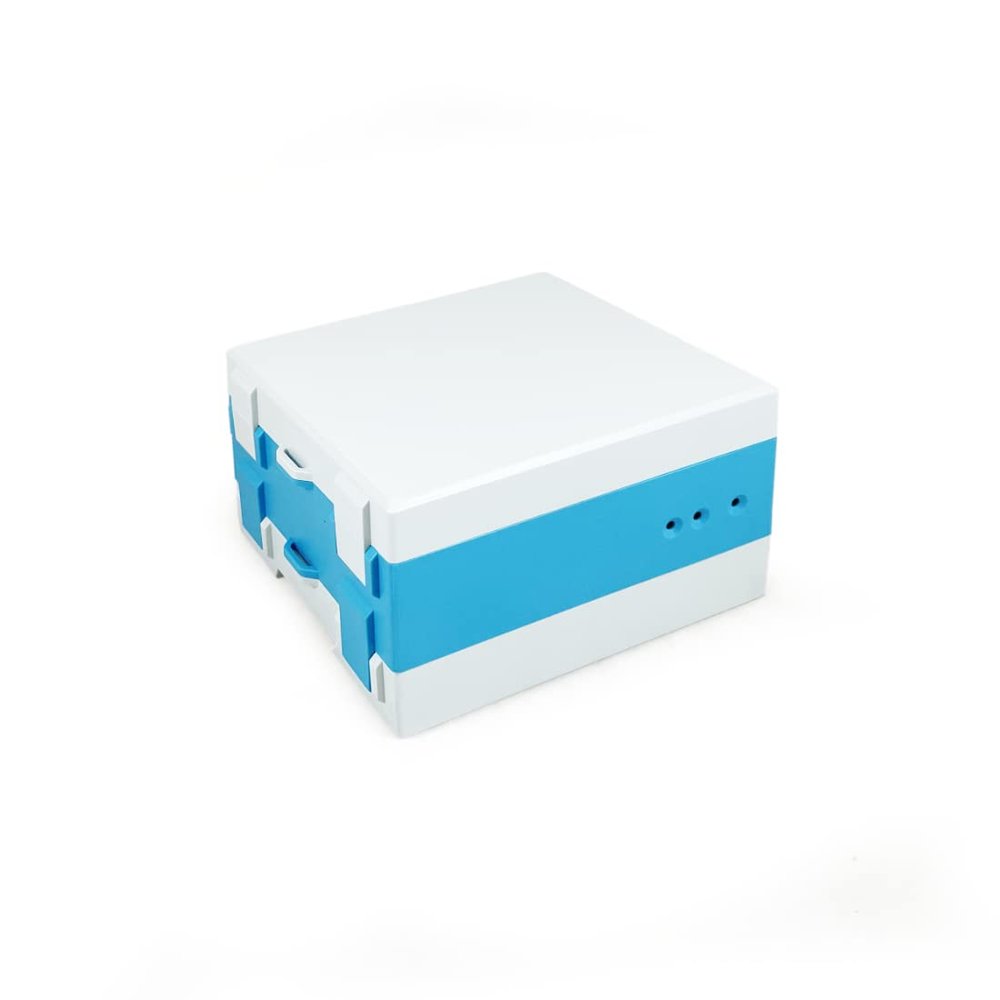

EKM Push3 - Cloud Based Meter Data System

Description

• Description: Instantly Push Meter Data to the Web or log Data Locally!
• Meter Support: v.3, v.4, and v.5 Omnimeters from EKM Metering Inc.
• Connections: Ethernet or WiFi, RS-485, Power, Micro SD Card or USB Storage (optional)
• Data: Reads Meters as Fast as Possible (up to once/second), One Minute Data Send Interval (to the cloud)
• Features: Meter Settings and v4/v5 Omnimeter Relay Control, On-board Data Storage, New Online Account Portal, No Limit of Meters Per Gateway
• Included: Push3 gateway, pluggable terminal blocks, small screwdriver, 16GB Micro SD card, 12VDC Power Supply
• Free Cloud-Based Data, Control, Triggers, and Billing

he Push3 gateway handles all meter communication and inserts the reads into our cloud database. Your data is then freely available from a known, fixed location in the cloud, by way of your unique access key. The data can be accessed via our Open APIs for free. Yes, the data is provided for free. There are no recurring fees for the Push3 data!
Version 3 of the EKM Push system includes some new features. It is natively WiFi enabled so it can connect to the internet via WiFi or ethernet.
The Push3 is able to send settings commands to the Omnimeters, so changing things like CT ratios, resetting Max Demand, or programming TOU tariffs is easily done online. The v.4 and v.5 Omnimeter relays can also be controlled with Push3, so turning things on/off is possible. Push3 also has on board data storage via a Micro SD card. This allows the gateway to log data as a stand alone device, or as simply a back up when the internet goes down for any reason. Once the internet connection is reestablished, data is uploaded to the cloud.
There is nothing like this available on the market; whether you are metering a single cottage or an international electric car charging network, with tens of thousands of metered points, we believe the Push3 will be the backbone of the next generation of metering. It represents an entirely new paradigm for meter data management, and control. Our intent is to provide our customers with FREE, seamless, and unrestricted access to their data in real time. What we are offering is the most robust and capable hardware set available, with easy and and reliable access to your data. Again, this service is free, with no monthly or annual fees.
Up to 128x Omnimeters can be daisy-chained together and connected to each Push3 gateway. However, an unlimited number of Omnimeters can communicate with a single Push3 gateway by using our 485Bee radio modules, which create a mesh network for wireless communication between the Omnimeters and the Push
