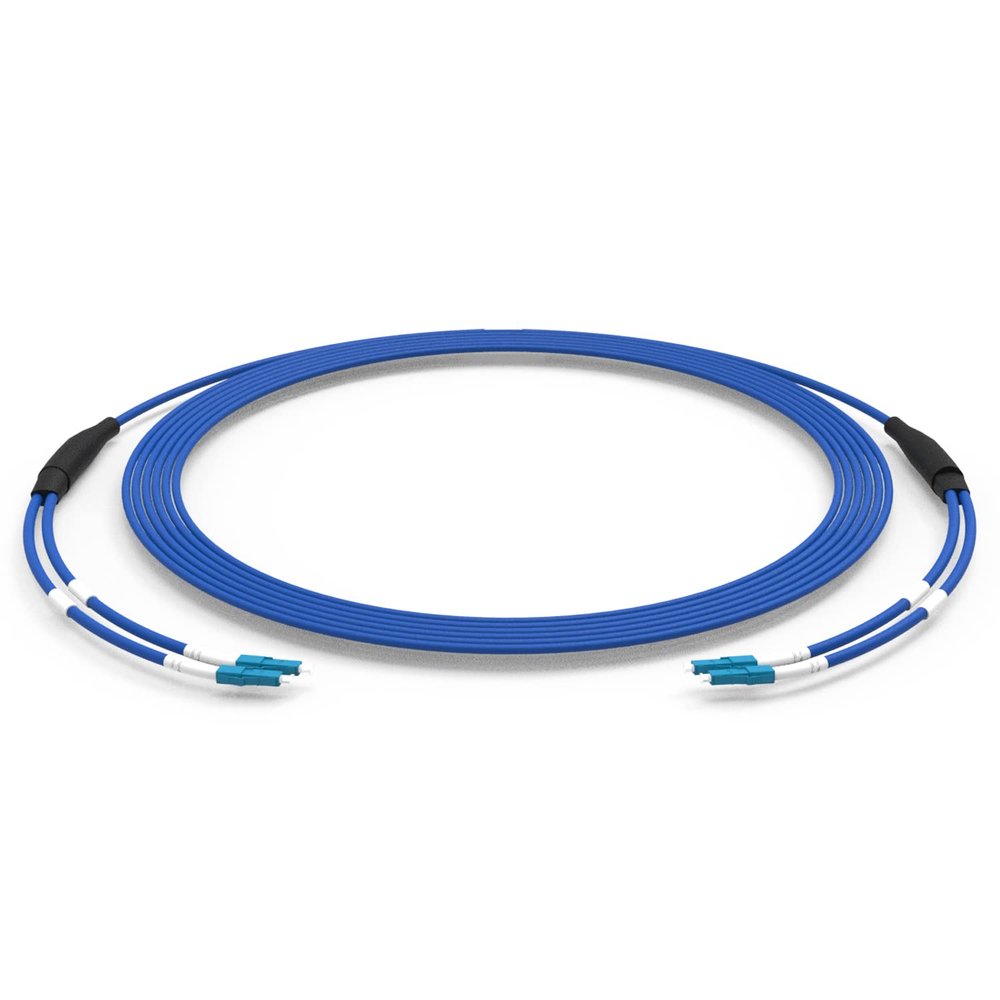

E-link 10M/33ft LC to LC Outdoor Armored Fiber Patch Cable, Single Mode Duplex Fiber Optic Cable Jumper Optical Patch Cord, 9/125m, OS2, LSZH, 3.0mm, 10Meter 33ft

Description

• LC to LC Jumper Optic Patch Cord10 Meter(33ft) Outdoor Armored LC to LC Duplex Fiber Patch Cable, Single Mode 9/125 Corning fiber optic cable, LSZH, zip-cord reinforced, 3.0mm Diameter, 1.25mm Ceramic Ferrule, Fiber Patch Cable, Ultra Optical Fiber combines the benefit of industry-leading attenuation and improved performance, all in one fiber, along with being fully backward compatible with installed base of legacy single-mode fibers.
• Outdoor LC/UPC to LC/UPC Single mode Duplex Fiber Optic Patch CableThis OS2 fiber patch cable body is made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction <0.2). Low Friction Cables are the ideal solution for wiring premises. The stiffness allows the cable to be installed by pushing as well as by the more conventional pulling method. These cables can even be used in congested conduits.
• High Reliable LC-LC Fiber: High Rated OS2 9/125m Fiber and Cladding, which is Insensitive to bending, Easy peeling, Easy welding, ensures small optical loss and stable transmission. Duplex Connector OS2 9/125m, Insertion Loss0.3dB, Return Loss 50dB. This full-spectrum fiber has bend performance that exceeds the ITU-T Recommendation G.657.
• Widely Used: LC Duplex fiber Cable single mode is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds,Local Area Networks, Data Center, Premise installation, Wide Area Networks, Commercial and so on; Audio, video, SFP data services supported and Connects to SFP Transceivers Ethernet Switches and Media Converters. Education, Corporate, Military/Defense, Government, Healthcare, Finance.
• Cost Effective & Durable: Great flexibility and durability with the a LSZH housed in a robust outer jacket as the armor to protect the fiber glass inside; Built to Last Commercial Grade Construction, LC duplex fiber optic connectors, Compatible with all standard fibre optic equipment and connectors,They are suitable for outdoor and indoor use.
• Note: Outdoor Armored LC Duplex Fiber Optical Cable is with weatherproof cover for sunshine and rain, but we do not recommend to bury or line overhead directly. It Compatible with all standard fibre optic equipment and connectors.

Overview:
33ft 10m LC to LC Outdoor Armored Duplex 9/125 SM Fiber Optic Cable Jumper Optical Patch Cord Singlemode 10Meters 33ft LC-LC
Specification: Connector: LC/UPC to LC/UPC Fiber Core: OS2 9/125m Wavelength: 1310/1550nm Fiber Grade: G.657.A2(Compatible G.652.D) Fiber Count: Duplex Cable Diameter: 3.0mm Ferrule: Ceramic Ferrule Length: 10M (33ft) Insertion Times: >1000 times Optical Cable Outer Diameter: 7.0mm Insertion Loss: 0.3dm Return Loss: 50dm Cable Jacket: LSZH with Low-Friction Characteristic Tensile Load: 120/225N(Long/Short Term) Operating Temperature: -40-85
Key Features:
10Meters,Outdoor Armored Cable,9/125, LC-LC ,Duplex,Single mode Compatible with all standard fibre optic equipment and connectors Ceramic connectors ensure low signal loss, and high reliability All our products are 100% new fiber optic cable of carrier-class quality ,and 100% test before delivery

Low Insertion Loss & Low Attenuation
Assembled with Duplex, small form factor, 1.25mm ceramic ferrule, LC connectors designed for compact, high cable density environments. Connectors include pre-installed Duplex LC clips Insertion Loss0.3dB, Return Loss 50dB.
Core/Cladding Parameter
Corning 9 micron diameter fiber core/125 micron diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
